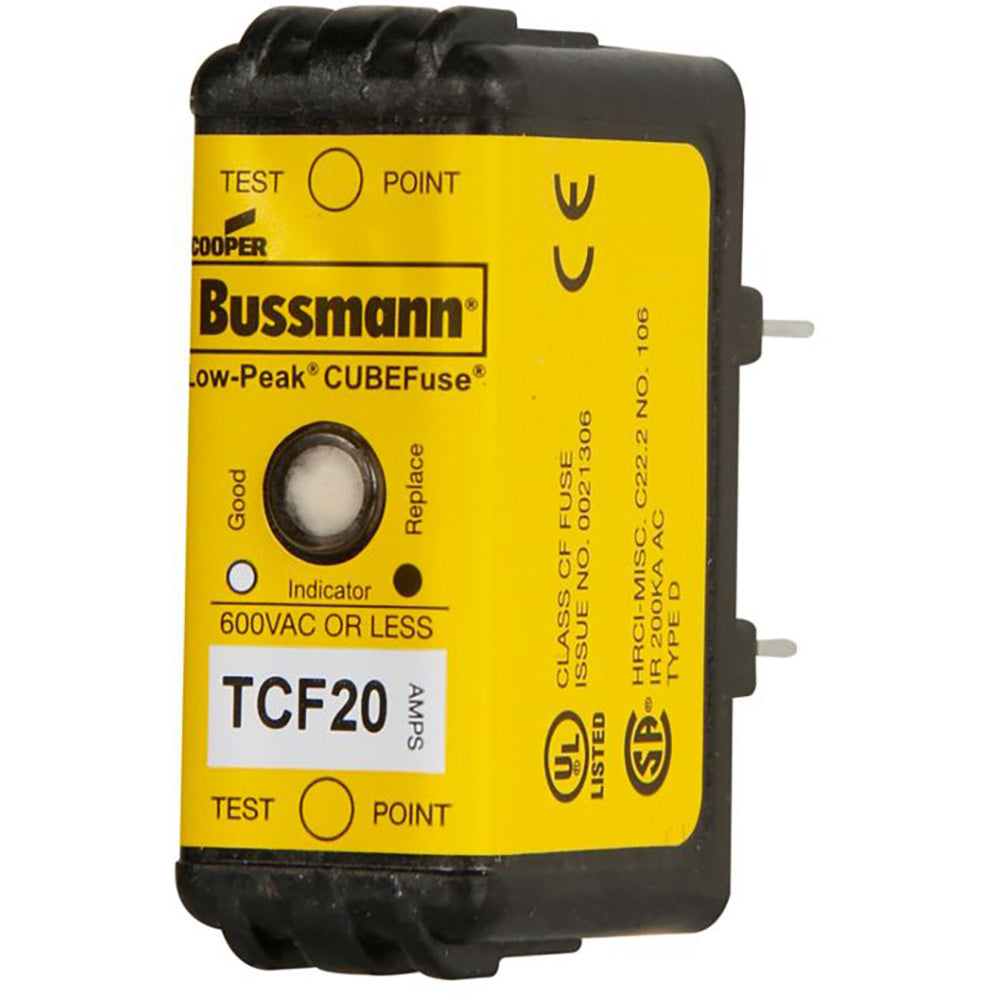

Bussmann TCF20 - CF Time-Delay Fuse 20A 600V (300kA AIC)

Bussmann
Price
Save $1,700.43
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann TCF20 is a low-voltage, time-delay fuse from the CUBEFuse family designed for branch circuit and feeder protection in industrial electrical systems. It provides a 20A current rating and 600V voltage rating with a high 300kA interrupting capacity, utilizing a single-barrel, current-limiting design to safely clear faults. The compact fuse measures 1.88 in x 1 in x 0.75 in (L x H x W) and weighs 0.044 lb, constructed to meet Class CF specifications. It is certified to CE, UL Special Purpose Guide JFHR, and CSA Class 1422-02 standards, ensuring reliable performance in demanding applications such as motor protection and panelboards.

Key Features & Specifications
  • Type: TCF, Time-Delay (TD), Current-Limiting, Single-Barrel Fuse
  • Voltage Rating: 600V AC/DC
  • Current Rating: 20A
  • Dimensions: 1.88 in x 1 in x 0.75 in (Length/Depth x Height x Width)
  • Weight: 0.044 lb
  • Standards: CE, UL Special Purpose Guide JFHR, CSA Class 1422-02
  • Class Rating: CF
  • AIC Rating: 300kA @ 600V
  • Family: CUBEFuse
  • Country of Origin: China


Product Identification
  • UPC: 051712615013
  • GTIN: 00051712615013
