Bussmann TCF100 - Class CF Time-Delay Fuse, 100A 600V

Bussmann
Price
Save $2,441.94
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

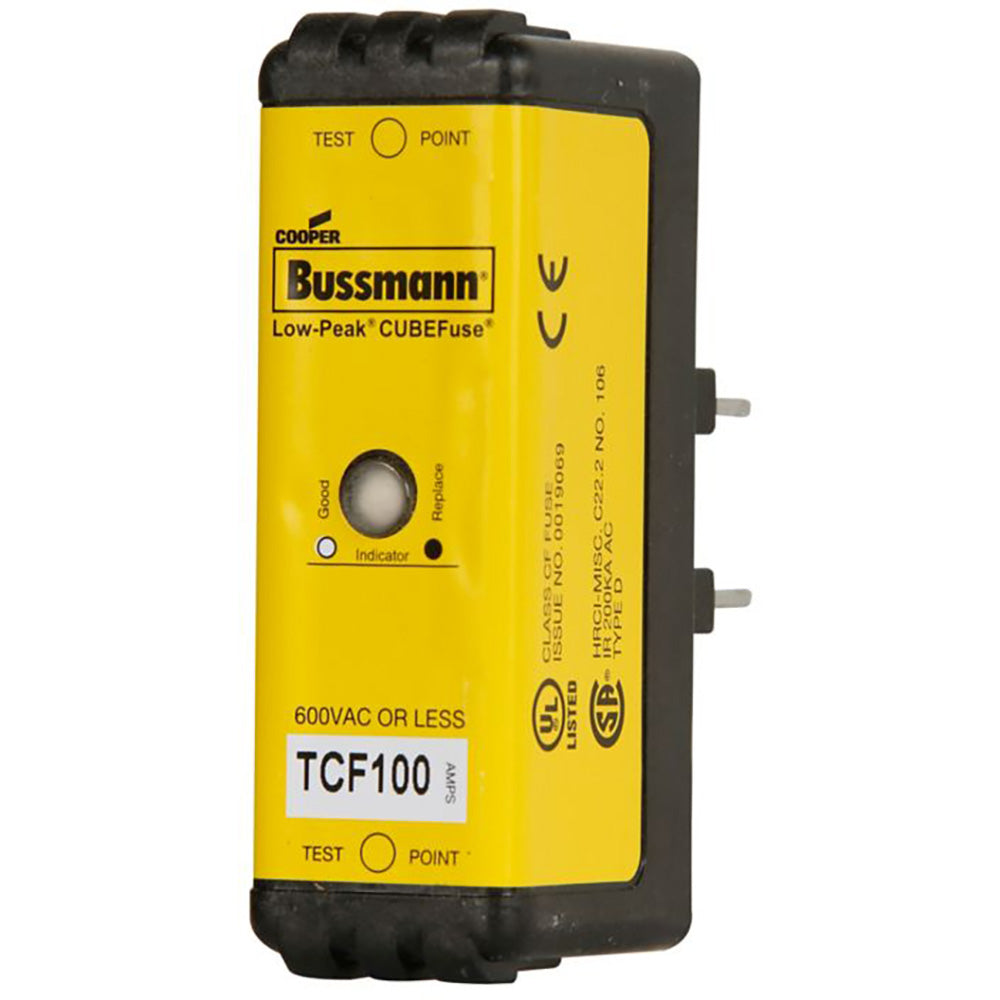

Bussmann TCF100 is a low-voltage, time-delay fuse designed for protecting industrial control circuits and equipment from overcurrent and short-circuit faults. It provides a 100A current rating and a 600V voltage rating, with a compact physical footprint of 3.01" x 2.125" x 1" and a weight of 0.284 lb. The fuse is constructed as a single-barrel, Class CF device, certified to CE, UL (Special Purpose Guide JFHR), and CSA Class 1422-02 standards, and offers a high 300kA interrupting capacity at 600V. Its time-delay (TD) characteristic makes it suitable for applications with inrush currents, commonly used in motor control centers, industrial panels, and power distribution systems.

Key Features & Specifications
  • Type: Low-voltage, time-delay (TD), single-barrel fuse
  • Voltage Rating: 600V
  • Current Rating: 100A
  • Dimensions: 3.01 in x 2.125 in x 1 in (L x H x W)
  • Weight: 0.284 lb
  • Class Rating: CF
  • AIC Rating: 300kA @ 600V
  • Certification: CE, UL Special Purpose Guide JFHR, CSA Class 1422-02
  • Family: CUBEFuse
  • Velocity: Time-Delayed (TD)
  • Barrels: 1


Product Identification
  • UPC: 051712618182
  • GTIN: 00051712618182
