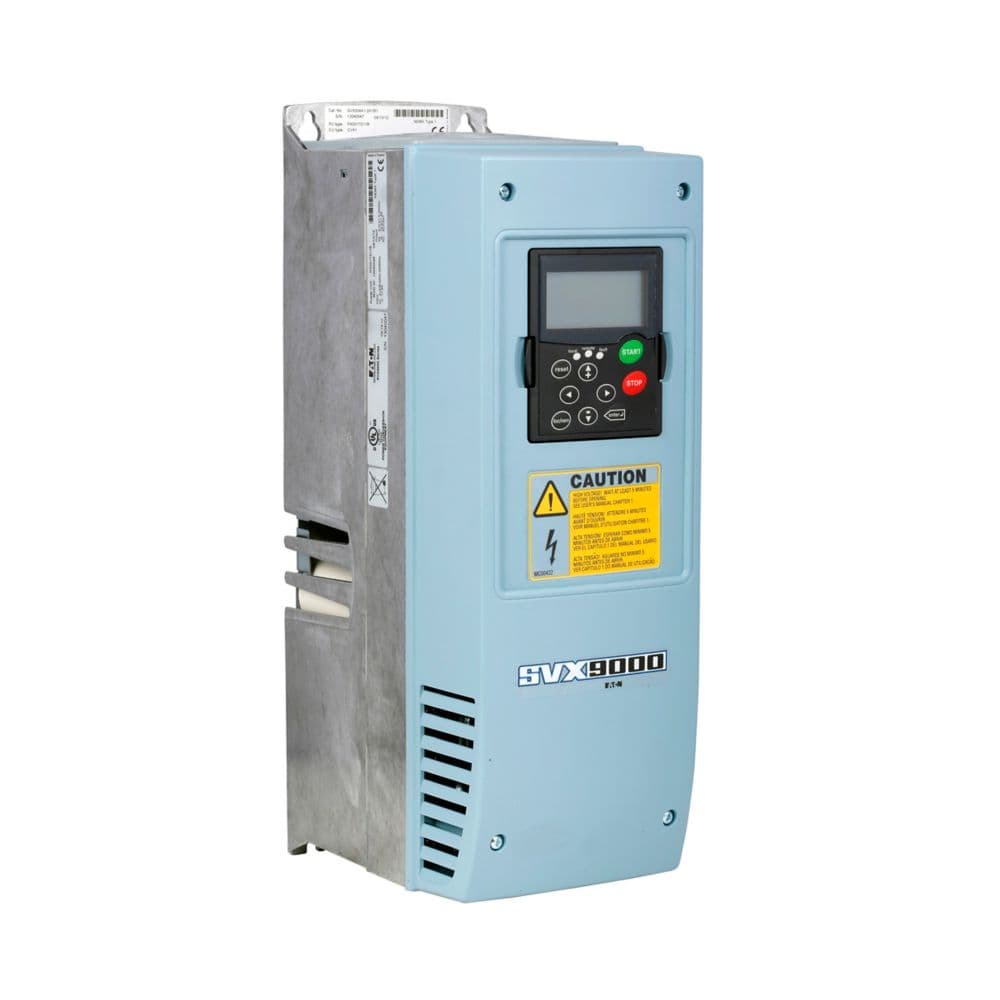

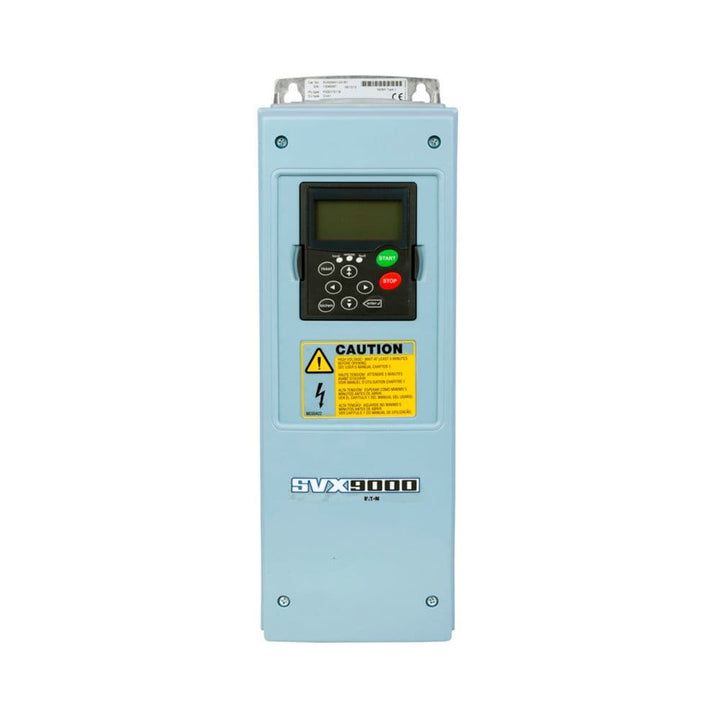

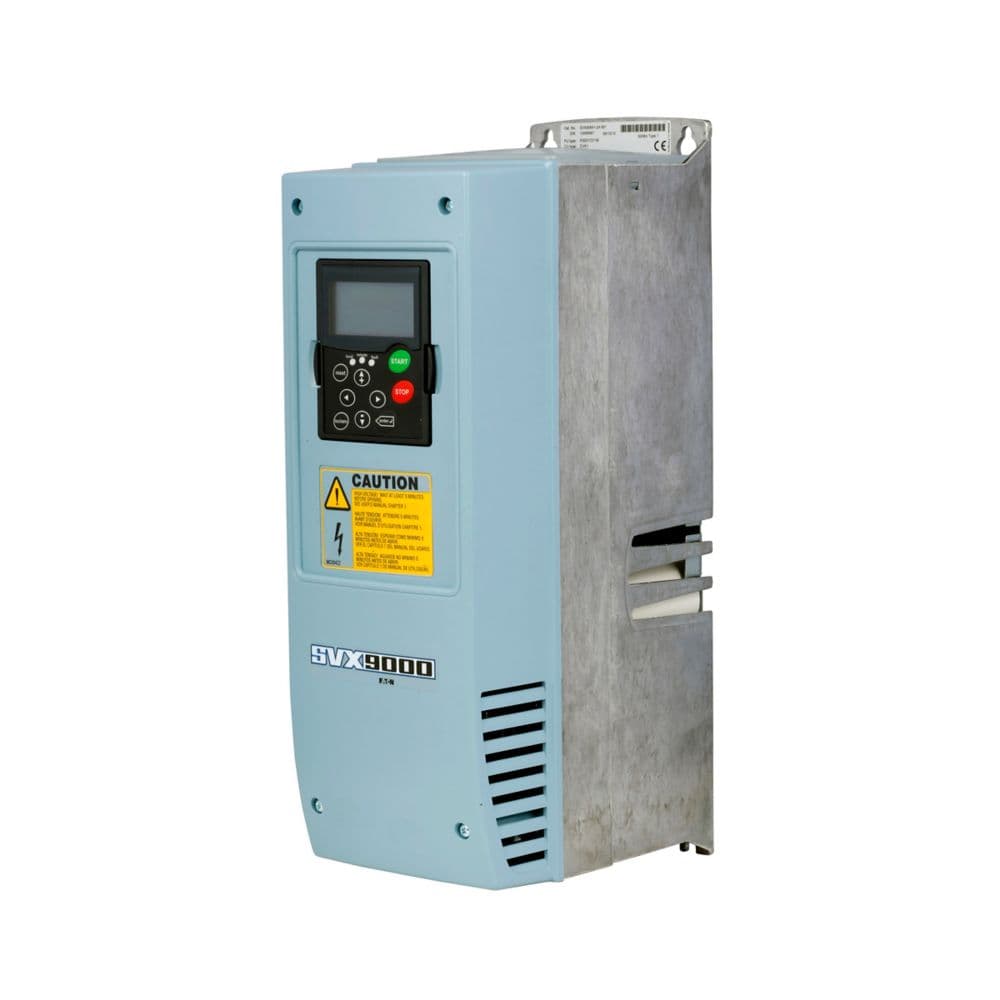

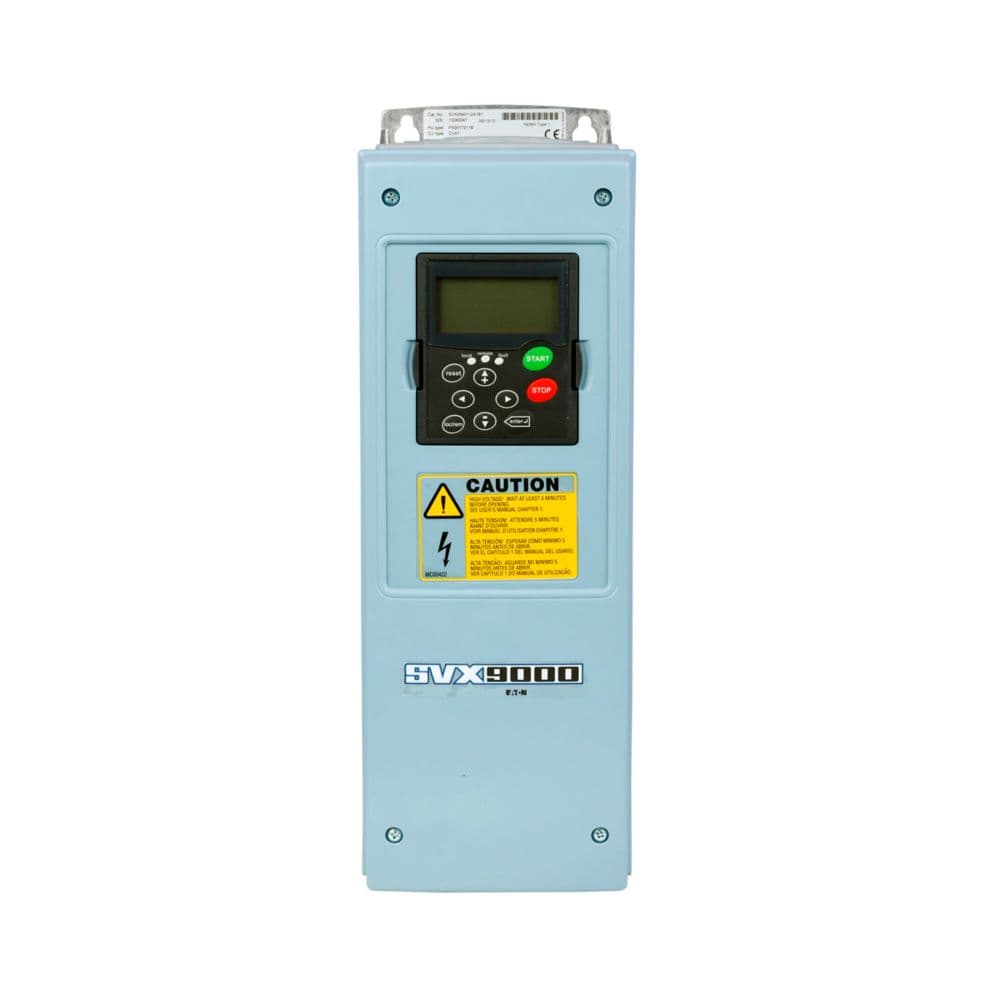

SVX010A1-4A1B1 Eaton SVX Adjustable Frequency Drive, 10 hp, 480 V
SVX010A1-4A1B1 identifies an Eaton SVX adjustable frequency drive, not a breaker or fuse. The full number selects an FR5, three-phase drive in the 380-500 V class with NEMA Type 1/IP21 construction.
Buyers can confirm the exact item with UPC 782116011490 and the two duty points: 10 hp at 16 A for intensive duty, or 15 hp at 23 A for light duty.
Common Applications
- Adjustable-speed operation of compatible three-phase AC motors
- Orders requiring the exact Eaton SVX010A1-4A1B1 build
- Equipment designed around an FR5 SVX drive
- Applications using the SVX sensorless vector control family
Key Features
-
Two operating ratings: Intensive-duty and light-duty values are published separately
-
Operator display: Alphanumeric keypad
-
Braking component: Internal brake chopper
-
Factory setup: Standard software and boards
-
EMC designation: H input option
Specifications
-
Rated voltage class: 380-500 V
-
Input phases: 3
-
Heavy-use rating: 10 hp, 16 A intensive duty
-
Lighter-use rating: 15 hp, 23 A light duty
-
Frame designation: FR5
-
NEMA/IP designation: NEMA Type 1/IP21
-
Physical dimensions: 16.5 in height x 5.6 in width x 8.4 in depth
-
Item weight: 17.9 lb
-
Certifications: IEC 61800-2, UL 508C, EN 61800-3 Level H
Product Identification
-
Manufacturer part number: SVX010A1-4A1B1
-
Manufacturer name: Eaton
-
Series name: SVX drives
-
UPC identifier: 782116011490
-
Warranty period: 2 years
FAQ
How can I verify this exact Eaton part?
Check the full catalog number SVX010A1-4A1B1 and UPC 782116011490.
Is the 15 hp value the intensive-duty rating?
Eaton assigns 15 hp to light duty and reserves 10 hp for intensive duty.
What protection level is provided?
The manufacturer lists NEMA Type 1 and IP21 for this configuration.
Are the listed measurements shipping dimensions?
The 16.5 x 5.6 x 8.4 in values are product dimensions, not package measurements.
