Square D SSP04EMA16S - Surge Arrestor 160kA 480Y/277VAC
Square D SSP04EMA16S - Surge Arrestor 160kA 480Y/277VAC

Square D SSP04EMA16S - Surge Arrestor 160kA 480Y/277VAC

Square D
Price
Save $-4,317.07
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

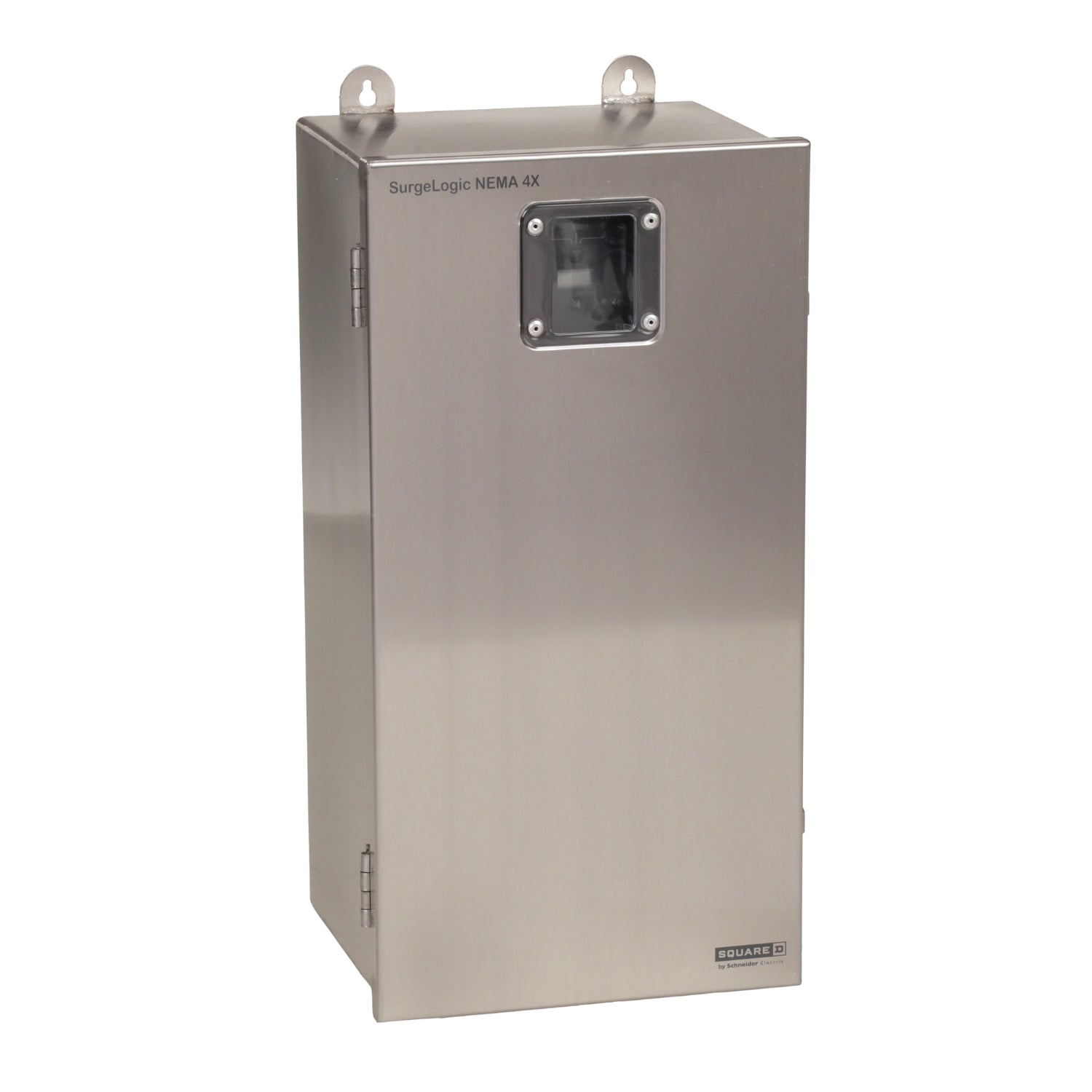

Square D SSP04EMA16S is a surge arrestor from the Square D Surgelogic family designed for protecting 3-phase, 4-wire electrical systems against transient overvoltages. This device operates at 480Y/277VAC with a 160kA surge current rating and a 200kA SCCR interrupt rating, accommodating copper wire sizes from AWG 10 to AWG 2. It features a NEMA 4X stainless steel enclosure with dimensions of 22.7 in (575.8 mm) x 11.7 in (297.2 mm) x 9.4 in (238.8 mm), weighs 32.201 lb, and includes audible, visual, and remote signaling indicators for status monitoring. The unit complies with UL 1449 4th Edition, UL 1283 5th Edition, and CSA C22.2 No. 8 standards, with an operating temperature range of -13 to 158 °F (-25 to 70 °C). Typical industrial applications include surge protection for commercial and industrial power distribution systems requiring surface mounting.

Key Features & Specifications
  • Manufacturer: Schneider Electric
  • Family: EMA
  • Section: Surge arrestor
  • Item Subcategory: Power Quality
  • Surge Current Rating: 160kA
  • Voltage: 480Y/277VAC
  • Phase: 3 Phase
  • Wires: 4 Wire + Ground
  • Interrupt Rating: 200kA SCCR
  • Enclosure: NEMA 4X Stainless Steel
  • Mounting Type: Surface
  • Wire Size: AWG 10 to AWG 2, Copper
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Dimensions: 22.7 in (575.8 mm) x 11.7 in (297.2 mm) x 9.4 in (238.8 mm) (Height x Width x Depth)
  • Weight: 32.201 lb
  • Standards: CSA C22.2 No 8, UL 1449:ed. 4, UL 1283:ed. 5
  • Indicators: Audible, Visual, Remote Signaling


Product Identification
  • UPC: 785901076711
