Square D SSP04EMA12S - Type 1 SPD 120kA 480Y/277VAC
Square D SSP04EMA12S - Type 1 SPD 120kA 480Y/277VAC

Square D SSP04EMA12S - Type 1 SPD 120kA 480Y/277VAC

Square D
Price
Save $-2,587.41
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

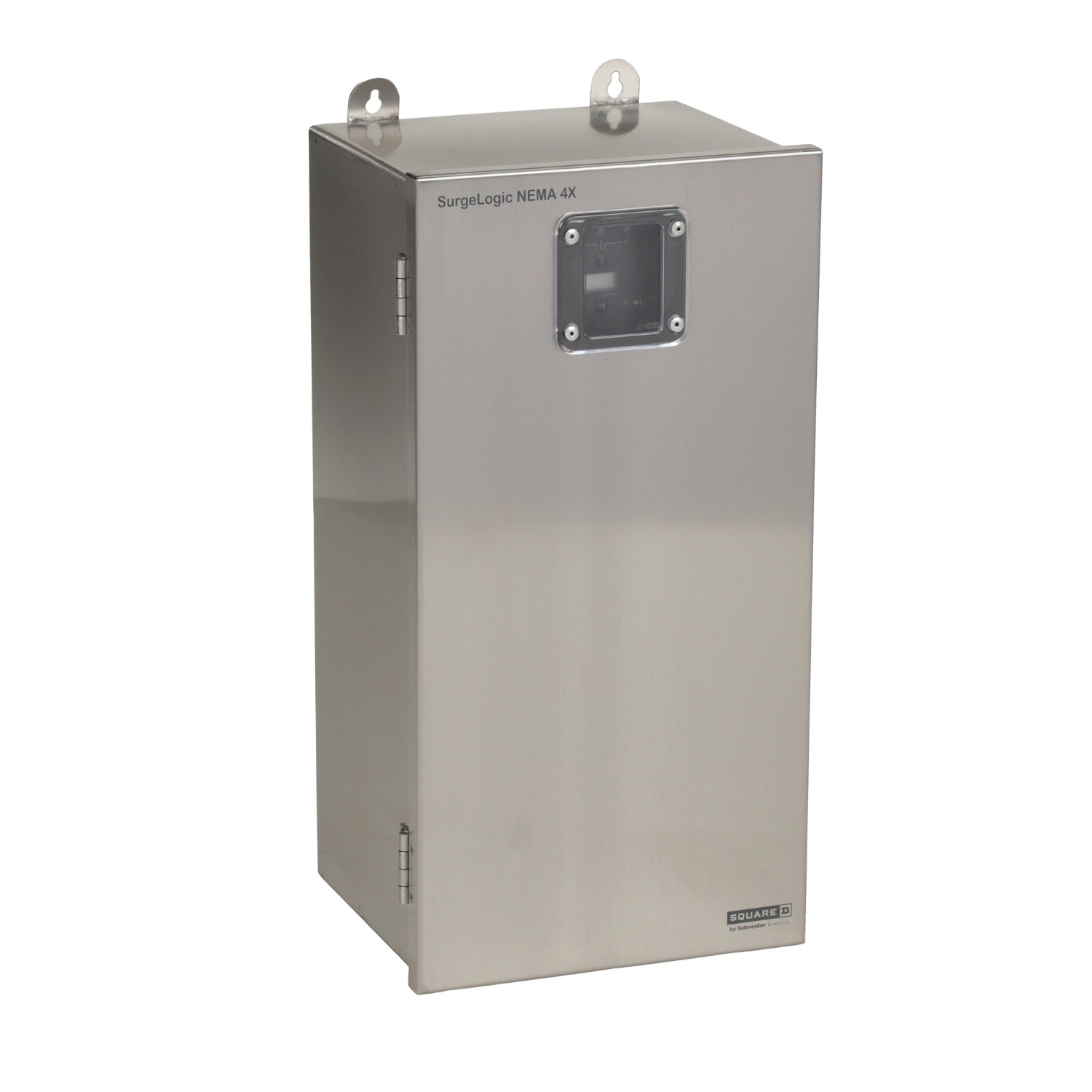

Square D SSP04EMA12S is a Type 1 surge protection device from the Surgelogic family, designed to safeguard 3-phase, 4-wire electrical systems against transient overvoltages. It operates at a voltage rating of 480Y/277VAC with a 120kA interrupt rating, utilizing copper wire from AWG 10 to AWG 2. The unit measures 22.7 in (575.8 mm) in height, 11.7 in (297.2 mm) in width, and 9.4 in (238.8 mm) in depth, weighing 32.201 lb, and is housed in a NEMA 4X enclosure for robust environmental protection. It complies with CSA C22.2 No 8, UL 1449:ed. 4, and UL 1283:ed. 5 standards, and operates within a temperature range of -13 to 158 °F (-25 to 70 °C). This device is suited for demanding commercial and industrial applications requiring reliable power quality management.

Key Features & Specifications
  • Type: Surge arrestor
  • Family: EMA
  • Manufacturer: Schneider Electric
  • Item Subcategory: Power Quality
  • UPC: 785901076674
  • Dimensions: 22.7 in (575.8 mm) x 11.7 in (297.2 mm) x 9.4 in (238.8 mm) (Height x Width x Depth)
  • Weight: 32.201 lb
  • Standards: CSA C22.2 No 8, UL 1449:ed. 4, UL 1283:ed. 5
  • Wire Size: AWG 10 to AWG 2, Copper
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Interrupt Rating: 120kA
  • Voltage Rating: 480Y/277VAC
  • Phase: 3-Phase, 4-Wire
  • Enclosure: NEMA 4X
  • Signaling: Audible, Visual, Remote
  • SPD Type: Type 1
  • Features: Surge counter, alarm enable/disable switch, dry contacts


Product Identification
  • UPC: 785901076674
