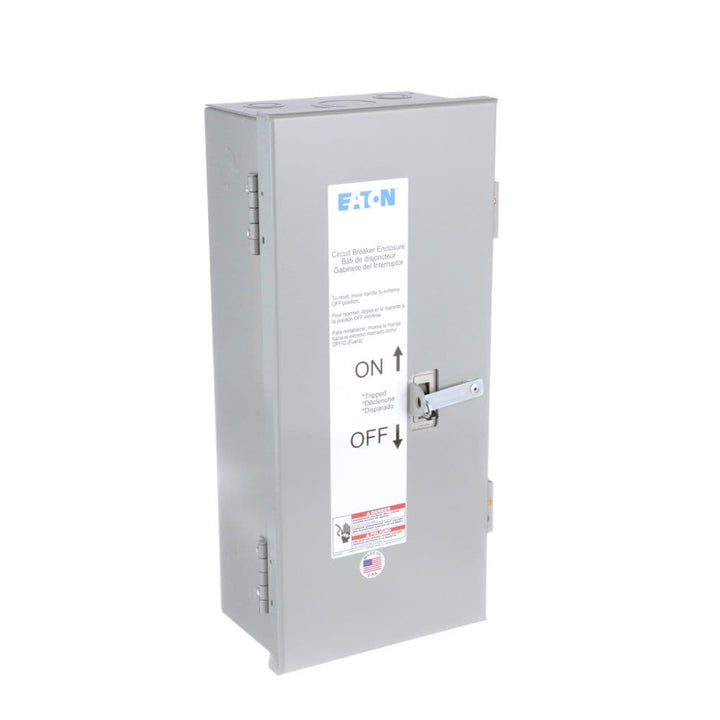

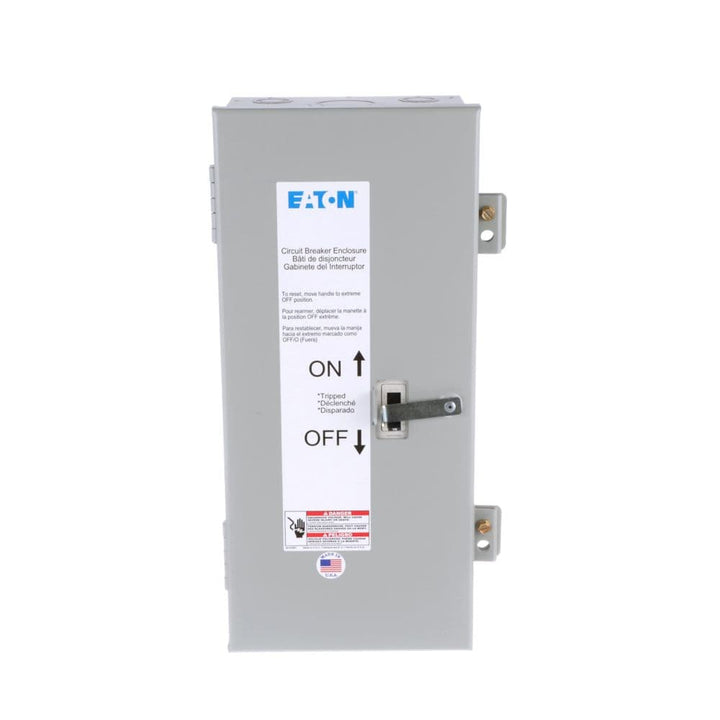

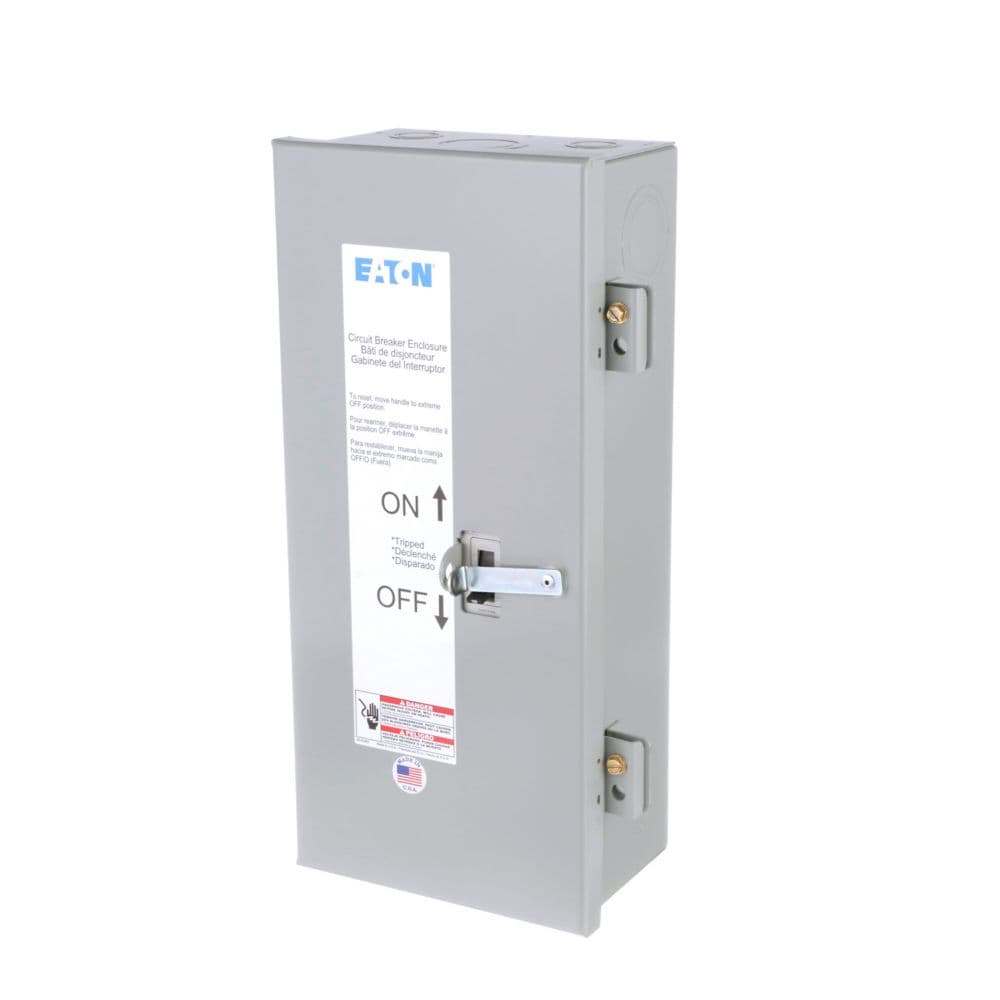

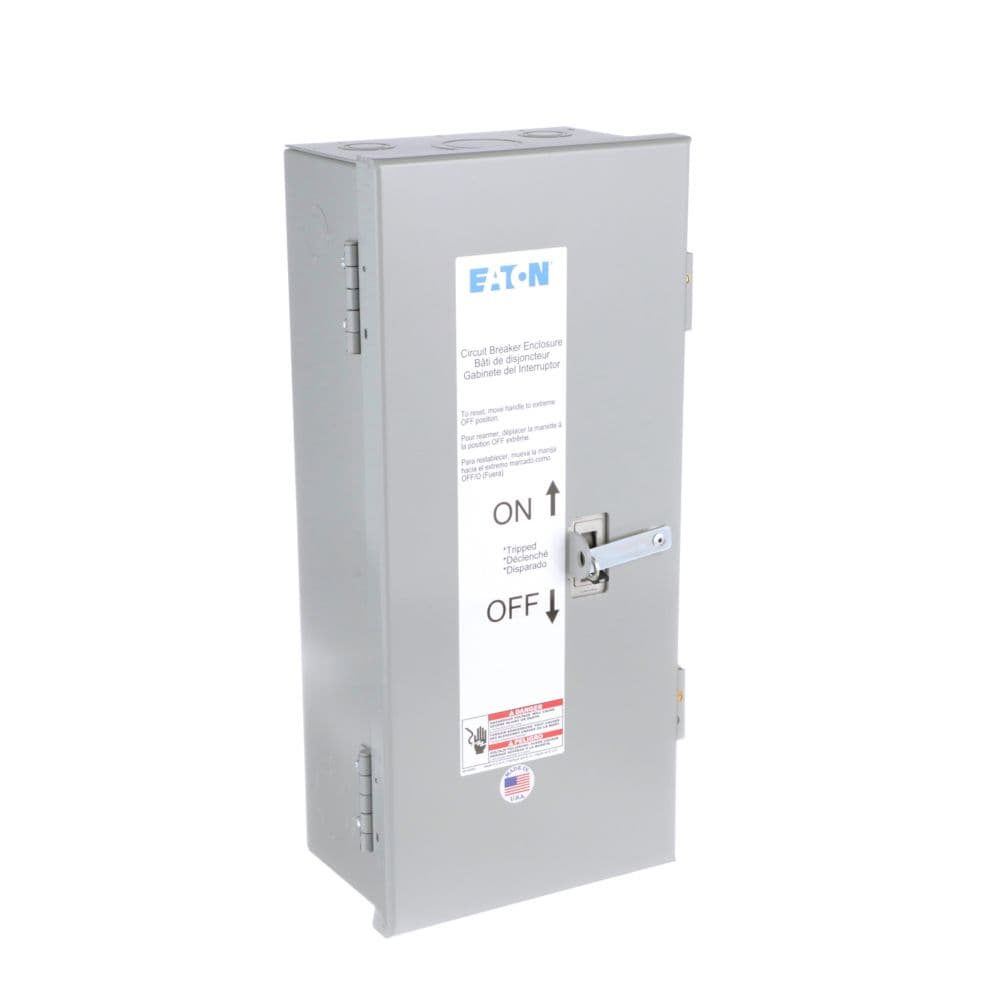

SPD1K0125 Eaton 125 A Circuit Breaker Enclosure, NEMA 1, 3-Pole, Accepts PD1

SPD1K0125 Eaton 125 A Circuit Breaker Enclosure, NEMA 1, 3-Pole, Accepts PD1

Trying to find the correct housing for a three-pole Eaton Power Defense breaker? That is what the SPD1K0125 is for. It holds the breaker, mounts to the surface of an indoor wall, and carries a NEMA 1 rating, the basic indoor rating covering contact with live parts and falling dirt. Eaton lists the amperage rating as 125 A.

Two details are worth confirming first. Eaton lists SPD1K0125 as accepting a PD1 frame, three-pole, 125 A frame MCCB, which is Eaton's Power Defense line. The Eaton catalog note also says this Power Defense enclosure is not approved for Series C/G MCCB, so an older Series C or Series G breaker is not what Eaton pairs with it. Eaton publishes the product size as 20.1 in H x 11.2 in W x 10.7 in D and the product weight as 12.9 lb.

Common Applications

• Indoor wall locations that need a NEMA Type 1 rated breaker housing
• Setups using a three-pole Power Defense PD1 frame breaker at 125 A
• Replacing or adding a surface mounted breaker enclosure inside a building
• Purchases that require UL Listed and CSA Certified electrical equipment

Key Features

• Indoor NEMA 1 rating: Type 1 means indoor use, with protection against touching hazardous parts and against falling dirt, and no water rating.
• Mounts on the wall surface: Eaton lists the mounting method as surface mounting.
• Matched to the PD1 frame: Eaton lists it as accepting a PD1, three-pole, 125 A frame MCCB.
• 125 A amperage rating: The amperage rating published by Eaton for this catalog number is 125 A.
• Tested and certified: Eaton publishes it as UL Listed and CSA Certified.
• Clear frame limitation: Eaton states it is not approved for Series C/G MCCB.

Specifications

• Catalog Number: SPD1K0125
• Manufacturer: Eaton
• Product Type: Circuit breaker enclosure
• Amperage Rating: 125 A
• Number of Poles: Three-pole
• Enclosure Type: NEMA 1
• Mounting Method: Surface mounting
• Breaker Compatibility: Accepts PD1, 3-pole, 125 A frame MCCB
• Certifications: UL Listed, CSA Certified
• Catalog Notes: Power Defense enclosure, not approved for Series C/G MCCB

Product Identification

• UPC: 786689661878
• Product Dimensions: 20.1 in H x 11.2 in W x 10.7 in D
• Product Weight: 12.9 lb

FAQ

What does SPD1K0125 actually do?
It is the enclosure, meaning the housing that a three-pole PD1 frame molded case circuit breaker is installed into. Eaton rates it at 125 A.

What does the NEMA 1 rating mean here?
NEMA defines Type 1 as built for indoor use, protecting people from reaching hazardous parts and keeping falling dirt out. It is not a wet location or outdoor rating.

How do I know if my breaker belongs in it?
Check that the breaker is an Eaton PD1 frame, three-pole device at a 125 A frame rating, which is what Eaton lists for this enclosure.

Will an older Eaton Series C or Series G breaker go in?
Eaton's own catalog note says this Power Defense enclosure is not approved for Series C/G MCCB, so no.

What size and weight should I plan for?
Eaton publishes the product as 20.1 in H x 11.2 in W x 10.7 in D and 12.9 lb.

Does it carry a UPC I can look up?
Yes. Eaton publishes UPC 786689661878 for SPD1K0125.
