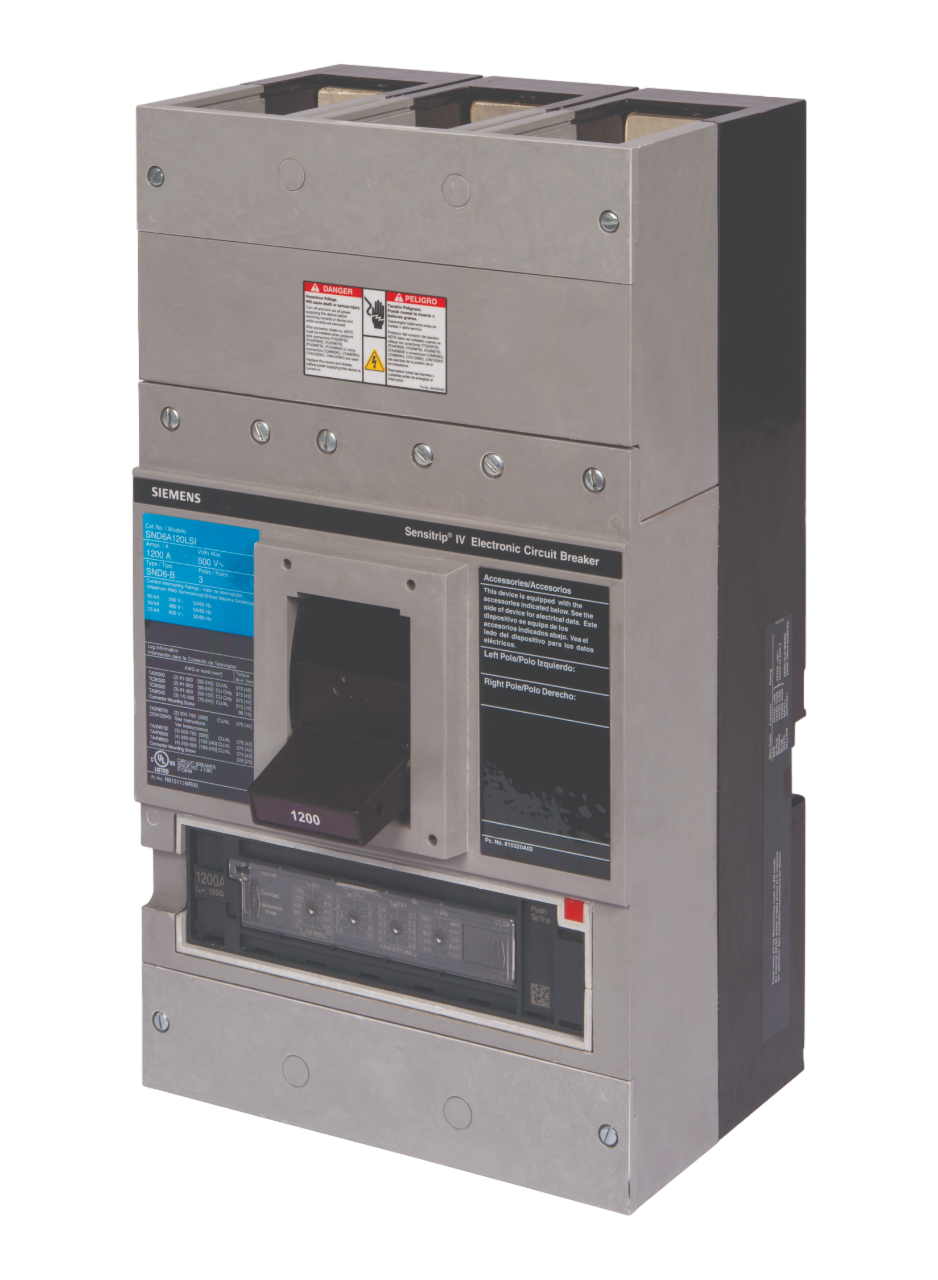

Siemens SND6B120LIG - Molded Case Breaker 1200A 600V 3-Pole
Siemens SND6B120LIG - Molded Case Breaker 1200A 600V 3-Pole

Siemens SND6B120LIG - Molded Case Breaker 1200A 600V 3-Pole

Siemens
Price
Save $-8,245.90
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Siemens SND6B120LIG is a 3-pole molded case circuit breaker from the Sentron Series, designed to provide solid-state protection with Long-Time, Instantaneous, and Ground Fault (LIG) functions for industrial power distribution systems. It is rated for 1200A continuous current at 600V AC, with an interrupting capacity of 50kA at 480V, and features a feed-thru connection configuration. The breaker measures 8.00 x 9.00 x 16.00 inches and weighs 61.5 lb, constructed for robust performance in demanding environments. This unit complies with industry standards for overcurrent and ground fault protection, suitable for 3-phase applications requiring precise, adjustable trip settings. Typical applications include main or feeder protection in commercial and industrial switchboards, panelboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Solid State Trip, Sentron Series
  • Voltage Rating: 600V AC
  • Current Rating: 1200A
  • Dimensions: 8.00 x 9.00 x 16.00 inch
  • Standards: UL, CSA, NEMA
  • Applications: Main and feeder protection in industrial power systems
  • Poles: 3
  • Phase: 3
  • AIC Rating: 50kA@480V
  • Connection: Feed-Thru
  • Protection: Solid State (LIG - Long-Time, Instantaneous and Ground Fault)
  • Functions: Long-Time, Instantaneous, Ground Fault
  • Frame Size: SND
  • Trip Type: Solid State
  • Breaker Type: SND6B120LIG
  • Weight: 61.5 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766396717
  • GTIN: 00804766396717
