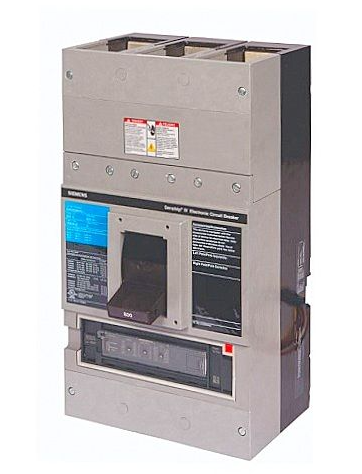

Siemens SND6B100LIG - Molded Case Breaker 1000A 600V
Siemens SND6B100LIG - Molded Case Breaker 1000A 600V

Siemens SND6B100LIG - Molded Case Breaker 1000A 600V

Siemens
Price
Save $-15,542.82
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens SND6B100LIG is a Sentron Series molded case circuit breaker designed for primary protection of electrical systems through solid-state trip technology. This 3-pole breaker is rated for 600V AC and 1000A continuous current, with an AIC rating of 50kA at 480V. The unit measures 8.00 x 9.00 x 16.00 inches and weighs 61.5 lb, featuring a feed-thru connection configuration. It complies with industry standards for molded case breakers and is manufactured in Mexico. Typical applications include industrial power distribution and main switchboard protection in commercial facilities.

Key Features & Specifications
  • Type: Molded Case, Sentron Series, Solid State Trip
  • Voltage Rating: 600V AC
  • Current Rating: 1000A
  • Dimensions: 8.00 x 9.00 x 16.00 inch
  • Standards: Industry standard molded case breaker compliance
  • Applications: Industrial power distribution, main switchboard protection
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Poles: 3
  • Phase: 3
  • Voltage: 600V
  • Amperage: 1000A
  • AIC rating: 50kA@480V
  • Connection: Feed-Thru
  • Protection: Solid State
  • Functions: LIG - Long Time, Instantaneous and Ground Fault Trip
  • Frame Size: Sentron Series
  • Trip Type: Solid State
  • Breaker Type: Molded Case
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Feed-Thru
  • Frequency Rating: 60 Hz
  • Phase Connection: 3-Phase
  • Installation Type: Fixed
  • Item QTY: 1
  • Breaker Frame: Sentron Series
  • Current Rating: 1000A
  • Operating Temperature Maximum Celsius: 40°C
  • Weight: 61.5 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766396236
