Siemens SND6A100LI - Molded Case 1000A 600V 3-Pole
Siemens SND6A100LI - Molded Case 1000A 600V 3-Pole

Siemens SND6A100LI - Molded Case 1000A 600V 3-Pole

Siemens
Price
Save $26,784.59
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

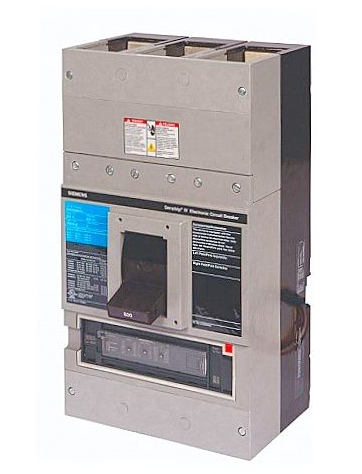

Siemens SND6A100LI is a 3-pole molded case circuit breaker from the Sentron Series, designed to provide LI (Long-Time and Instantaneous) protection for industrial power distribution systems. It is rated for 600V AC, 1000A continuous current, and delivers a 50kA interrupting capacity at 480V, with solid-state trip protection and feed-thru connection. The unit measures 8.00 x 9.00 x 16.00 inches, weighs 61.5 lb, and is constructed for 3-phase applications. It complies with industry standards for molded case circuit breakers, manufactured in Mexico. Typical applications include main or feeder protection in commercial and industrial switchboards, panelboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Sentron Series, Solid State Trip
  • Voltage Rating: 600V AC
  • Current Rating: 1000A
  • Poles: 3
  • Phase: 3
  • AIC Rating: 50kA@480V
  • Connection: Feed-Thru
  • Protection: LI - Long-Time and Instantaneous
  • Dimensions: 8.00 x 9.00 x 16.00 inch
  • Weight: 61.5 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766396106
  • GTIN: 00804766396106
