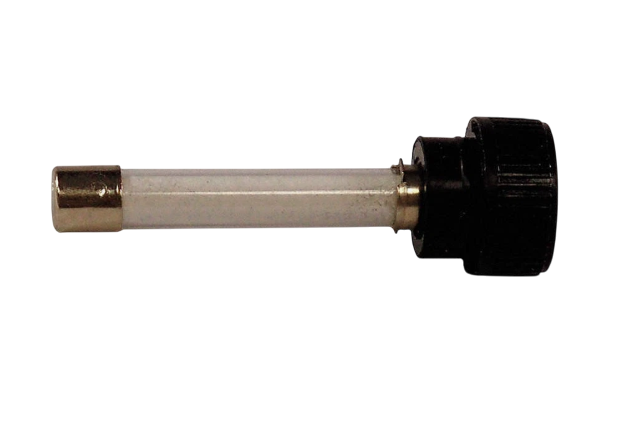

Mersen SLR2 - Low Voltage Fuse 2A 300V (10kA AIC Rating)

Mersen SLR2 is a low-voltage current-limiting fuse designed for circuit protection in industrial applications, featuring a 2A current rating and 300V voltage rating for reliable overcurrent protection. The fuse employs a single-barrel construction with bolt-in connection type and measures 1-29/32 inches in length, weighing 0.01 lb for compact installation. It meets CSA and UL certification standards and provides 10kA interrupting capacity at 300V for effective short-circuit protection. Typical applications include industrial control circuits, motor branch circuits, and electrical distribution systems where precise current limitation is required.

Key Features & Specifications

• Type: SLR series current-limiting fuse with single-barrel construction
• Voltage Rating: 300V AC/DC
• Current Rating: 2A
• Dimensions: 1-29/32 inches length
• Standards: CSA, UL certified
• Applications: Industrial control circuits, motor protection, electrical distribution
• Connection: Bolt-In
• Barrels: 1
• AIC rating: 10kA@300V
• Certification: CSA, UL
• Family: SLR
• Weight: 0.01 lb
• Country of Origin: Mexico

Product Identification

• UPC: 78200175147
• GTIN: 00782001751470
