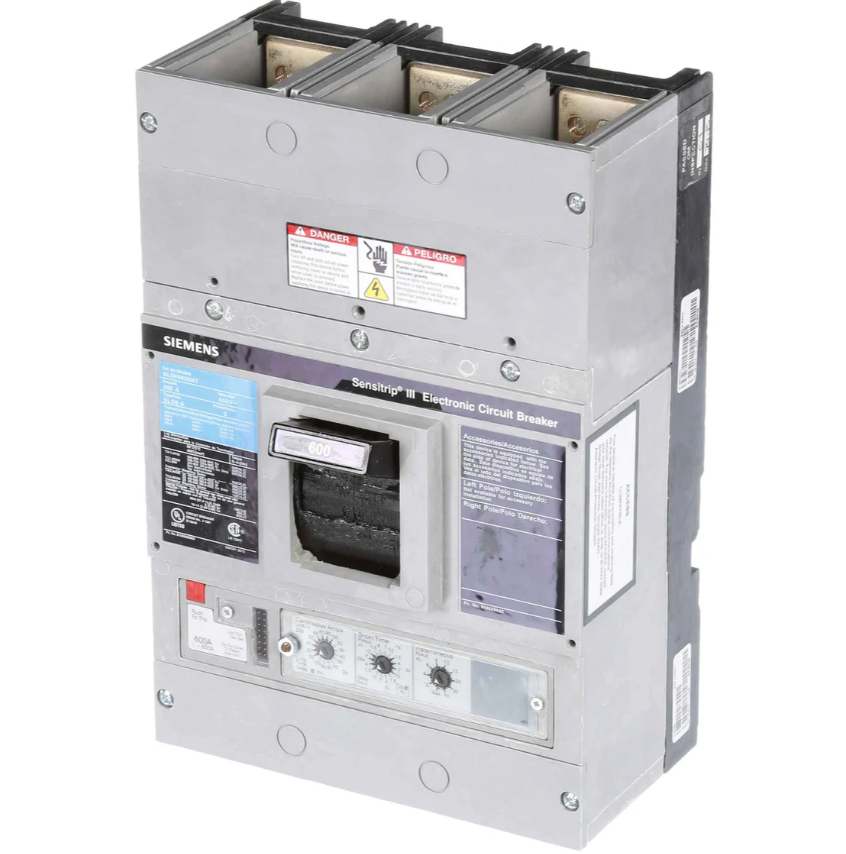

Siemens SLD6A600LIG - Sentron 600A 3-Pole Bolt-On
Siemens SLD6A600LIG - Sentron 600A 3-Pole Bolt-On

Siemens SLD6A600LIG - Sentron 600A 3-Pole Bolt-On

Siemens
Price
Save $-4,297.28
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Siemens SLD6A600LIG Circuit Breaker - Sentron Series 600A 3-Pole Bolt-On The Siemens SLD6A600LIG is a Sentron series circuit breaker designed for primary protection of electrical systems through its LIG (Long Time, Instantaneous and Ground Fault) functions. This solid-state, three-phase breaker is rated for 600A at 600VAC, with interrupting capacities of 25kAIC at 600V and 35kAIC at 480V, and features a bolt-on connection configuration. Physically, it measures 5.00 x 8.00 x 11.00 inches and weighs 20 lb, constructed for robust industrial environments. The breaker complies with RoHS standards and holds UL certification, ensuring reliable performance in demanding applications. It is typically used in industrial power distribution systems requiring precise ground fault protection and is compatible with SLD frames.

Key Features & Specifications
  • Type: Sentron, Solid State, LIG (Long Time, Instantaneous and Ground Fault)
  • Voltage Rating: 600VAC
  • Current Rating: 600A
  • Dimensions: 5.00 x 8.00 x 11.00 inch
  • Standards: RoHS
  • Applications: Industrial power distribution with ground fault protection
  • Switch Type: Circuit Breaker
  • Configuration: 3-Phase
  • Coil Voltage Maximum: Not specified
  • Temp Rating: Not specified
  • Shipping Dimensions: Not specified
  • Phase: 3
  • Voltage: 600VAC
  • Amperage: 600A
  • AIC rating: 25kAIC at 600V, 35kAIC at 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Solid State
  • Functions: LIG - Long Time, Instantaneous and Ground Fault
  • Frame Size: SLD
  • Trip Type: Solid State
  • Panel Type: Not specified
  • Breaker Type: Sentron
  • Control Voltage Minimum: Not specified
  • Control Voltage Maximum: Not specified
  • MCM Size: Not specified
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not specified
  • Insulation Temperature: Not specified
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not specified
  • Class Rating: Not specified
  • Diameter: Not specified
  • Velocity: Not specified
  • Clip Center: Not specified
  • Clas: Not specified
  • Mounting: Bolt-On
  • Hz: Not specified
  • Coil Material: Not specified
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: Not specified
  • Dist Voltage: Not specified
  • Bucket Size: Not specified
  • Bucket Style: Not specified
  • Bucket Type: Not specified
  • Full Load Amp Maximum: Not specified
  • Full Load Amp Minimum: Not specified
  • Enclosure: Not specified
  • Relay Style: Not specified
  • Coil Voltage Minimum: Not specified
  • Wire: Not specified
  • Amperage Maximum: 600A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Not specified
  • Wire Size: Not specified
  • Certification: UL
  • Circuit Breaker Mounting Style: Bolt-On
  • Terminal Connection: Bolt-On
  • Frequency Rating: Not specified
  • Phase Connection: 3-Phase
  • Standards: RoHS
  • Compatible Frames: SLD
  • Installation Type: Bolt-On
  • Item QTY: 1
  • Nema Starter Size: Not specified
  • Breaker Frame: SLD
  • Current Rating: 600A
  • Reverse Standoff Voltage: Not specified
  • Watts: Not specified
  • Peak Pulse Current: Not specified
  • Breakdown Voltage (MIN VBR@IT ) (V): Not specified
  • Breakdown Voltage (VBR@IT) (V): Not specified
  • Polarity: Not specified
  • Operating Temperature Maximum Celsius: Not specified
  • Max Clamp Voltage: Not specified
  • On-State Current: Not specified


Product Identification
  • UPC: 804766393983
  • GTIN: 00804766393983
