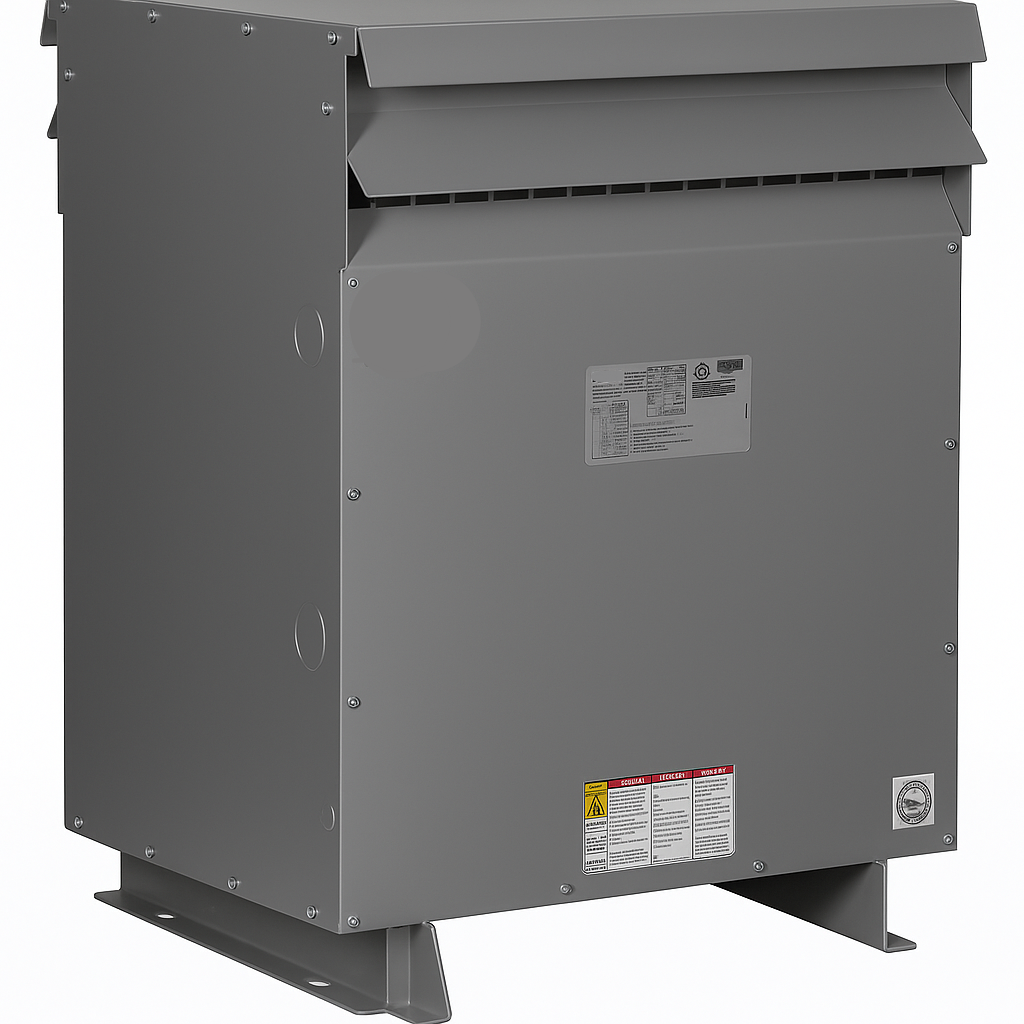

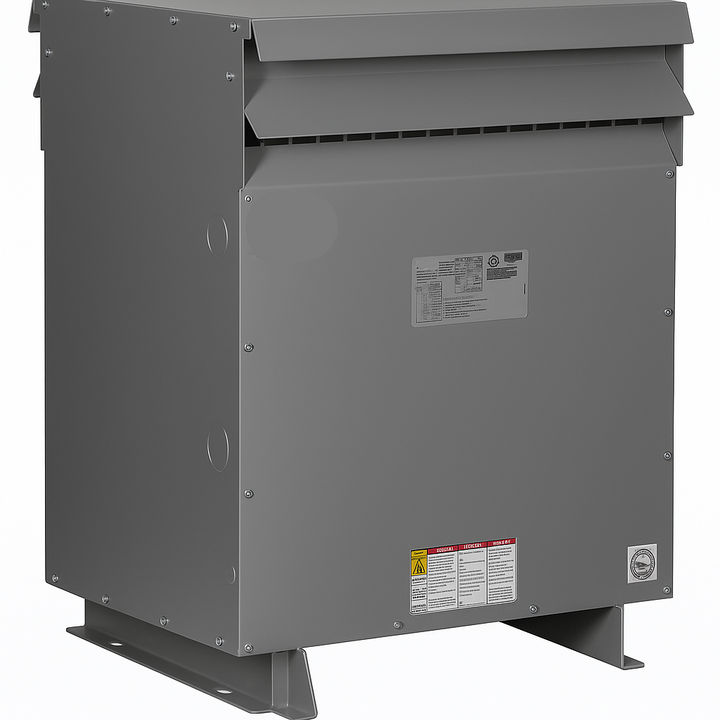

Hammond Power Solutions SG3A0750BK - Three-Phase Transformer 750 kVA (208D/480Y)
Hammond Power Solutions SG3A0750BK - Three-Phase Transformer 750 kVA (208D/480Y)

Hammond Power Solutions SG3A0750BK - Three-Phase Transformer 750 kVA (208D/480Y)

Hammond Power Solutions
Price
Save $18,537.01
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon

💡 Important Notice for Hammond Products

Hammond products are Non-Cancellable and Non-Returnable.

Call for Price
Hammond Power Solutions SG3A0750BK is a three-phase general duty transformer engineered for stepping up voltage from 208V delta to 480Y/277V Wye in industrial power distribution systems. This 750 kVA unit features aluminum windings with a 150°C temperature rise and 220°C insulation class, housed in a Type 3R/IP24 enclosure with ANSI 61 grey finish. The transformer weighs 4990 lb and operates at a sound level of 64 dBA with 4-7.5% impedance. It complies with DOE 2016, NRCAN 2019, and NMX 2021 efficiency regulations, and meets IBC 2018 seismic standards (Sds=2.0, z/h=0, lp=1.5). Typical applications include industrial facilities, manufacturing plants, and commercial power systems requiring reliable voltage transformation.

Key Features & Specifications
  • Type: Three-Phase General Duty Transformer
  • Primary Voltage: 208D
  • Secondary Voltage: 480Y/277
  • Phase: 3
  • Capacity: 750 kVA
  • Frequency: 60Hz
  • Material: Aluminum Windings
  • Temperature Rise: 150°C
  • Insulation Class: 220°C
  • Enclosure Type: Type 3R / IP24
  • Enclosure Finish: ANSI 61 Grey
  • Dimensions: 72" H × 54" W × 44" D
  • Weight: 4990 lb
  • Sound Level: 64 dBA (NEMA ST-20)
  • Impedance: 4% - 7.5%
  • Certification: CSA, UL
  • Efficiency Compliance: DOE 2016, NRCAN 2019, NMX 2021
  • Seismic Standard: IBC 2018 (Sds=2.0)


Product Identification
  • UPC: 803423127367
