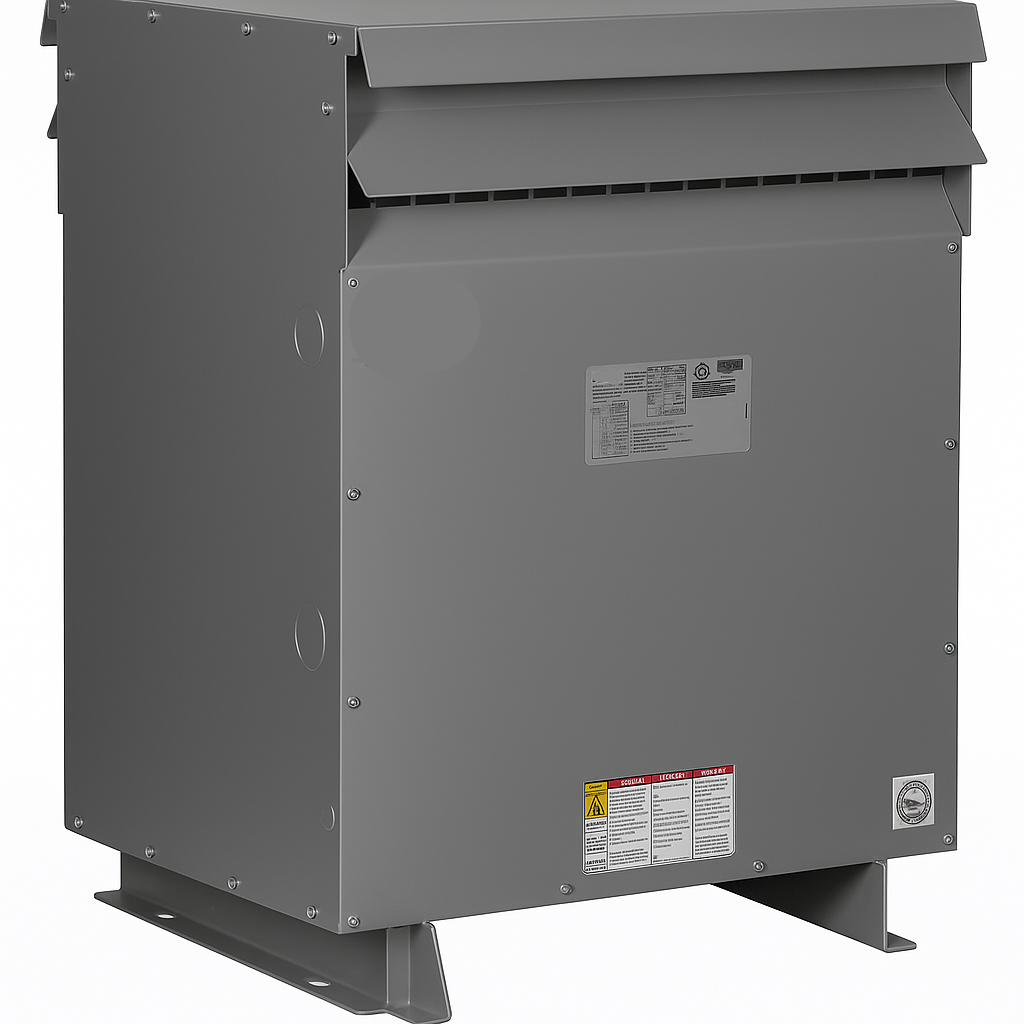

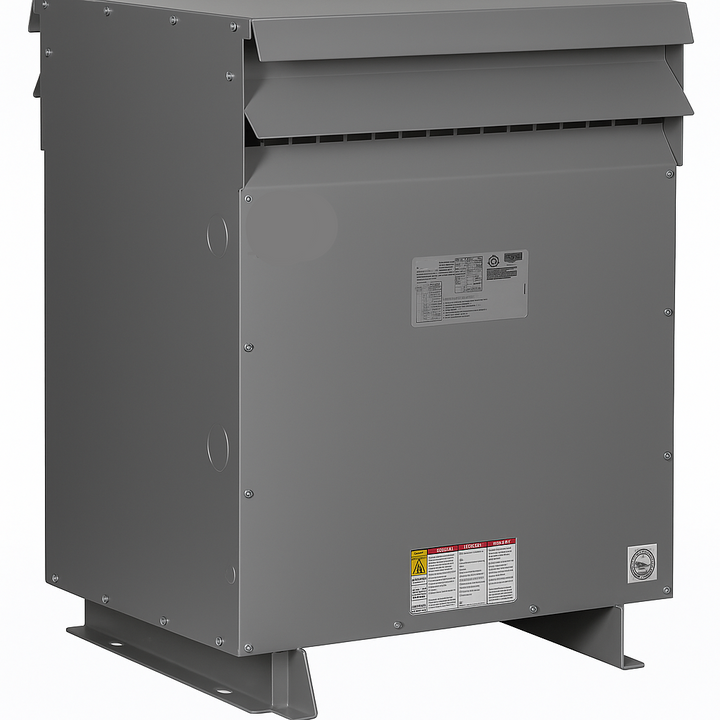

Hammond Power Solutions SG3A0750BB0C - Three-Phase Transformer 208V/120V 750kVA
Hammond Power Solutions SG3A0750BB0C - Three-Phase Transformer 208V/120V 750kVA

Hammond Power Solutions SG3A0750BB0C - Three-Phase Transformer 208V/120V 750kVA

Hammond Power Solutions
Price
Save $23,976.86
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon

💡 Important Notice for Hammond Products

Hammond products are Non-Cancellable and Non-Returnable.

Call for Price
Hammond Power Solutions SG3A0750BB0C is a three-phase general duty transformer engineered for industrial power distribution and commercial building applications requiring reliable voltage conversion. It operates with a 208V delta primary and 208Y/120V secondary configuration, delivering 750 kVA capacity at 60Hz with a 150°C temperature rise and 220°C insulation class. The unit is housed in a Type 3R/IP24 enclosure with an ANSI 61 grey finish, weighing 5.19 lb, and produces a maximum sound level of 64 dBA. It is certified to CSA and UL standards, complying with DOE 2016, NRCAN 2019, and NMX 2021 efficiency regulations, as well as IBC 2018 seismic requirements (Sds=2.0, z/h=0, lp=1.5). Typical applications include industrial facilities, commercial buildings, and utility power distribution systems requiring three-phase power conversion.

Key Features & Specifications
  • Type: Three-Phase General Duty Transformer
  • Primary Voltage: 208V Delta
  • Secondary Voltage: 208Y/120V
  • Phase: 3
  • Capacity: 750 kVA
  • Frequency: 60Hz
  • Temperature Rise: 150°C
  • Insulation Class: 220°C
  • Enclosure Type: Type 3R / IP24
  • Enclosure Finish: ANSI 61 Grey
  • Sound Level: 64 dBA (NEMA ST-20)
  • Certification: CSA, UL
  • Efficiency Standards: DOE 2016, NRCAN 2019, NMX 2021
  • Seismic Compliance: IBC 2018 (Sds=2.0)
  • Weight: 5.19 lb


Product Identification
  • UPC: 803423127343
