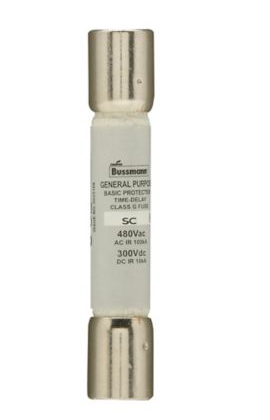

Bussmann SC-50 - Class G Medium Voltage Fuse 50A (100kA@480V AIC Rating)

Bussmann SC-50 is a Class G medium voltage fuse designed for comprehensive circuit protection in industrial applications. It features a 50A current rating and 480V voltage rating with a high 100kA interrupting capacity at 480V for reliable fault protection. The fuse construction includes a single barrel design with 0.41 inch diameter and compact 2-1/4 inch dimensions, weighing 1 lb for straightforward installation. It meets CE, CSA Guide 1422-01, and UL 248-5 Guide JDDZ certifications, ensuring compliance with industry safety standards for industrial power distribution systems, motor circuits, and equipment protection applications.

Key Features & Specifications

• Type: Class G medium voltage fuse, single barrel construction
• Voltage Rating: 480V
• Current Rating: 50A
• Dimensions: 2-1/4 inch length, 0.41 inch diameter
• Weight: 1 lb
• Standards: CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ
• Applications: Industrial power distribution, motor protection, equipment circuits
• AIC rating: 100kA@480V
• Class Rating: G
• Barrels: 1
• Family: SC Series
• Country of Origin: Mexico

Product Identification

• UPC: 051712250504
• GTIN: 00051712250504
