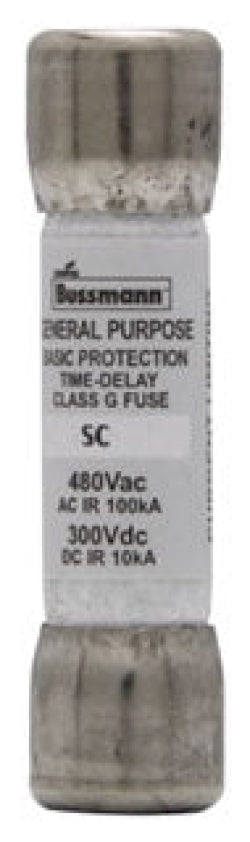

Bussmann SC-30 - Class G Fuse 30A 480V (100kA AIC Rating)

Bussmann SC-30 is a Class G low-voltage current-limiting fuse designed for comprehensive circuit protection in industrial power distribution systems. It features a 30A current rating and 480V AC voltage rating with a high 100kA interrupting capacity at rated voltage. The fuse construction utilizes a single-barrel design with 0.41-inch diameter and 1-5/8-inch length, weighing 1 lb for robust physical characteristics. It complies with UL 248-5, CSA Guide 1422-01, and CE standards for safety and performance verification. Typical applications include motor branch circuits, feeder circuits, and industrial control panels requiring reliable overcurrent protection.

Key Features & Specifications

• Type: Class G current-limiting fuse, single-barrel construction
• Voltage Rating: 480V AC
• Current Rating: 30A
• Dimensions: 1-5/8 inch length, 0.41 inch diameter
• Standards: UL 248-5 Guide JDDZ, CSA Guide 1422-01, CE
• Applications: Industrial power distribution, motor circuits, feeder protection
• AIC rating: 100kA@480V
• Class Rating: G
• Barrels: 1
• Weight: 1 lb
• Certification: CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ
• Family: SC Series
• Country of Origin: Mexico

Product Identification

• UPC: 051712250306
• GTIN: 00051712250306
