Eaton Bussmann SC-25 - Class G Fuse 25A 480V (100kA AIC)

Bussmann
Price
Save $875.38
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

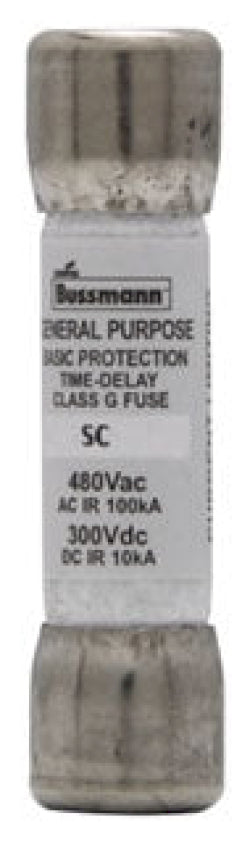

Eaton Bussmann SC-25 is a low-voltage, current-limiting fuse designed for branch circuit and feeder protection in industrial electrical systems. It provides a 25A current rating and a 480V AC voltage rating, with a high interrupting capacity of 100kA to safely clear severe short circuits. The fuse features a compact, single-barrel construction with a 0.41-inch diameter and a 1.62-inch length, built to the Class G standard for time-delay characteristics. It complies with key industry standards including UL 248-5, CSA, and CE, making it suitable for protecting motor circuits, transformers, and other equipment where inrush currents are present.

Key Features & Specifications
  • Type: SC Series, Class G time-delay, current-limiting, low-voltage fuse
  • Voltage Rating: 480V AC
  • Current Rating: 25A
  • Dimensions: 1.62 in L x 0.41 in H x 0.41 in W
  • Standards: UL 248-5 (Guide JDDZ), CSA Guide 1422-01, CE
  • Applications: Branch circuit and feeder protection for motors, transformers, and industrial controls
  • AIC rating: 100kA @ 480V AC
  • Class Rating: G
  • Barrels: 1
  • Diameter: 0.41 in
  • Weight: 0.18 lb


Product Identification
  • UPC: 051712250252
  • GTIN: 00051712250252
