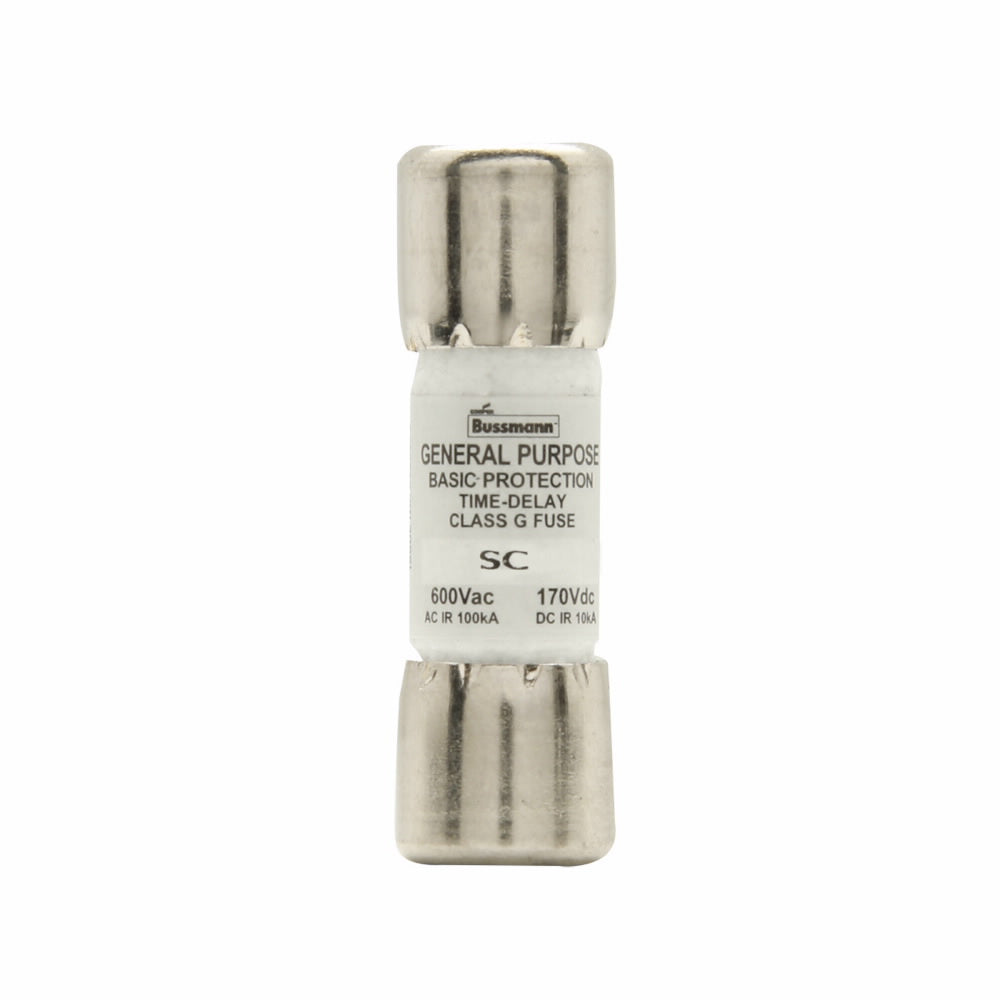

Bussmann SC-15 - Class G Fuse 15A 600V (100kA AIC Rating)

Bussmann SC-15 is a Class G low-voltage current-limiting fuse designed to provide reliable circuit protection in industrial applications. It features a 15A current rating and 600V voltage rating with an interrupting capacity of 100kA at 600V AC. The fuse construction includes a single-barrel design measuring 1-5/16 inches in length with a 0.41-inch diameter and weighs 1 lb. It complies with CE, CSA Guide 1422-01, and UL 248-5 Guide JDDZ standards for safety and performance. Typical applications include motor branch circuits, feeder circuits, and industrial control panels requiring precise overcurrent protection.

Key Features & Specifications

• Type: Class G current-limiting fuse, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 15A
• Dimensions: 1-5/16 in length x 0.41 in diameter
• Standards: CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ
• Applications: Motor branch circuits, feeder circuits, industrial control panels
• AIC rating: 100kA@600V
• Class Rating: G
• Barrels: 1
• Weight: 1 lb
• Certification: CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ

Product Identification

• UPC: 051712250153
• GTIN: 00051712250153
