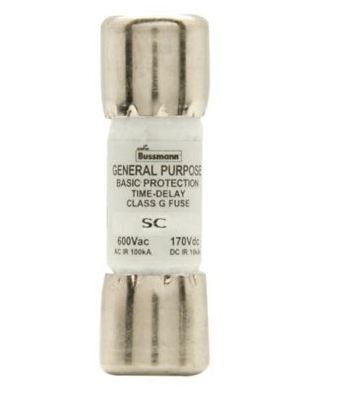

Eaton Bussmann SC-1-1/2 - Class G Fuse 1A 600V (100kA AIC Rating)

Bussmann SC-1-1/2 is a Class G low-voltage current-limiting fuse designed for comprehensive circuit protection in industrial applications. It features a 1A current rating and 600V AC voltage rating with a high interrupting capacity of 100kA at 600V AC. The fuse construction includes a single-barrel design measuring 1-5/16 inches in length and 0.41 inches in diameter, weighing 1 lb. It complies with UL 248-5 Guide JDDZ, CSA Guide 1422-01, and CE standards for safety and performance. Typical applications include protection of motor circuits, transformers, and feeder circuits in industrial control panels and power distribution systems.

Key Features & Specifications

• Type: SC Series Class G current-limiting fuse, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 1-5/16 inches length, 0.41 inches diameter
• Standards: UL 248-5 Guide JDDZ, CSA Guide 1422-01, CE certified
• Applications: Motor circuit protection, transformer protection, industrial control panels
• AIC rating: 100kA@600V AC
• Class Rating: G
• Barrels: 1
• Weight: 1 lb
• Family: SC Series
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 05171225004
• GTIN: 00051712250047
