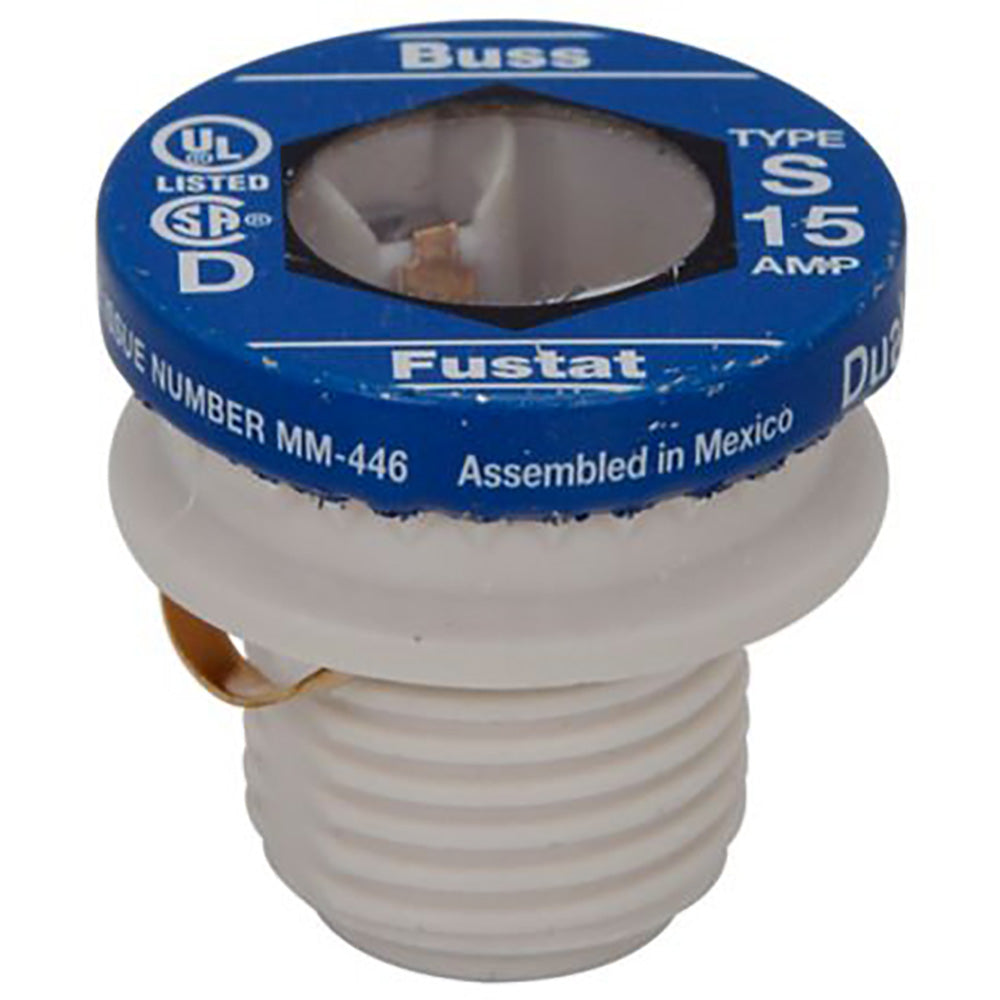

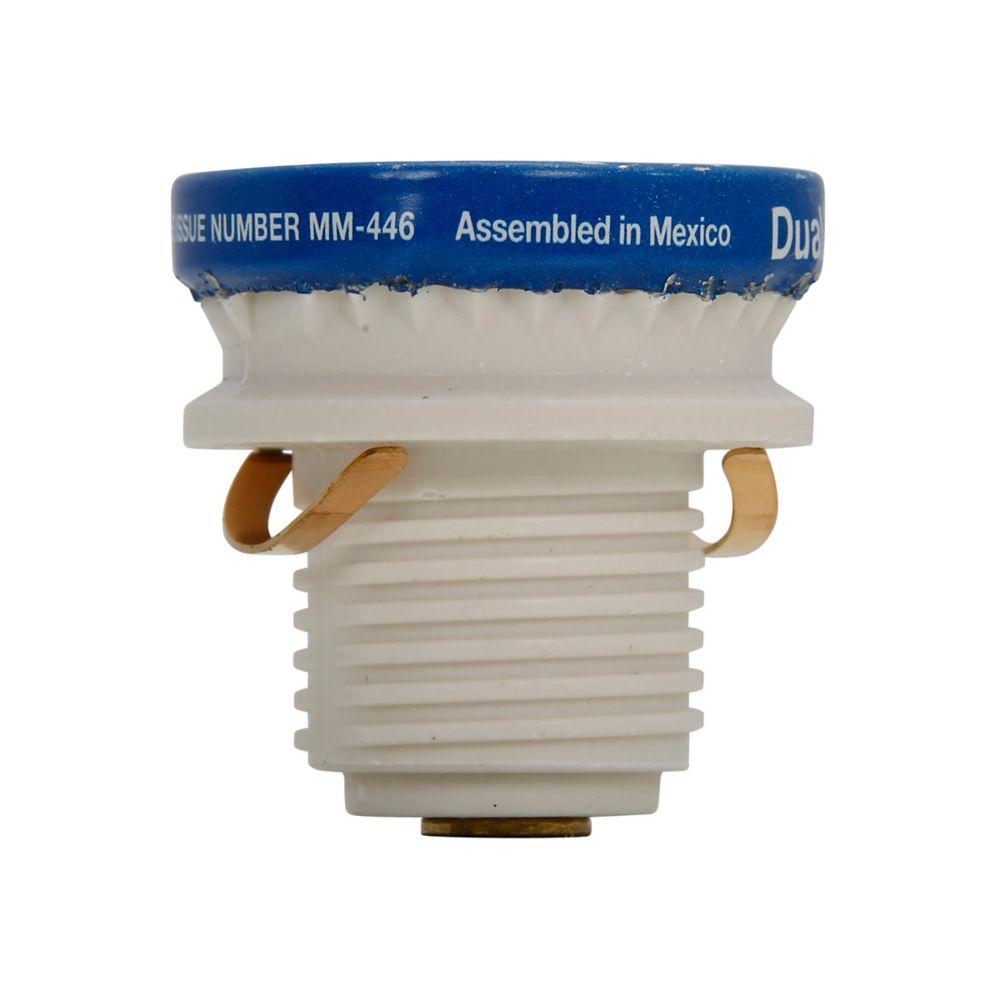

Bussmann S-15 - Class CF Time-Delay Fuse 15A 125V (10kA AIC Rating)

The Bussmann S-15 is a low-voltage time-delay fuse designed to provide reliable circuit protection against overcurrent conditions in electrical systems. It features a 125V voltage rating and is engineered with a single-barrel construction measuring 1.15 inches in diameter, weighing 5.19 lb for robust physical durability. This fuse complies with major industry standards including CE, UL 248-11 Guide JFHR, and CSA Class 1423-01, ensuring consistent performance and safety. It is typically applied in industrial settings where time-delay characteristics are required to handle temporary inrush currents without nuisance blowing, offering an interrupting rating of 10kA at 125V AC for effective short-circuit protection.

Key Features & Specifications

• Type: Low Voltage Fuse, Time-Delayed (TD) operation, single-barrel construction
• Voltage Rating: 125V AC
• Current Rating: 15A
• Dimensions: 1.15 in diameter
• Standards: CE, UL 248-11 Guide JFHR, CSA Class 1423-01
• Applications: Industrial circuit protection, motor circuits, control transformers
• Class Rating: CF
• Barrels: 1
• Velocity: TD - Time Delayed
• AIC rating: 10kA@125Vac
• Weight: 5.19 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001274559
• GTIN: 00051712101417
