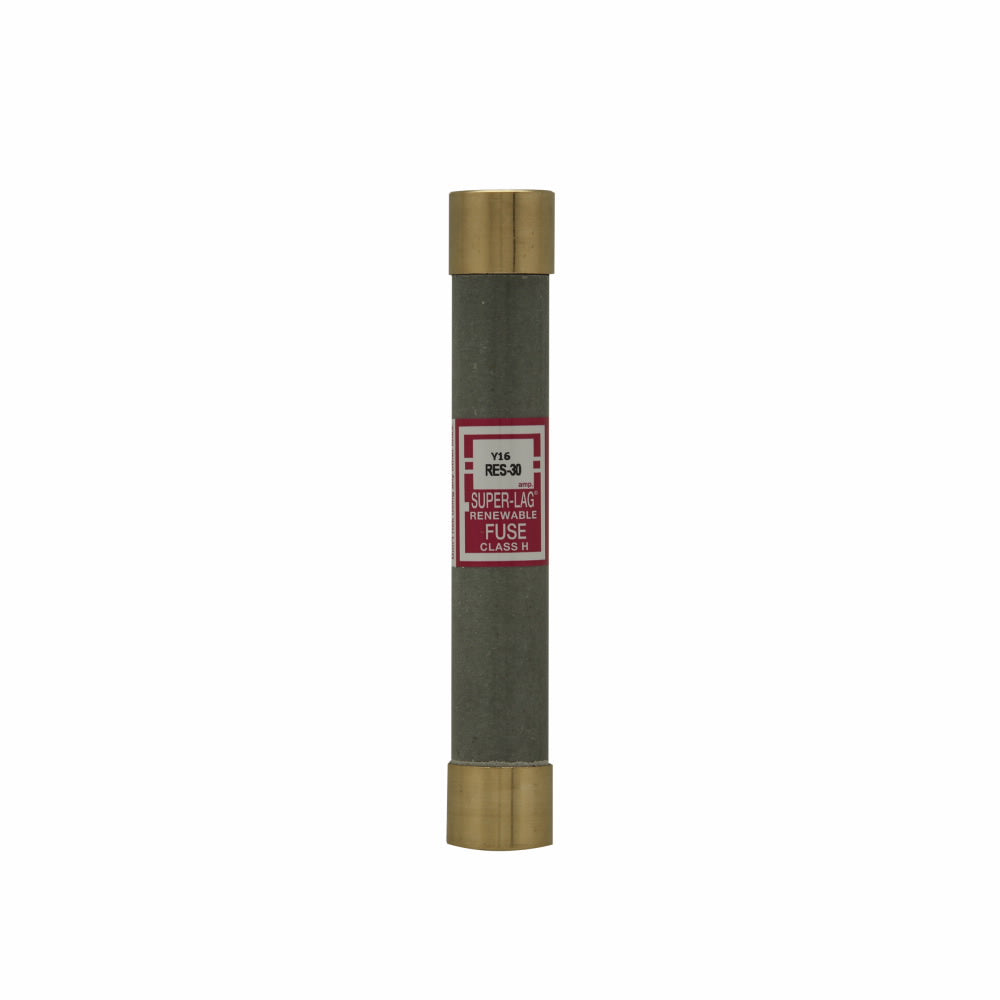

Bussmann RES-30 - Class H Time-Delay Fuse 30A 600V (10kA Interrupting Rating)

Bussmann RES-30 is a Class H Super-Lag time-delay fuse designed for industrial circuit protection applications requiring high interrupting capacity. It features a 30A current rating and 600V AC voltage rating with an interrupting rating of 10kA at 600V AC. The fuse construction includes a single-barrel design with dimensions of 5 inches in length and 0.81 inches in diameter, weighing 1 lb, providing reliable overload and short-circuit protection. It complies with industry standards for Class H fuses and is typically used in motor branch circuits, transformers, and other industrial equipment requiring time-delay characteristics to handle temporary inrush currents without nuisance opening.

Key Features & Specifications

• Type: Class H time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 5" length × 0.81" diameter
• Standards: Class H fuse standards
• Applications: Motor circuits, transformers, industrial equipment
• AIC rating: 10kA@600V
• Class Rating: H
• Barrels: 1
• Diameter: 0.81 inches
• Weight: 1 lb

Product Identification

• UPC: 051712110303
• GTIN: 00051712110303
