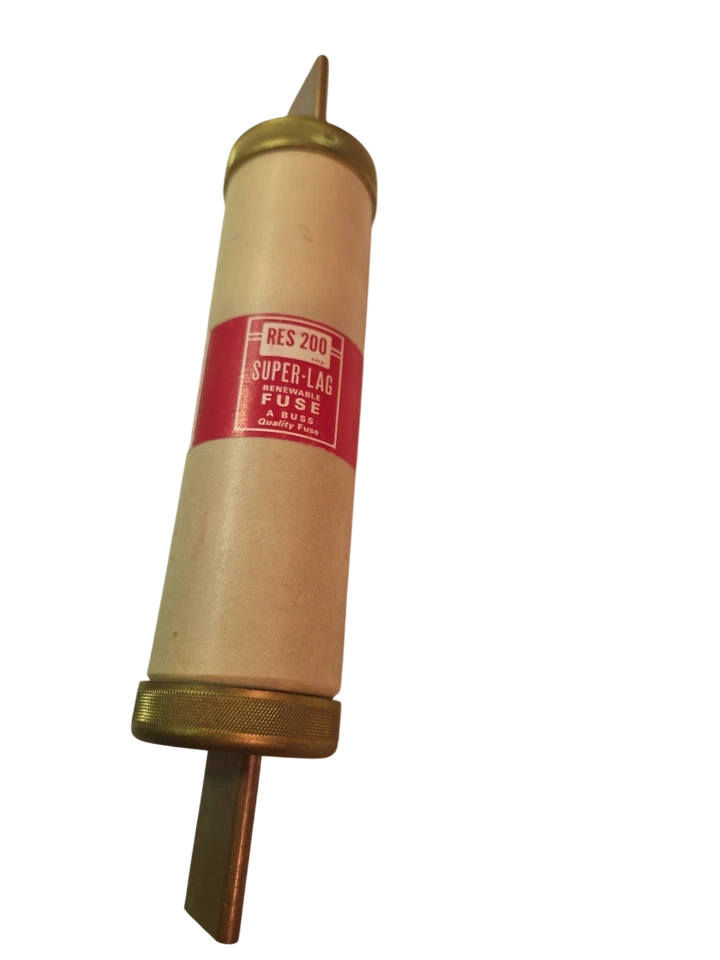

Bussmann RES-200 - Class H Time Delay Fuse 200A 600V (10kA AIC Rating)

Bussmann RES-200 is a Class H time-delay fuse designed for robust circuit protection in industrial power distribution systems. It features a 200A current rating and 600V voltage rating, providing reliable overload and short-circuit protection. The single-barrel construction with time-delay characteristics prevents nuisance tripping from motor starting currents and other temporary overloads. This fuse meets industry standards for 10kA interrupting capacity at 600V, ensuring safe operation under fault conditions. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where durable protection is required.

Key Features & Specifications

• Type: Class H time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: Standard Class H dimensions
• Standards: UL/CSA listed
• Applications: Motor circuits, feeder protection, industrial control panels
• AIC rating: 10kA@600V
• Class Rating: H
• Barrels: 1
• Velocity: Time Delay
• Family: Super-Lag
• Type: RES
• Weight: 1 lb

Product Identification

• UPC: 051712112000
