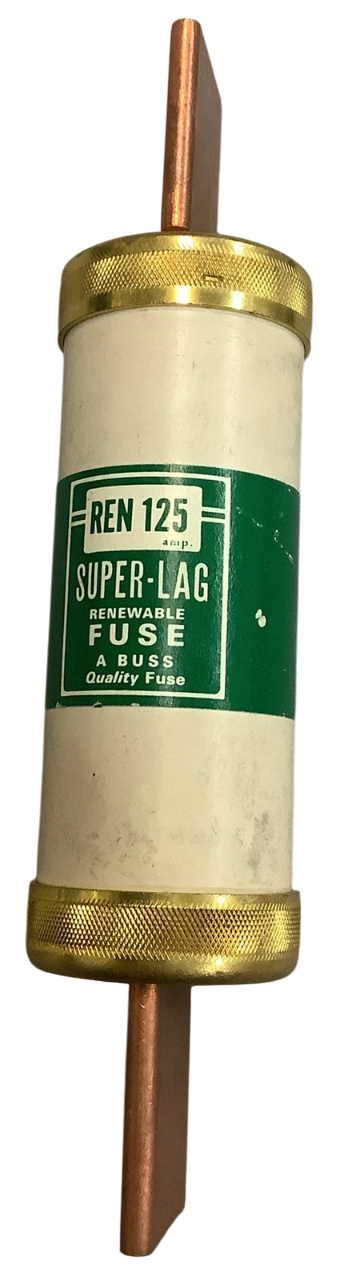

Bussmann REN-125 - Class H Super-Lag Fuse 125A (10kA AIC @250V)

The Bussmann REN-125 is a Class H Super-Lag time-delay fuse designed for robust circuit protection in industrial low-voltage applications. It features a 125A current rating and 250V AC voltage rating, providing reliable overload and short-circuit protection with a 10kA interrupting rating at 250V. Constructed as a single-barrel fuse with a 1.06-inch diameter, this 1 lb industrial-grade component meets stringent industry standards for safety and performance. The fuse complies with UL/CSA requirements for Class H fuses, ensuring proper protection of motors, transformers, and feeder circuits in commercial and industrial power distribution systems.

Key Features & Specifications

• Type: Class H Super-Lag time-delay fuse, single barrel construction
• Voltage Rating: 250V AC
• Current Rating: 125A
• Dimensions: 1.06-inch diameter
• Standards: UL/CSA Class H compliance
• Applications: Motor protection, transformer circuits, industrial feeder circuits
• AIC rating: 10kA@250V
• Class Rating: H
• Barrels: 1
• Weight: 1 lb
• Family: Super-Lag
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 051712101257
