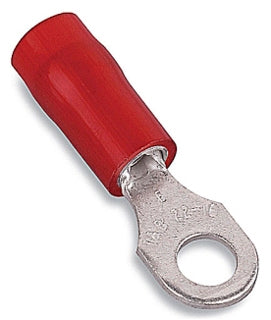

Thomas & Betts RA853 - Ring Terminal 600V 22-16 AWG (Red Nylon)
Thomas & Betts RA853 - Ring Terminal 600V 22-16 AWG (Red Nylon)

Thomas & Betts RA853 - Ring Terminal 600V 22-16 AWG (Red Nylon)

Thomas & Betts
Price
Save $176.66
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Thomas & Betts RA853 is a standard insulated ring terminal designed for secure, reliable electrical connections in wiring applications. It is rated for 600V and supports a temperature rating of 105°C, with a copper construction and electro-tin plating for conductivity and corrosion resistance. The terminal features a red nylon insulation sleeve for high dielectric strength and easy identification, weighs 55 lb, and measures 0.86 inches in length by 0.26 inches in width. It complies with UL 486A/B/C/310, CSA C22.2, and MIL Specification MS-25036-102, with a flammability rating of UL 94 V-2. This terminal is suitable for industrial environments requiring insulated ring terminals for wire sizes 22 to 16 AWG with a #6 stud size.

Key Features & Specifications
  • Type: Standard insulated ring terminal
  • Wire Size: 22-16 AWG
  • Stud Size: #6
  • Material: Copper, electro-tin plated
  • Insulation: Red nylon
  • Voltage Rating: 600V
  • Temperature Rating: 105°C
  • Flammability Rating: UL 94 V-2
  • Approvals: UL 486A/B/C/310, CSA C22.2
  • MIL Specification: MS-25036-102
  • Length: 0.86 in
  • Width: 0.26 in
  • Weight: 55 lb
  • Family: RA Series


Product Identification
  • UPC: 786210817354
  • GTIN: 00786210817354
