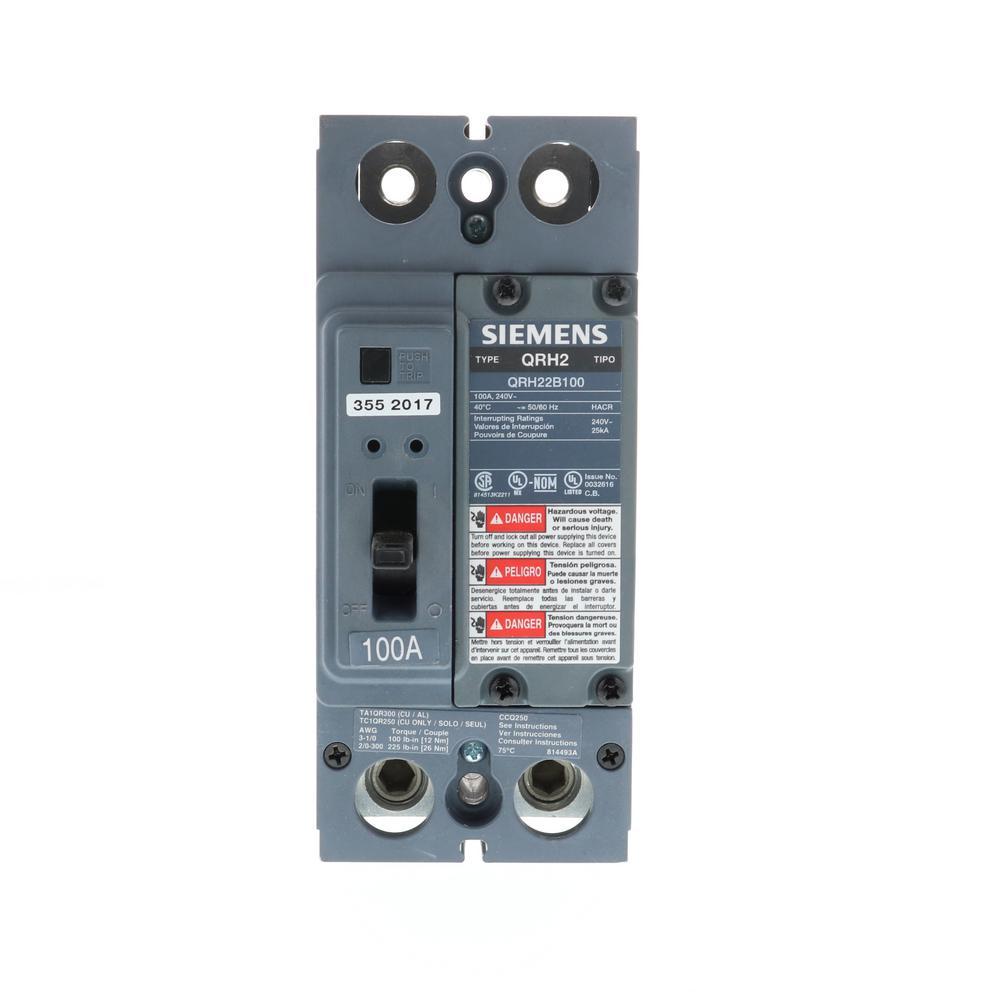

Siemens QRH22B100L - Molded Case 100A 240V 2-Pole
Siemens QRH22B100L - Molded Case 100A 240V 2-Pole

Siemens QRH22B100L - Molded Case 100A 240V 2-Pole

Siemens
Price
Save $-604.01
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Siemens QRH22B100L Circuit Breaker - Molded Case 100A 240V 2-Pole Thermal Magnetic The Siemens QRH22B100L is a molded case circuit breaker from the QR Series, designed to provide overcurrent protection through its thermal magnetic trip mechanism. This 2-pole unit is rated for 240V AC and 100A continuous current, with a 25kA interrupting capacity at 240V for robust fault handling. The breaker measures 7.087 x 4.331 x 3.937 inches and weighs 3.197 lb, featuring a feed-thru connection configuration for straightforward installation. It complies with industry standards for industrial and commercial electrical distribution systems, offering long time and instantaneous protection functions. This breaker is suitable for 1-phase applications in panelboards and load centers, providing reliable circuit protection in manufacturing facilities, commercial buildings, and other industrial environments.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic
  • Voltage Rating: 240V
  • Current Rating: 100A
  • Dimensions: 7.087 x 4.331 x 3.937 inch
  • Standards: Industry standard for industrial electrical distribution
  • Applications: Industrial and commercial circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Coil Voltage Maximum: Not applicable
  • Temp Rating: Not specified
  • Shipping Dimensions: 7.087 x 4.331 x 3.937 inch
  • Phase: 1
  • Voltage: 240V
  • Amperage: 100A
  • AIC rating: 25kA@240V
  • Connection: Feed-Thru
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: QRH2
  • Trip Type: Thermal Magnetic
  • Panel Type: Not specified
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Not applicable
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not applicable
  • Impedance: Not applicable
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Panel mount
  • Hz: 50/60 Hz
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not applicable
  • CPT: Not applicable
  • Full Load Amps: Not applicable
  • Dist Voltage: Not applicable
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: Not applicable
  • Full Load Amp Minimum: Not applicable
  • Enclosure: Not specified
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: Not applicable
  • Amperage Maximum: 100A
  • Amperage Minimum: Not applicable
  • Nema Rating: Not specified
  • Switch Style: Not applicable
  • Wire Size: Not specified
  • Certification: UL listed
  • Circuit Breaker Mounting Style: Panel mount
  • Terminal Connection: Feed-Thru
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 1-Phase
  • Standards: UL 489
  • Compatible Frames: QR Series
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: QRH2
  • Current Rating: 100A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not applicable
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: Not specified
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 804766136252
  • GTIN: 00804766136252
