Square D QOU30001 - 3-Pole 125A Non-Automatic Breaker 240V
Square D QOU30001 - 3-Pole 125A Non-Automatic Breaker 240V

Square D QOU30001 - 3-Pole 125A Non-Automatic Breaker 240V

Square D
Price
Save $279.59
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

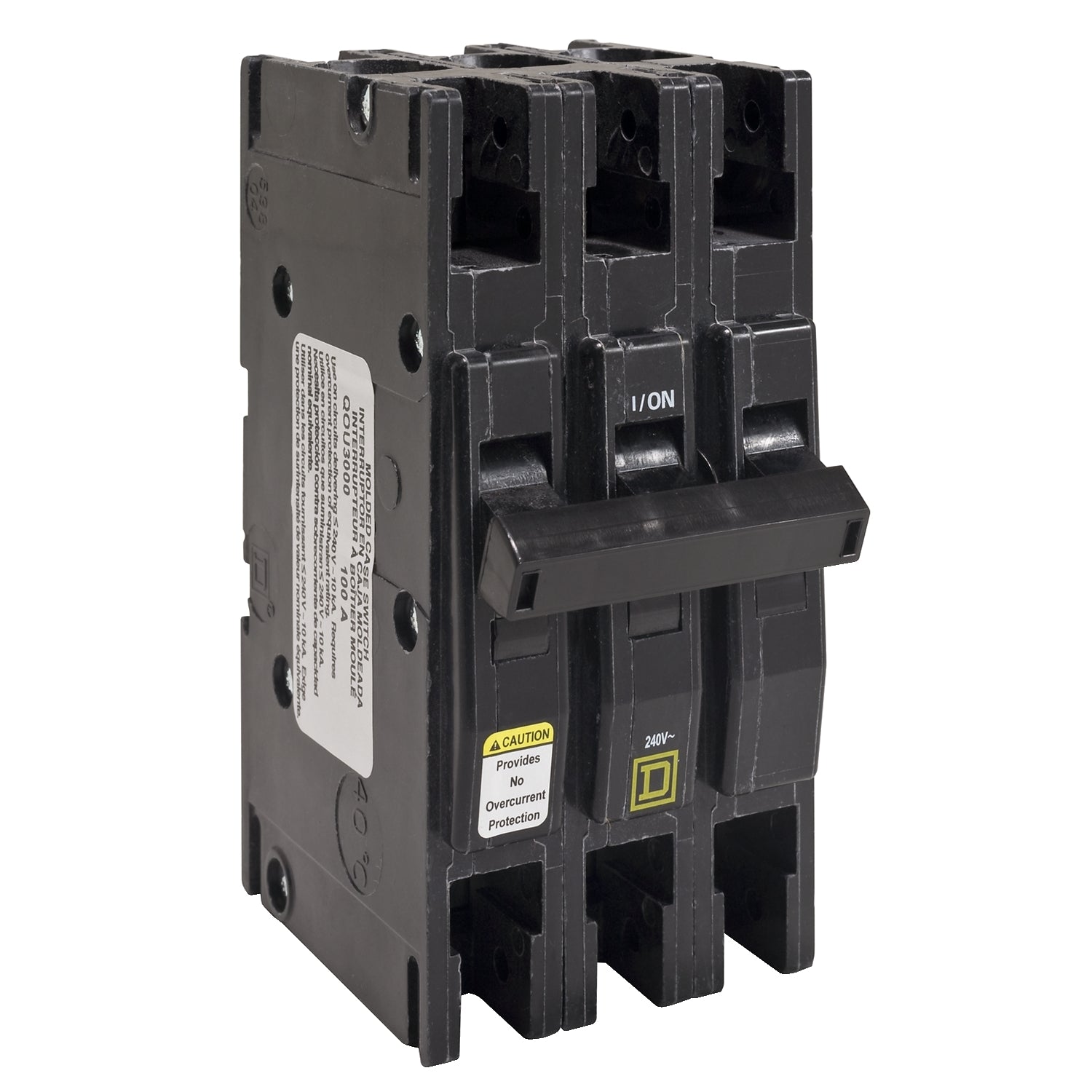

The Square D QOU30001 is a 3-pole molded case circuit breaker from the QO Series, designed for non-automatic switching applications where overcurrent protection is not required. It is rated for 240V AC, 125A continuous current, and provides a 10kA interrupting capacity at 240V, with a plug-in connection for QO load centers. This unit measures 4.45 inches in height, 2.25 inches in width, and 2.95 inches in depth, weighs 1.35 lb, and accepts wire sizes from AWG 12 to AWG 2/0 for both aluminum and copper conductors. Manufactured by Schneider Electric in Mexico, it complies with industry standards for molded case circuit breakers and is typically used in industrial and commercial applications requiring a non-automatic disconnect or switch function for 3-phase systems.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Non-Automatic
  • Voltage Rating: 240V AC
  • Current Rating: 125A
  • Dimensions: 4.45 in x 2.25 in x 2.95 in (Height x Width x Depth)
  • Standards: Industry standard molded case circuit breaker compliance
  • Applications: Industrial and commercial non-automatic disconnect/switching for 3-phase systems
  • Poles: 3
  • Connection: Plug-In
  • Protection: Non-Automatic (No Overcurrent Protection)
  • Wire Size: AWG 12...AWG 2/0 aluminium/copper
  • AIC rating: 10kA@240V
  • Phase: 3
  • Weight: 1.35 lb
  • Manufacturer: Schneider Electric
  • Family: QO Series
  • Country of Origin: Mexico
  • Functions: NA - No Overcurrent Protection
