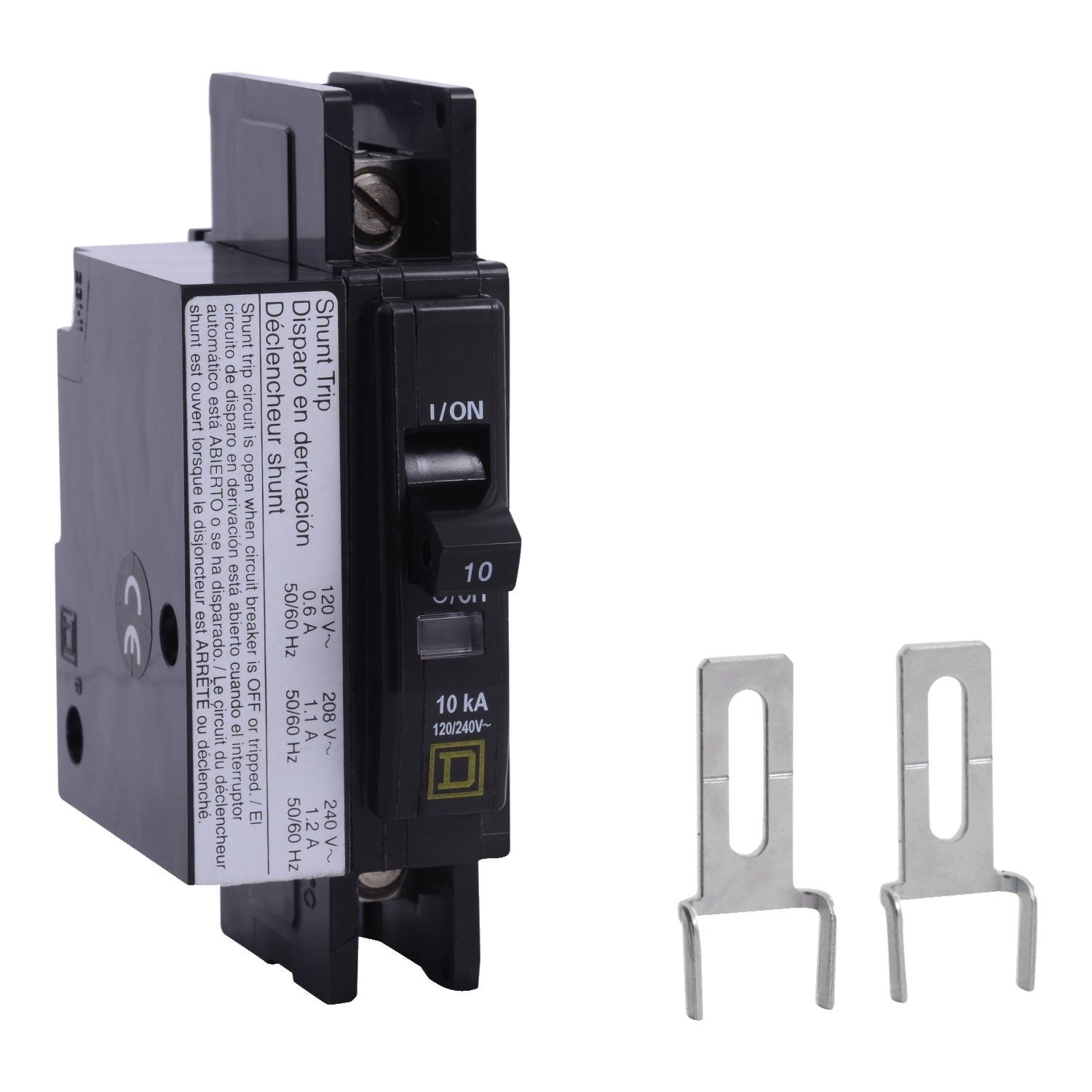

Square D QOU1101021 - Molded Case 10A 120V 1-Pole Breaker
Square D QOU1101021 - Molded Case 10A 120V 1-Pole Breaker

Square D QOU1101021 - Molded Case 10A 120V 1-Pole Breaker

Square D
Price
Save $90.87
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Square D QOU1101021 is a 1-pole molded case circuit breaker from the QOU Series, designed to provide overcurrent protection for branch circuits. It operates at 120V with a 10A current rating and a 10kA interrupting capacity, utilizing a thermal-magnetic trip mechanism for long-time and instantaneous fault response. This bolt-on breaker measures 4.05 in (102.87 mm) x 1.5 in (38.1 mm) x 2.95 in (74.93 mm) and weighs 0.66 lb, accepting wire sizes from AWG 14 to AWG 2 in aluminum or copper. It is rated for single-phase operation within a temperature range of -13 to 158 °F (-25 to 70 °C). Typical applications include industrial control panels and lighting circuits requiring reliable, compact circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, QOU Series, Thermal Magnetic
  • Voltage Rating: 120V
  • Current Rating: 10A
  • Dimensions: 4.05 in (102.87 mm) x 1.5 in (38.1 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
  • Standards: UL 489, CSA C22.2 No. 5
  • Applications: Branch circuit protection in industrial control panels and lighting circuits
  • Switch Type: Bolt-On
  • Configuration: 1-Pole
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Shipping Dimensions: 4.05 in x 1.5 in x 2.95 in
  • Phase: 1
  • Voltage: 120V
  • Amperage: 10A
  • AIC rating: 10kA@120V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip
  • Frame Size: QOU
  • Trip Type: Thermal Magnetic
  • Panel Type: QO
  • Breaker Type: Molded Case
  • Wire Size: AWG 14...AWG 2 aluminium/copper
  • Metal Type: Copper
  • Panel Style: QO
  • Bus Type: Bolt-On
  • Mounting: Bolt-On
  • Hz: 50/60
  • Horse Power: 0.5 HP at 120V
  • Full Load Amps: 10A
  • Enclosure: Open
  • Circuit Breaker Mounting Style: Bolt-On
  • Terminal Connection: Lug
  • Frequency Rating: 50/60 Hz
  • Phase Connection: Single Phase
  • Standards: UL 489, CSA C22.2 No. 5
  • Installation Type: Fixed
  • Item QTY: 1
  • Breaker Frame: QOU
  • Current Rating: 10A
  • Operating Temperature Maximum Celsius: 70 °C


Product Identification
  • UPC: 785901123456
  • GTIN: 00785901123456
