Square D QOB2251021 - 25A 2-Pole Bolt-On Breaker
Square D QOB2251021 - 25A 2-Pole Bolt-On Breaker

Square D QOB2251021 - 25A 2-Pole Bolt-On Breaker

Square D
Price
Save $20.52
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

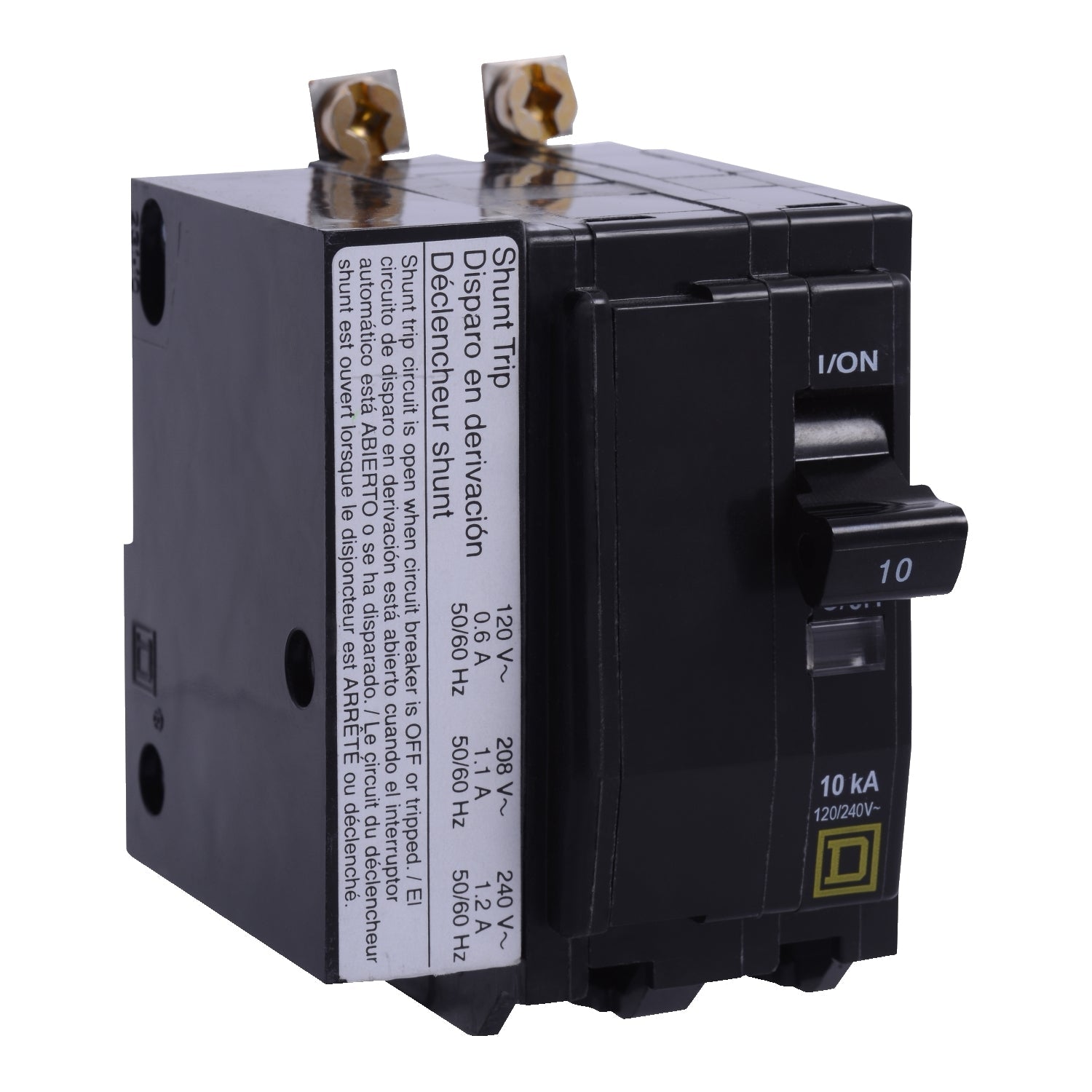

The Square D QOB2251021 is a 2-pole, 25A molded case circuit breaker from the QOB Series, designed for overcurrent protection in residential and light commercial applications. It operates at 120/240VAC with a 10kA interrupting capacity at 120V, featuring a thermal-magnetic trip mechanism for long-time and instantaneous protection. This bolt-on breaker measures 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) and weighs 0.96 lb, with a pressure plate terminal connection accepting AWG 14 to AWG 8 copper or aluminum wire. It is UL Listed and CSA certified, with an operating temperature range of -13°F to 158°F (-25°C to 70°C), suitable for single-phase panelboards in industrial and commercial environments.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic
  • Voltage Rating: 120/240VAC
  • Current Rating: 25A
  • Dimensions: 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Standards: CSA, UL Listed
  • Applications: Residential and light commercial panelboards
  • Poles: 2
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip
  • Wire Size: AWG 14 to AWG 8, Copper/Aluminum
  • Terminal Connection: Pressure Plate
  • Phase: 1
  • AIC rating: 10kA@120V
  • Temp Rating: -13°F to 158°F (-25°C to 70°C)
  • Weight: 0.96 lb
  • Country of Origin: Mexico
  • Family: QOB Series
  • Type: QOB
  • Item Subcategory: Molded Case
  • Manufacturer: Schneider Electric


Product Identification
  • UPC: 785901729716
