Square D QO342L225G - Load Center 225A 240V 3-Phase
Square D QO342L225G - Load Center 225A 240V 3-Phase

Square D QO342L225G - Load Center 225A 240V 3-Phase

Square D
Price
Save $-81.69
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

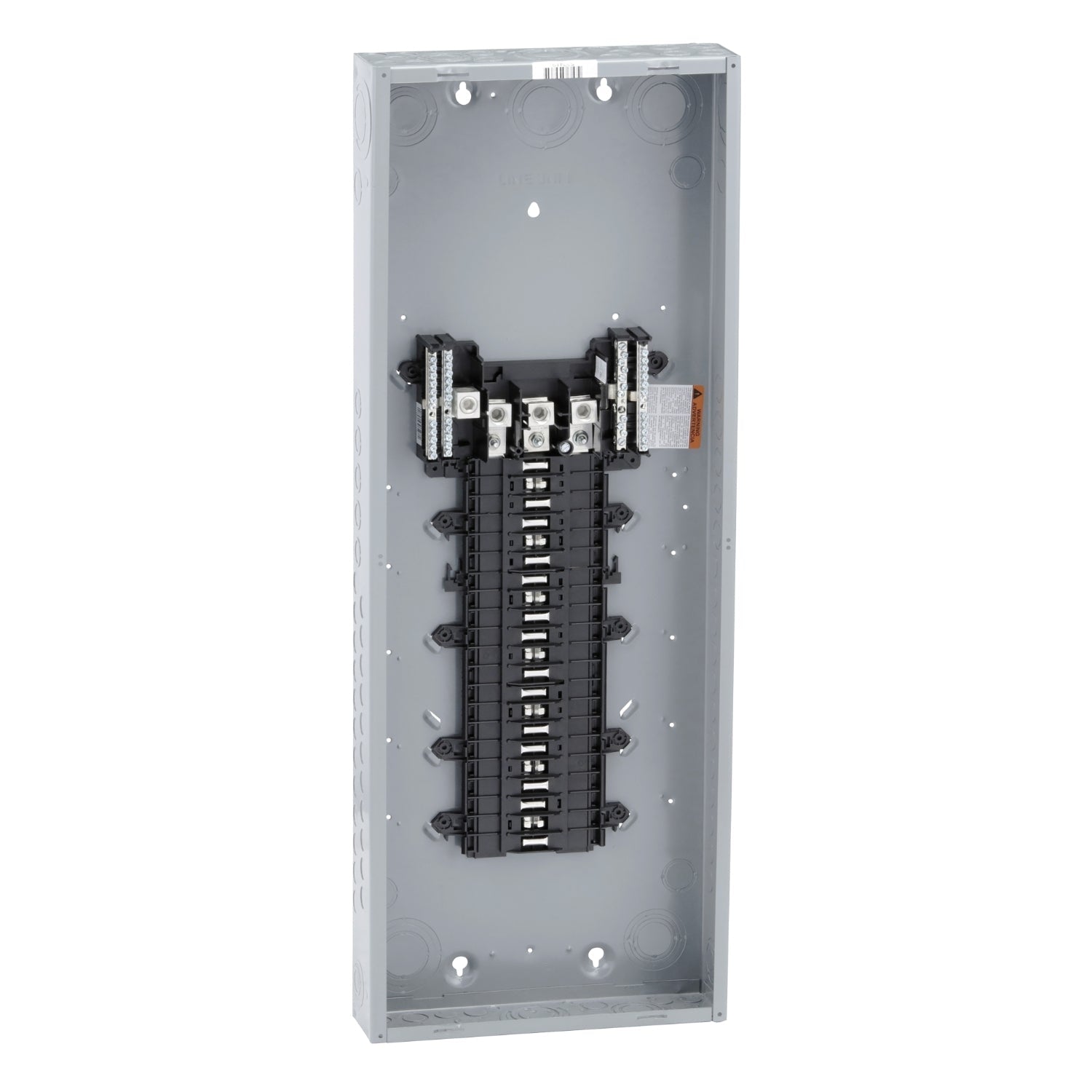

Square D QO342L225G is a 225A three-phase main circuit breaker load center from the QO Series by Schneider Electric, designed to provide overcurrent protection and serve as a primary disconnect for commercial and industrial power distribution systems. It operates at a voltage rating of 240V and a current rating of 225A, supporting wire sizes from AWG 6 to 300 kcmil for both aluminum and copper conductors. The unit measures 38.0 in (965 mm) in height, 14.3 in (362 mm) in width, and 3.8 in (97 mm) in depth, weighs 20.699 lb, and is constructed with a 4-wire configuration for three-phase applications. This load center is compliant with industry standards for safety and performance, with a temperature rating of -13 to 158 °F (-25 to 70 °C). Typical applications include main breaker panels in light industrial facilities, commercial buildings, and large residential complexes requiring a 225A service entrance.

Key Features & Specifications
  • Type: Main circuit breaker load center, QO Series, three-phase
  • Voltage Rating: 240V
  • Current Rating: 225A
  • Dimensions: 38.0 in (965 mm) x 14.3 in (362 mm) x 3.8 in (97 mm) (Height x Width x Depth)
  • Weight: 20.699 lb
  • Wire: 4
  • Wire Size: AWG 6 to 300 kcmil, Aluminum/Copper
  • Phase: 3
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Country of Origin: United States
  • Family: QO Series
  • Item Subcategory: Load Center


Product Identification
  • UPC: 785901295532
  • GTIN: 00785901295532
