Square D QO130L150G - Main Breaker Load Center 150A 240V
Square D QO130L150G - Main Breaker Load Center 150A 240V

Square D QO130L150G - Main Breaker Load Center 150A 240V

Square D
Price
Save $246.37
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

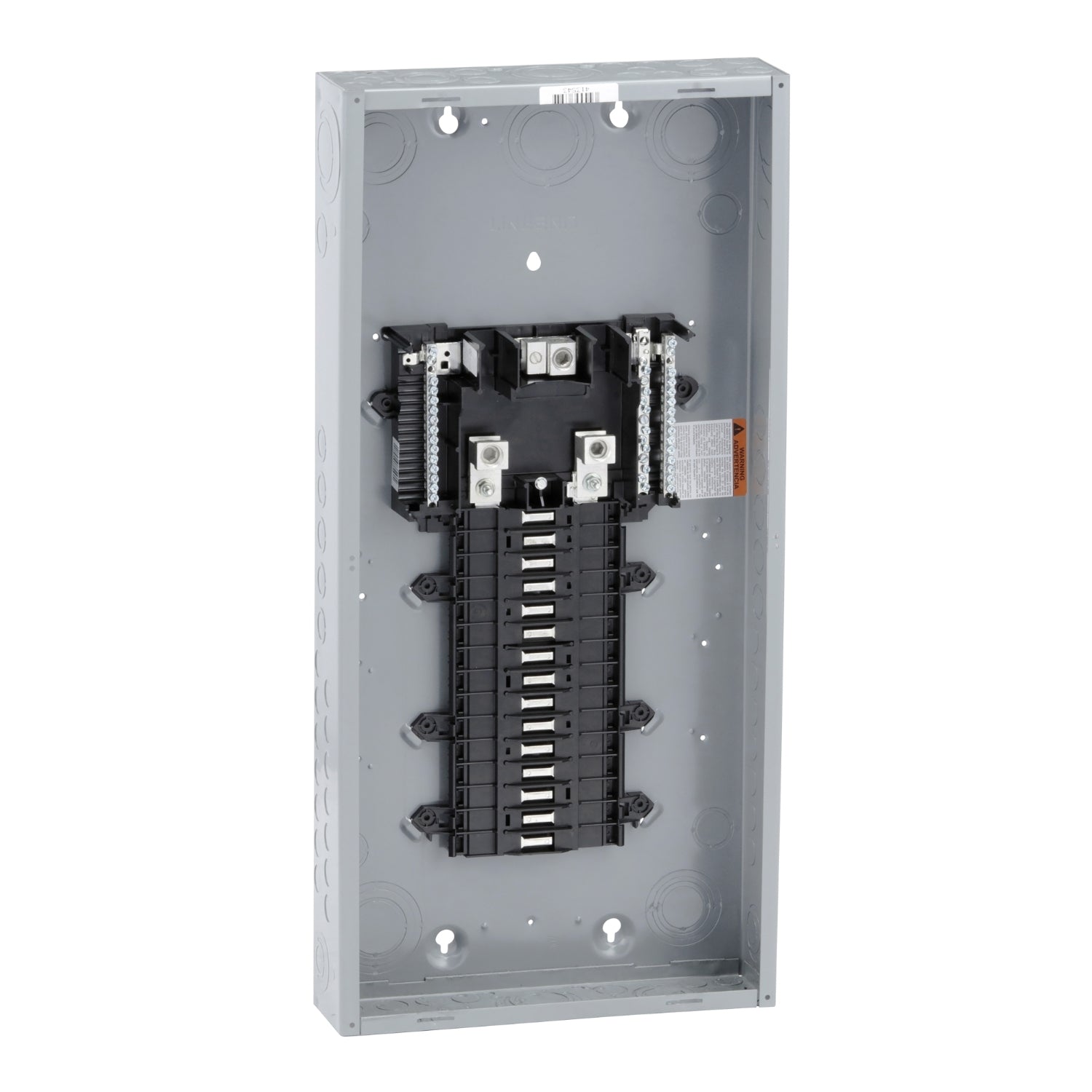

Square D QO130L150G is a 150A main circuit breaker load center designed for overcurrent protection and service disconnection in residential and light commercial power distribution systems. This single-phase unit operates at 240V AC with a 150A continuous current rating, providing reliable branch circuit protection through its QO series plug-on design. The load center weighs 15.75 lb, features a NEMA 1 indoor enclosure for surface or flush mounting, and accommodates 3-wire configurations with copper or aluminum conductors. It complies with UL 67 and CSA standards for safety and performance, ensuring code-compliant installation in main panel applications. Typical uses include serving as the primary distribution point for lighting, appliance, and general-purpose circuits in homes, small offices, and workshops.

Key Features & Specifications
  • Type: Main circuit breaker load center, QO series, plug-on design
  • Voltage Rating: 240V AC
  • Current Rating: 150A
  • Dimensions: Not specified
  • Standards: UL 67, CSA certified
  • Applications: Residential and light commercial power distribution
  • Switch Type: Main breaker
  • Configuration: Single-phase, 3-wire
  • Coil Voltage Maximum: Not applicable
  • Temp Rating: Not specified
  • Shipping Dimensions: Not specified
  • Phase: 1
  • Voltage: 240V
  • Amperage: 150A
  • AIC rating: Not specified
  • Connection: Plug-on
  • Poles: 2
  • Protection: Overcurrent
  • Functions: Service disconnect, branch circuit protection
  • Frame Size: Not specified
  • Trip Type: Thermal-magnetic
  • Panel Type: Load center
  • Breaker Type: Main
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Not specified
  • Metal Type: Steel enclosure
  • Panel Style: NEMA 1
  • Bus Type: Tin-plated aluminum
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not specified
  • Class Rating: Not specified
  • Diameter: Not specified
  • Velocity: Not specified
  • Clip Center: Not specified
  • Clas: Not specified
  • Mounting: Surface or flush
  • Hz: 60 Hz
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: 150A
  • Dist Voltage: Not specified
  • Bucket Size: Not specified
  • Bucket Style: Not specified
  • Bucket Type: Not specified
  • Full Load Amp Maximum: 150A
  • Full Load Amp Minimum: Not specified
  • Enclosure: NEMA 1
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: 3
  • Amperage Maximum: 150A
  • Amperage Minimum: Not specified
  • Nema Rating: 1
  • Switch Style: Main breaker
  • Wire Size: Not specified
  • Certification: UL, CSA
  • Circuit Breaker Mounting Style: Plug-on
  • Terminal Connection: Copper/aluminum rated
  • Frequency Rating: 60 Hz
  • Phase Connection: Single-phase
  • Standards: UL 67, CSA
  • Compatible Frames: QO series
  • Installation Type: Surface or flush
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: Not specified
  • Current Rating: 150A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: Not specified
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • GTIN: 785901848011
