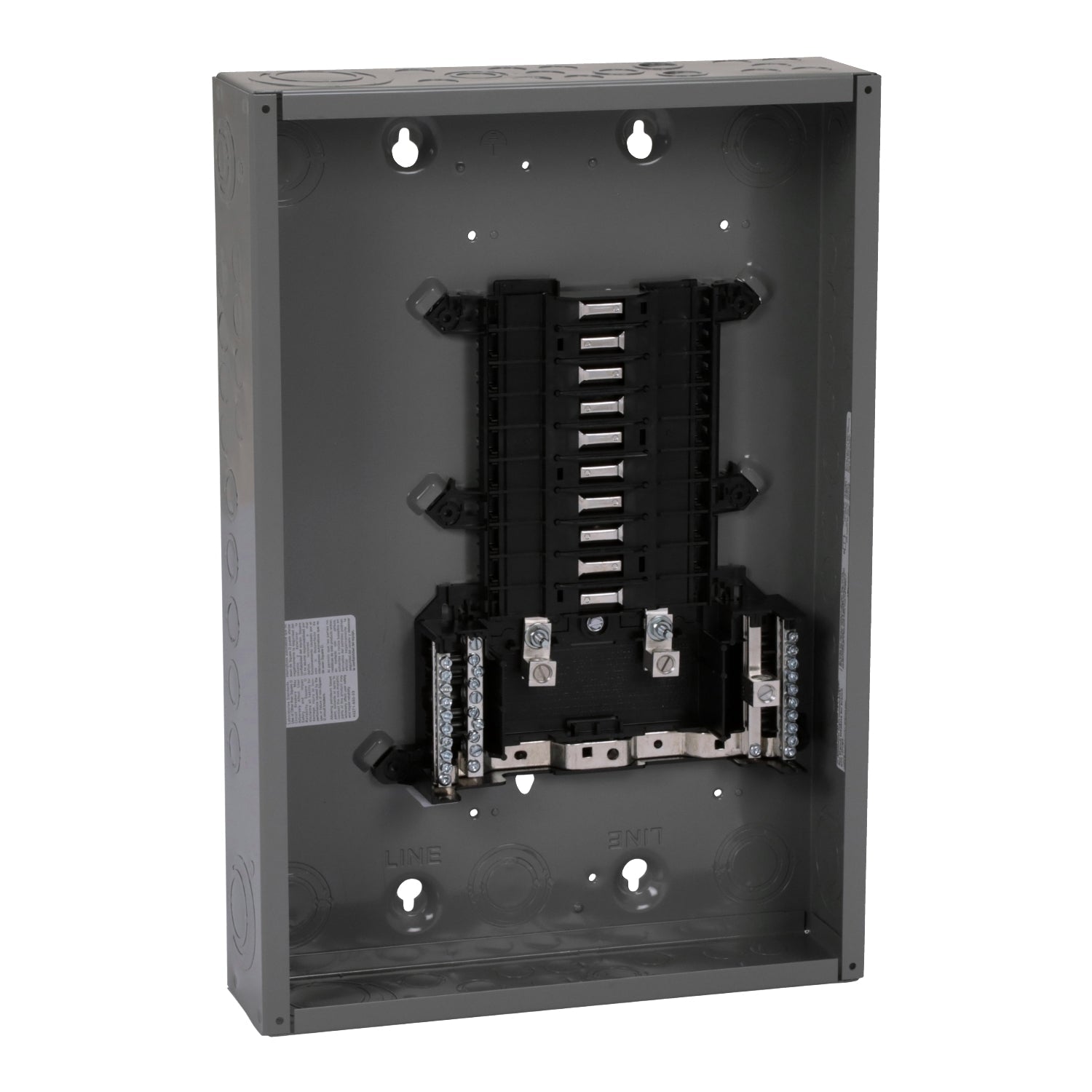

Square D QO12030L125WG - Main Lug Load Center 125A
Square D QO12030L125WG - Main Lug Load Center 125A

Square D QO12030L125WG - Main Lug Load Center 125A

Square D
Price
Save $-205.71
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D QO12030L125WG is a main lug load center designed for residential and light commercial power distribution and circuit protection. This unit supports a 125A maximum current rating at 120/240V AC, providing reliable overcurrent protection for branch circuits. The load center features a 30-space, 30-circuit configuration with a single-phase, 3-wire design, housed in a NEMA 1 enclosure for indoor use. It is UL-listed and compliant with industry safety standards, ensuring dependable performance in typical electrical service applications.

Key Features & Specifications
  • Type: Main Lug Load Center, indoor NEMA 1 enclosure
  • Voltage Rating: 120/240V AC
  • Current Rating: 125A
  • Dimensions: Not specified
  • Standards: UL listed
  • Applications: Residential and light commercial power distribution
  • Switch Type: Main lug only (no main breaker)
  • Configuration: 30-space, 30-circuit
  • Coil Voltage Maximum: Not applicable
  • Temp Rating: Not specified
  • Shipping Dimensions: Not specified
  • Phase: Single-phase
  • Voltage: 120/240V AC
  • Amperage: 125A
  • AIC rating: Not specified
  • Connection: 3-wire
  • Poles: 1 and 2 pole compatible
  • Protection: Overcurrent protection
  • Functions: Power distribution
  • Frame Size: Not specified
  • Trip Type: Not applicable
  • Panel Type: Load center
  • Breaker Type: QO (Square D) compatible
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Not specified
  • Metal Type: Steel enclosure
  • Panel Style: Main lug
  • Bus Type: Tin-plated aluminum
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not applicable
  • Impedance: Not specified
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Surface or flush
  • Hz: 60 Hz
  • Coil Material: Not applicable
  • Horse Power: Not applicable
  • Aux Contacts: Not applicable
  • CPT: Not applicable
  • Full Load Amps: Not applicable
  • Dist Voltage: 120/240V AC
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: Not applicable
  • Full Load Amp Minimum: Not applicable
  • Enclosure: NEMA 1
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: Not specified
  • Amperage Maximum: 125A
  • Amperage Minimum: Not specified
  • Nema Rating: 1
  • Switch Style: Main lug
  • Wire Size: Not specified
  • Certification: UL listed
  • Circuit Breaker Mounting Style: Plug-on
  • Terminal Connection: Aluminum/copper rated
  • Frequency Rating: 60 Hz
  • Phase Connection: Single-phase
  • Standards: UL 67
  • Compatible Frames: QO
  • Installation Type: Indoor
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: Not applicable
  • Current Rating: 125A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not applicable
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: Not specified
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: Not available
  • GTIN: Not available
Manufacturer: Schneider Electric Country of Origin: United States Weight: 12 lb
