American/Federal Pacific QMQB9036LH - Fusible Safety Switch 1200A 600V (3-Pole 200kA AIC)
American/Federal Pacific QMQB9036LH - Fusible Safety Switch 1200A 600V (3-Pole 200kA AIC)
American/Federal Pacific QMQB9036LH - Fusible Safety Switch 1200A 600V (3-Pole 200kA AIC)
American/Federal Pacific QMQB9036LH - Fusible Safety Switch 1200A 600V (3-Pole 200kA AIC)

American/Federal Pacific QMQB9036LH - Fusible Safety Switch 1200A 600V (3-Pole 200kA AIC)

American/Federal Pacific
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

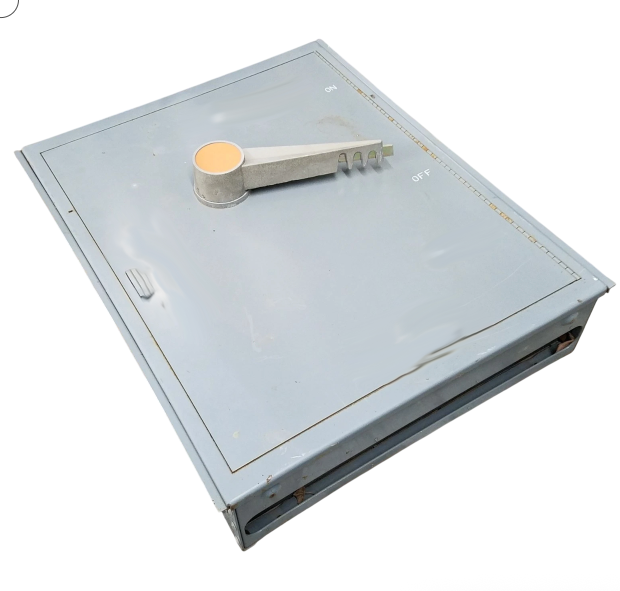

American/Federal Pacific QMQB9036LH is a panel-mounted fusible safety switch designed for industrial power distribution protection. This heavy-duty switch features a 600V voltage rating and 1200A current capacity for robust electrical control in demanding environments. Constructed with a 3-pole single configuration and weighing 95 lb, the unit provides reliable operation with Class L fuse compatibility and NEMA 1 enclosure rating. The switch meets industry standards with a 200kA interrupting rating at 480V AC for effective short-circuit protection. Typical applications include industrial plant main disconnects, machinery control centers, and heavy equipment power distribution systems requiring three-phase circuit protection.

Key Features & Specifications
  • Type: Panel-mounted fusible safety switch, QMQB family
  • Voltage Rating: 600V AC
  • Current Rating: 1200A
  • Configuration: Single
  • Poles: 3
  • Phase: 3-phase
  • AIC Rating: 200kA @ 480V AC
  • Fuse Class: L
  • NEMA Rating: 1
  • Weight: 95 lb
  • Switch Style: Fusible
  • Item Subcategory: Panel Mount
