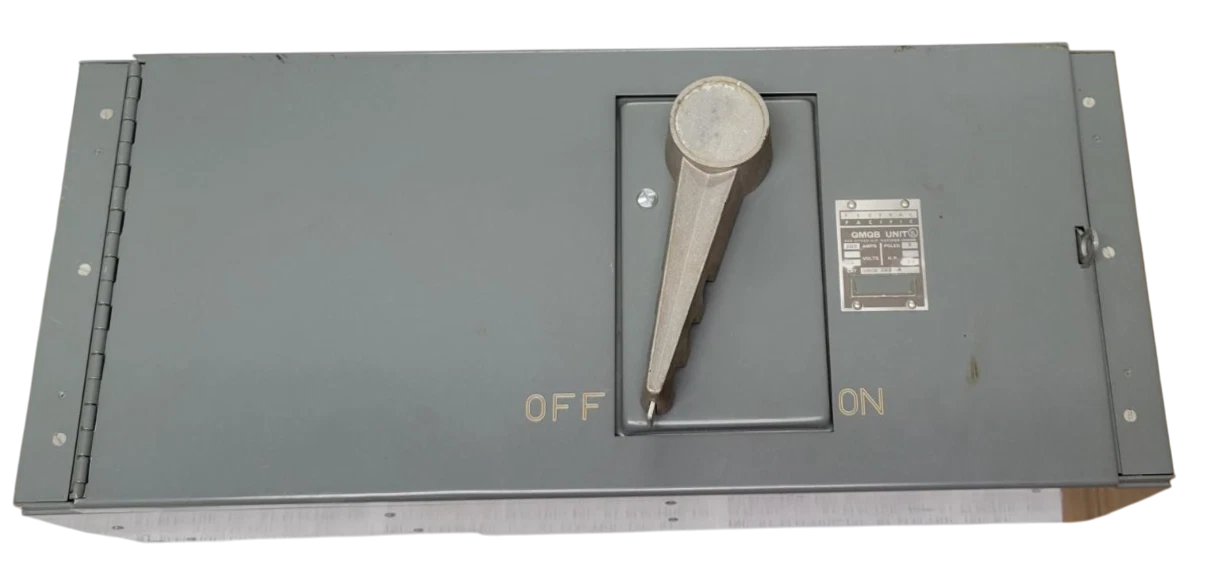

American/Federal Pacific QMQB2032B - Fusible Safety Switch 200A 3-Pole (200kA AIC @ 240V)

American/Federal Pacific QMQB2032B is a panel-mounted fusible safety switch designed for industrial circuit protection and isolation. This three-phase unit features a 240V voltage rating and 200A current rating, providing robust electrical control in demanding environments. The switch is constructed with a NEMA 1 enclosure and weighs 40 lb, ensuring durable performance in industrial settings. It carries UL Listed certification and offers 200kA interrupting capacity at 240V for reliable fault protection. Typical applications include industrial power distribution, motor control centers, and machinery protection systems where fused disconnect capability is required.

Key Features & Specifications

• Type: Panel-mounted fusible safety switch
• Voltage Rating: 240V AC
• Current Rating: 200A
• Configuration: Single
• Poles: 3
• Phase: 3-phase
• AIC Rating: 200kA @ 240V
• Fuse Class: H, K, J, R
• Switch Style: Fusible
• NEMA Rating: 1
• Weight: 40 lb
• Certification: UL Listed
• Compatible Frames: THFK
• Item Subcategory: Panel Mount
• Family: QMQB
• Type: QMQB
