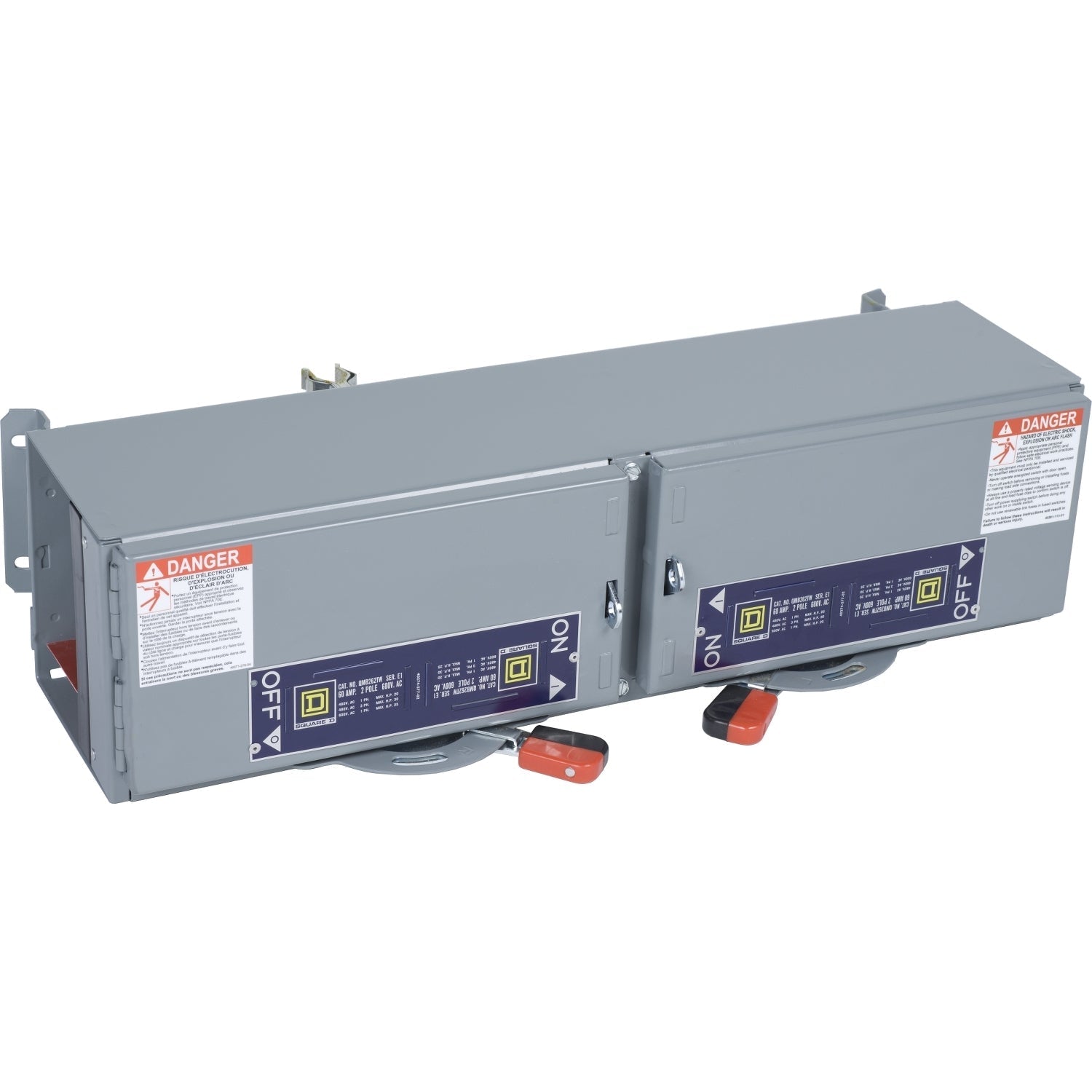

Square D QMB362T32W - Fusible Safety Switch 600VAC 60A (200kA AIC @480V)

Square D QMB362T32W is a panel-mounted fusible safety switch designed for industrial power distribution protection. This 600VAC-rated switch features a 60A current capacity with 200kA interrupting rating at 480V, housed in a rugged NEMA 1 enclosure weighing 30 lb. The dual/twin configuration with 3 poles accommodates Class R, H, and K fuses for flexible circuit protection. UL-listed and compliant with industrial safety standards, it's engineered for motor control centers, HVAC systems, and heavy machinery applications requiring reliable disconnect functionality.

Key Features & Specifications

• Type: Fusible safety switch, panel mount, dual/twin configuration
• Voltage Rating: 600V AC
• Current Rating: 60A
• Poles: 3
• Phase: 3
• AIC Rating: 200kA @ 480V
• Fuse Class: R, H, K compatible
• Configuration: Dual/Twin
• NEMA Rating: 1
• Compatible Frames: ED series
• Switch Style: Fusible disconnect
• Weight: 30 lb
• Standards: UL listed, industrial safety compliant
• Applications: Motor control centers, industrial machinery, HVAC systems

Product Identification

• GTIN: 00785901766087
