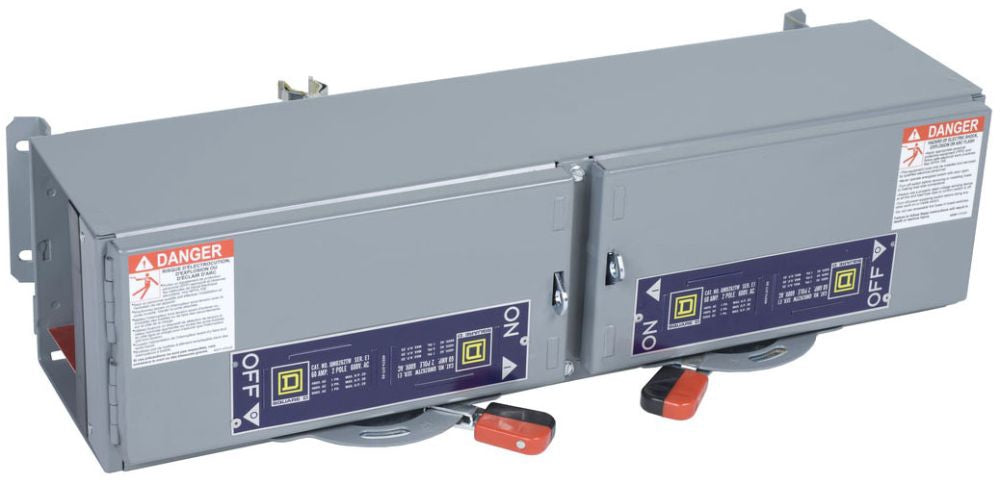

Square D QMB362T21W is a panel-mounted fusible switch designed for providing main disconnect and overcurrent protection in industrial power distribution systems. It features a 600V AC voltage rating and a 60A current rating for three-phase circuits, housed in a robust NEMA 1 enclosure measuring 584.2 mm (H) x 112.78 mm (W) x 78.49 mm (D) and weighing 21.431 lb. The unit is UL and CSA certified and offers a high 200kA interrupting capacity at 480V for reliable fault protection. Its dual/twin configuration and compatibility with HHED frames make it suitable for installation in panelboards and switchboards within commercial and industrial facilities.

Key Features & Specifications
  • Type: Panel-mounted, fusible disconnect switch, QMB Series E1-E2
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 584.2 mm H x 112.78 mm W x 78.49 mm D (23 in x 4.44 in x 3.09 in)
  • Weight: 21.431 lb
  • Standards: UL, CSA certified
  • Applications: Main disconnect and protection in industrial panelboards and switchboards
  • Switch Type: Fusible
  • Configuration: Dual/Twin
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 480V
  • Fuse Class: R
  • NEMA Rating: 1
  • Panel Type: Panelboard, Switchboard
  • Compatible Frames: HHED
  • Enclosure: NEMA 1
  • Country of Origin: United States


Product Identification
  • UPC: 785901765776
  • GTIN: 00785901765776
