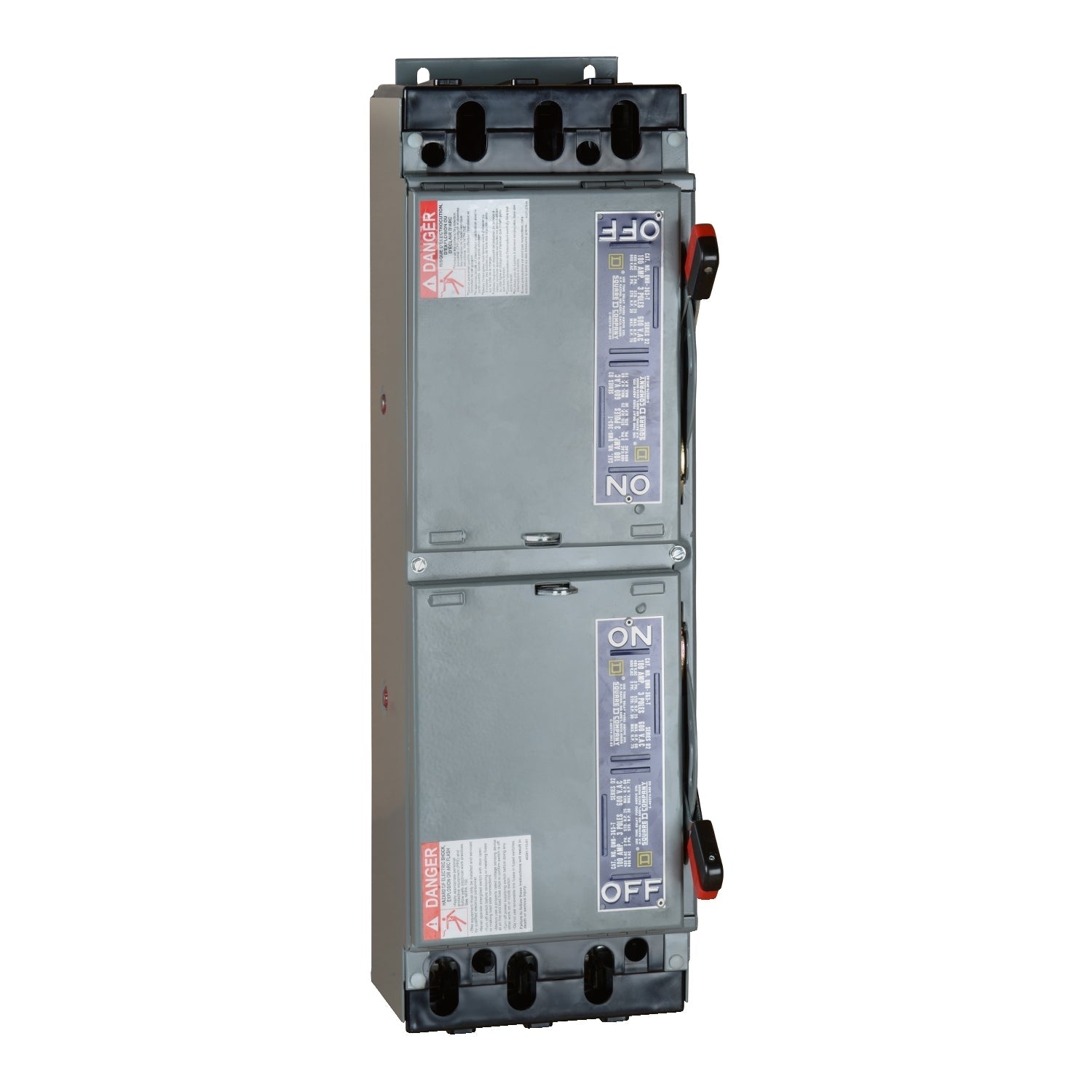

Square D QMB263HW is a panel-mounted fusible safety switch designed for providing reliable circuit protection and isolation in industrial and commercial electrical systems. It features a 600V AC voltage rating and a 100A current rating, housed in a robust NEMA 1 enclosure measuring 191 mm H x 112.78 mm W x 78.49 mm D with a weight of 25 lb. The switch is UL and CSA certified and offers a high interrupting capacity of 200kA at 240V AC for enhanced safety. Its two-pole, single-configuration design with Class R, H, and K fuse compatibility makes it suitable for motor control and feeder circuit applications in industrial facilities.

Key Features & Specifications
  • Type: Panel-mounted, fusible safety switch, QMB Series E1-E2
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 191 mm H x 112.78 mm W x 78.49 mm D (7.52 in x 4.44 in x 3.09 in)
  • Standards: UL, CSA certified
  • Applications: Industrial motor control and feeder circuit protection
  • Switch Type: Fusible
  • Configuration: Single
  • Poles: 2
  • AIC rating: 200kA @ 240V AC
  • Phase: 1
  • Fuse Class: R, H, K
  • Nema Rating: 1
  • Compatible Frames: ED
  • Country of Origin: United States
  • Weight: 25 lb


Product Identification
  • UPC: 785901766070
  • GTIN: 00785901766070
