Siemens QJH2B09000S01 - Molded Case 90A 240V 3-Pole
Siemens QJH2B09000S01 - Molded Case 90A 240V 3-Pole

Siemens QJH2B09000S01 - Molded Case 90A 240V 3-Pole

Siemens
Price
Save $2,697.26
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

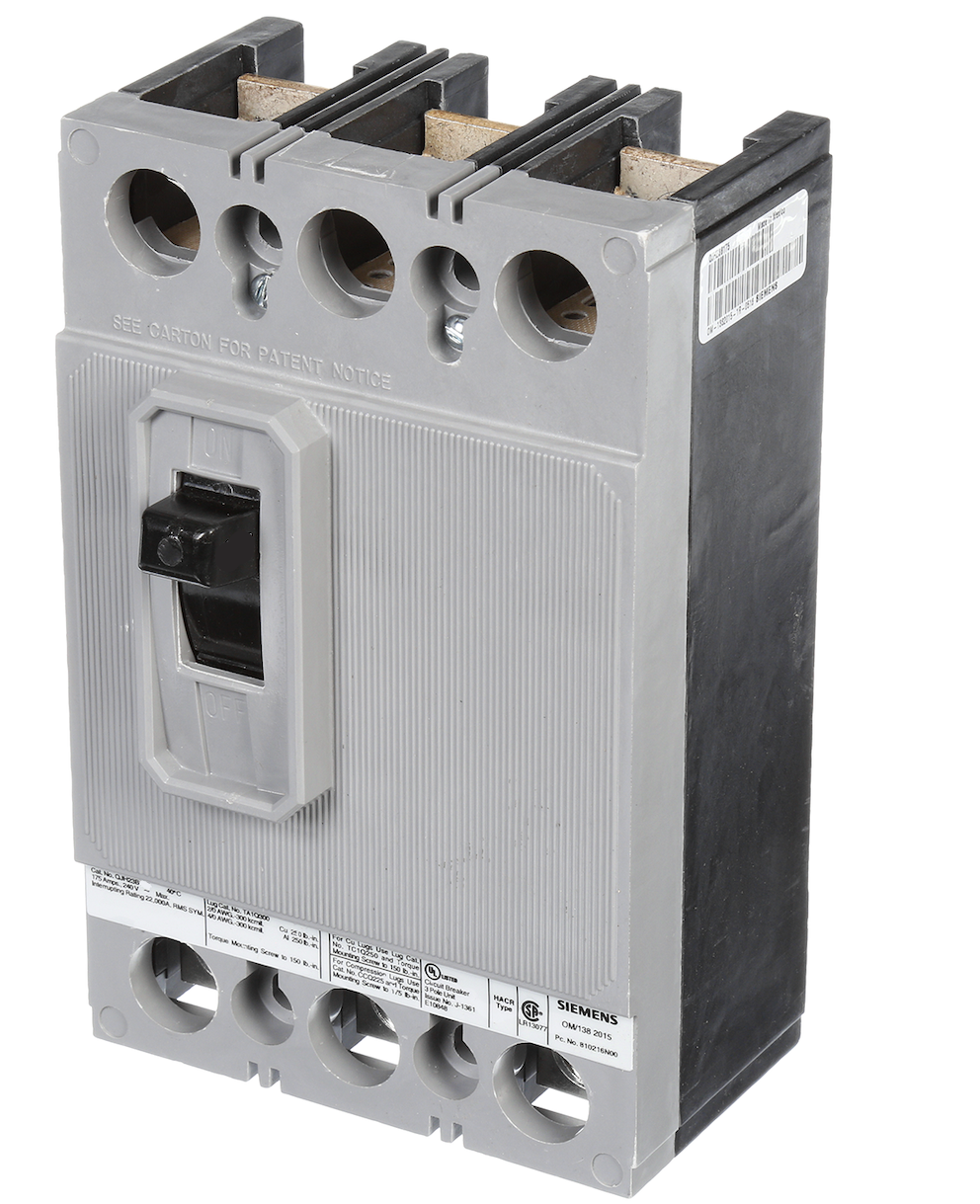

Siemens QJH2B09000S01 is a 3-pole molded case circuit breaker from the QJ Frame family, designed for LI (Long-Time and Instantaneous) protection via a thermal magnetic trip mechanism. It is rated for 90A at 240V AC with a 22kA interrupting capacity at 240V, supporting 3-phase systems through a bolt-on connection. The unit weighs 4 lb and is constructed in Mexico as part of the QJH2 type series. It complies with industry standards for molded case circuit breakers in industrial power distribution. Typical applications include branch circuit protection in panelboards, switchboards, and motor control centers requiring reliable overcurrent and short-circuit interruption.

Key Features & Specifications
  • Type: Molded Case, QJH2, Thermal Magnetic
  • Voltage Rating: 240V AC
  • Current Rating: 90A
  • Poles: 3
  • Connection: Bolt-On
  • Protection: LI - Long-Time and Instantaneous
  • AIC rating: 22kA@240V
  • Phase: 3
  • Functions: LI - Long-Time and Instantaneous
  • Family: QJ Frame
  • Weight: 4 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 078364354246
  • GTIN: 00783643542464
