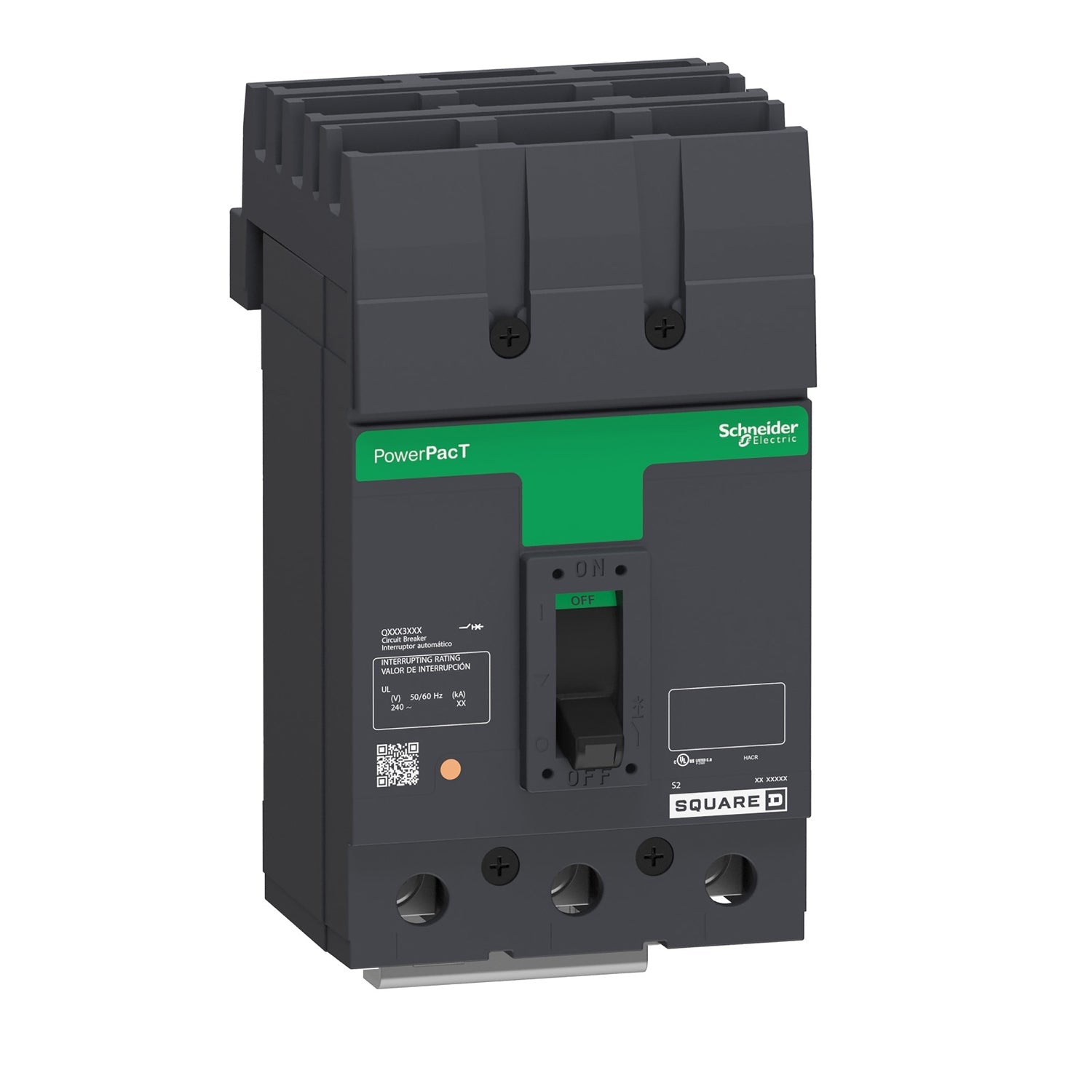

Square D QJA32080 - 80A 3-Pole Molded Case Circuit Breaker (240V)
Square D QJA32080 - 80A 3-Pole Molded Case Circuit Breaker (240V)

Square D QJA32080 - 80A 3-Pole Molded Case Circuit Breaker (240V)

Square D
Price
Save $2,347.39
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric Square D QJA32080 is a 3-pole, 80A molded case circuit breaker from the PowerPact Q family, designed for overcurrent protection in commercial and industrial power distribution systems. It operates at 240V AC with a 100kA interrupt rating and employs a thermal-magnetic trip unit for long-time and instantaneous fault protection. The unit measures 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (H x W x D), weighs 6.647 lb, and features an I-Line style plug-in connection for direct mounting in I-Line panelboards and switchboards. It complies with UL, CSA, NEMA, and NOM-003-SCFI-2000 standards, with certifications from UL, CSA, and NOM. This breaker is suited for demanding environments requiring robust circuit protection in 3-phase systems.

Key Features & Specifications
  • Manufacturer: Schneider Electric
  • Item Subcategory: Molded Case
  • Family: I-Line
  • Country of Origin: Mexico
  • Type: QJA
  • Dimensions: 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
  • Weight: 6.647 lb
  • Functions: Long Time and Instantaneous Trip
  • Voltage Rating: 240V
  • Poles: 3
  • Connection: I-Line Style Plug-In
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000
  • Protection: Thermal Magnetic
  • Wire Size: AWG 4 to 300KCmil, Aluminum/Copper
  • Certification: UL, CSA, NOM
  • AIC rating: 100kA@240V
  • Phase: 3
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Current Rating: 80A
  • Series/Frame: PowerPact Q
  • Frame Size: 225A
  • Mounting Type: I-Line Plug-In


Product Identification
  • UPC: 785901231684
  • GTIN: 00785901000000
