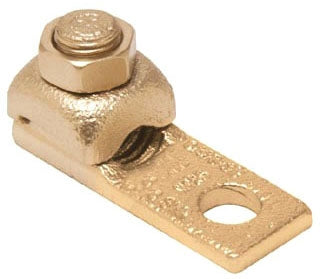

Burndy QB4C - Mechanical Lug 4 AWG 600V
Burndy QB4C - Mechanical Lug 4 AWG 600V

Burndy QB4C - Mechanical Lug 4 AWG 600V

Burndy
Price
Save $-43.32
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Burndy QB4C is a heavy-duty mechanical lug connector designed for secure and reliable termination of copper and aluminum conductors in industrial power distribution systems. It accommodates a wide range of wire sizes, supporting up to 4 AWG conductors, and is rated for use in applications up to 600 volts. Constructed from high-strength, corrosion-resistant aluminum alloy, the QB4C features a compact, one-piece design with a standard NEMA hole spacing for straightforward mounting on bus bars or equipment pads. This connector complies with UL 486A-486B and CSA C22.2 No. 65 standards, ensuring performance in demanding environments. Typical applications include panelboards, switchboards, and motor control centers where a durable, low-resistance connection is required.

Key Features & Specifications
  • Type: Mechanical lug connector, one-piece aluminum alloy construction
  • Voltage Rating: 600 V
  • Wire Size: 4 AWG (copper or aluminum)
  • Connection: NEMA standard hole spacing
  • Standards: UL 486A-486B, CSA C22.2 No. 65
  • Applications: Panelboards, switchboards, motor control centers
  • Metal Type: Aluminum alloy
  • Installation Type: Mechanical (screw-type)
  • Weight: 5.19 lb


Product Identification
  • UPC: 781810324202
  • GTIN: 00781810324202
