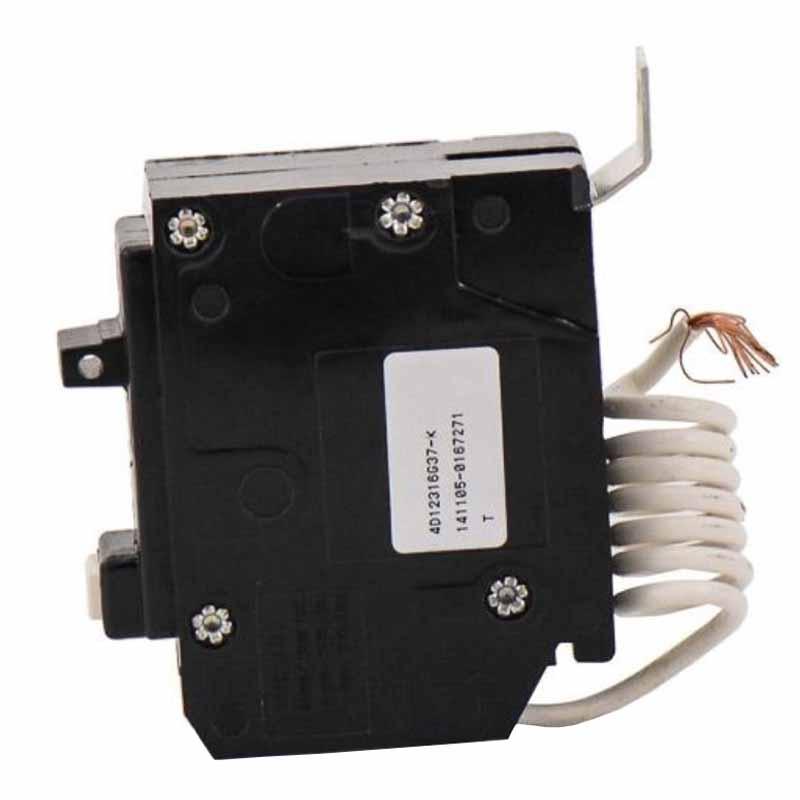

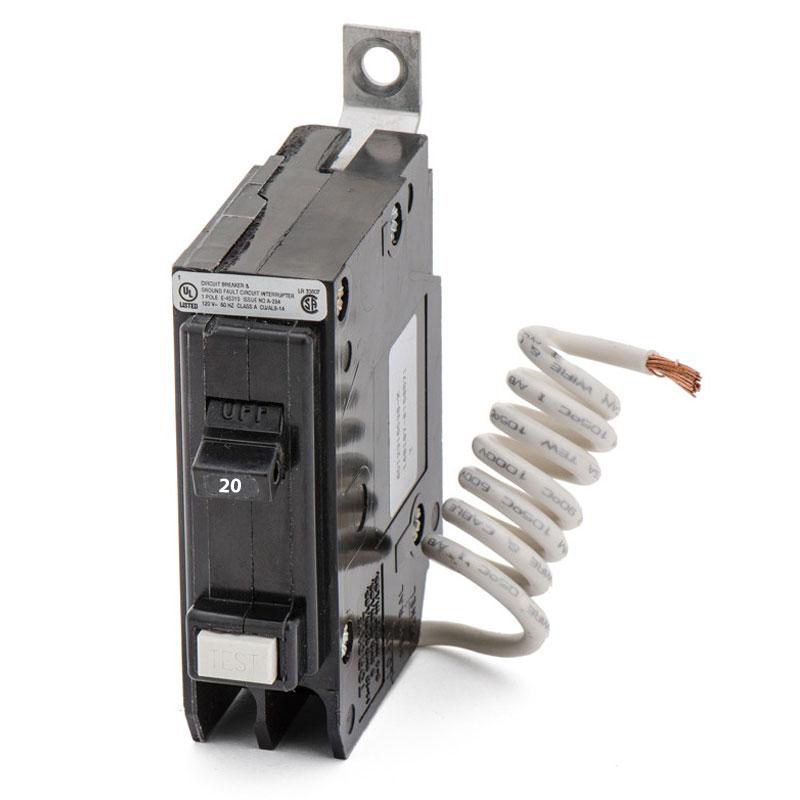

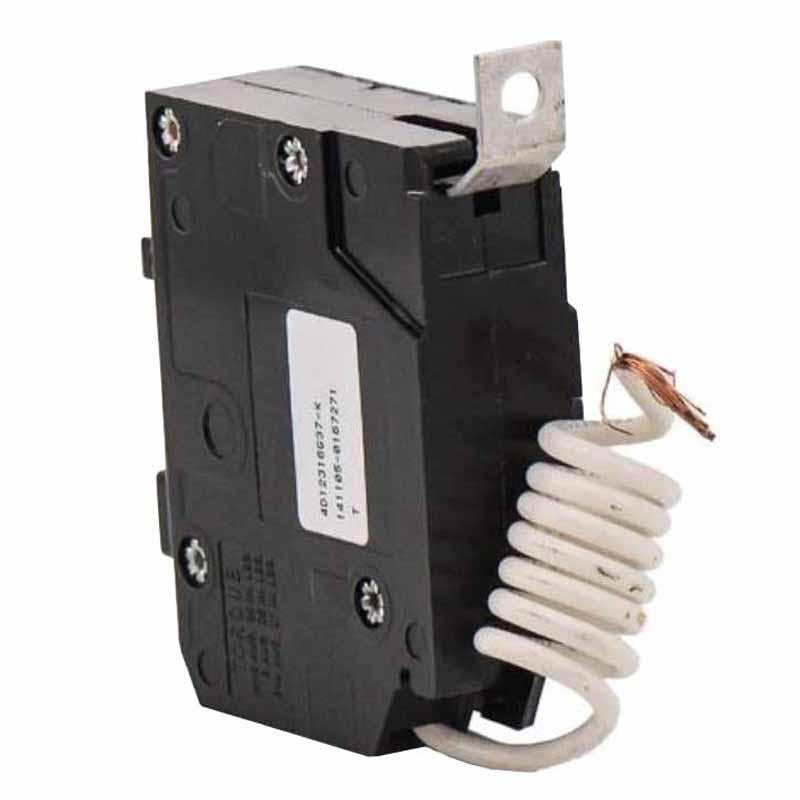

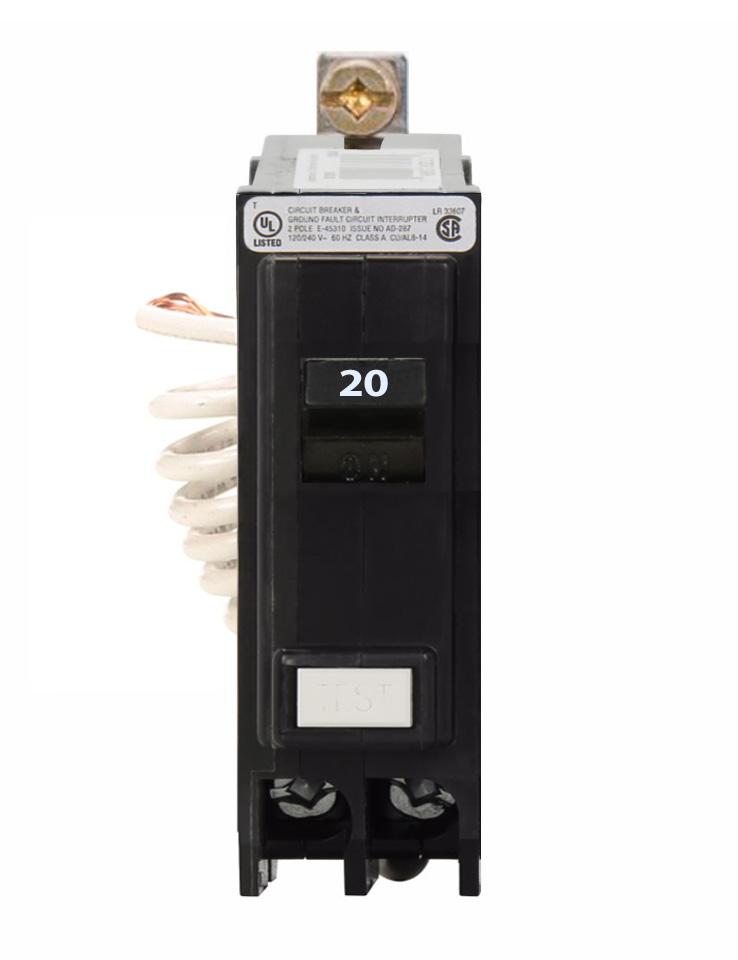

Cutler Hammer QB1020GF - Molded Case Breaker 20A 1P 120V

Price
Regular price $156.79
Regular price $566.21 Sale price $156.79
Save $409.42
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Cutler Hammer QB1020GF is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 20A current rating and a 120V AC voltage rating, housed within a compact 4" x 1" x 3.5" (L x H x W) bolt-on configuration. The breaker utilizes a thermal-magnetic trip mechanism combining long-time and instantaneous functions for coordinated protection and is rated for an interrupting capacity of 10kA at 120V. It is engineered for single-phase applications, compatible with #14-4 AWG wire, and operates reliably across a temperature range of -25°C to 70°C (-13°F to 158°F).

Key Features & Specifications
  • Type: QB Series, Molded Case, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 4 in (L) x 1 in (H) x 3.5 in (W)
  • Standards: Designed to meet applicable industry standards for circuit protection
  • Applications: Industrial control panels, commercial distribution, and equipment protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: #14-4 AWG
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 0.45 lb
  • Family: QUICKLAG


Product Identification
  • UPC: 786680222498
  • GTIN: 00786680222498
