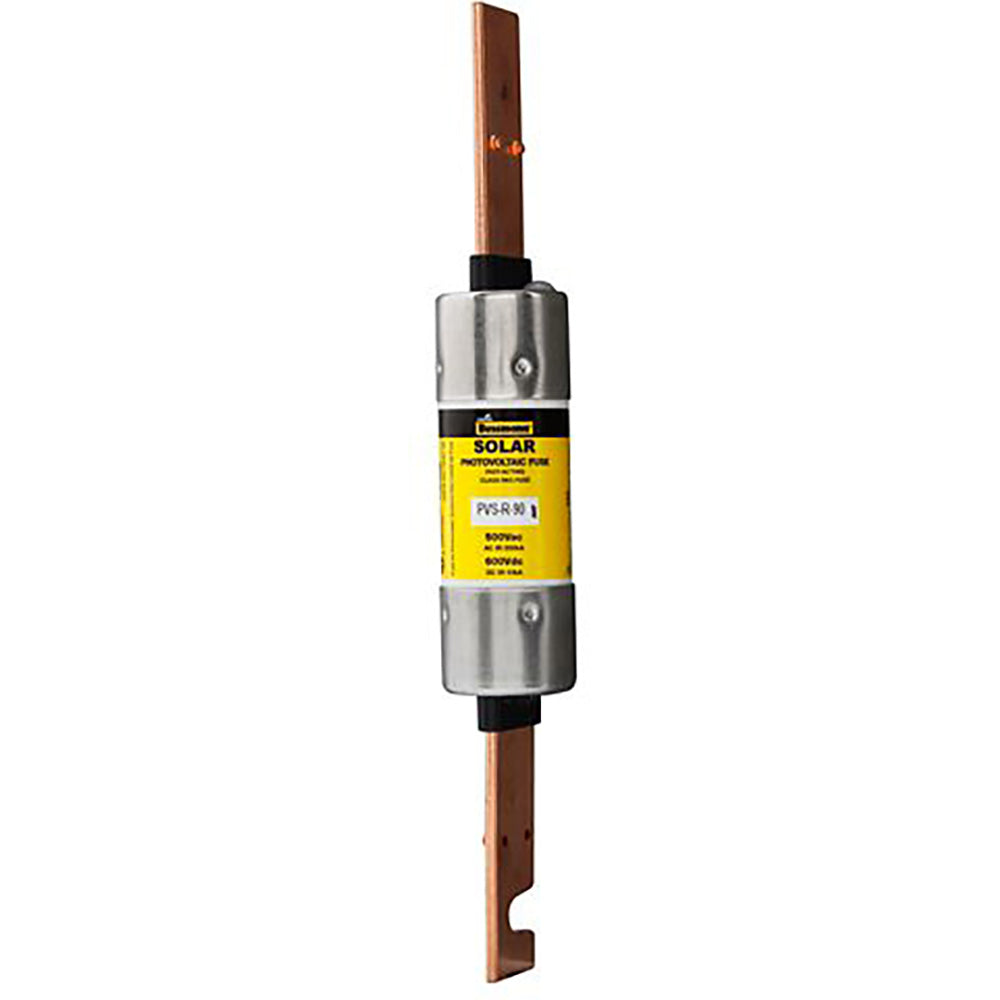

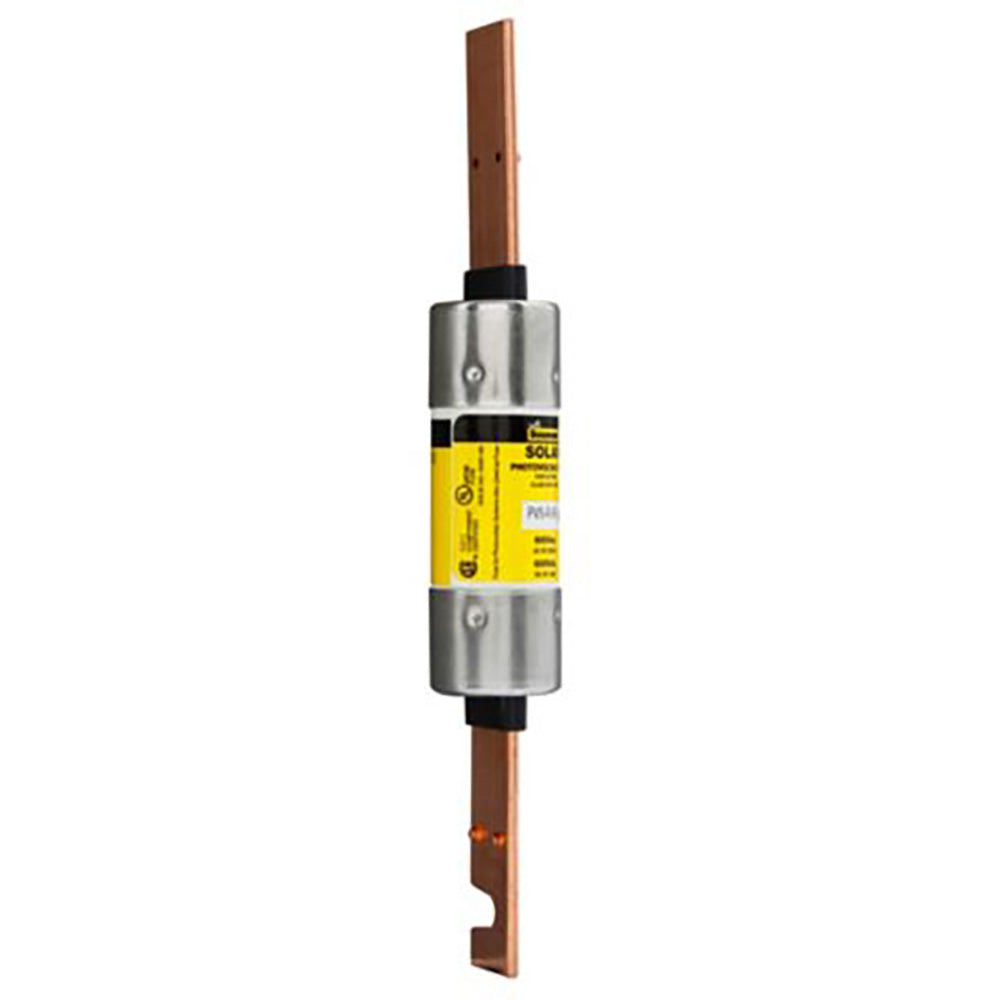

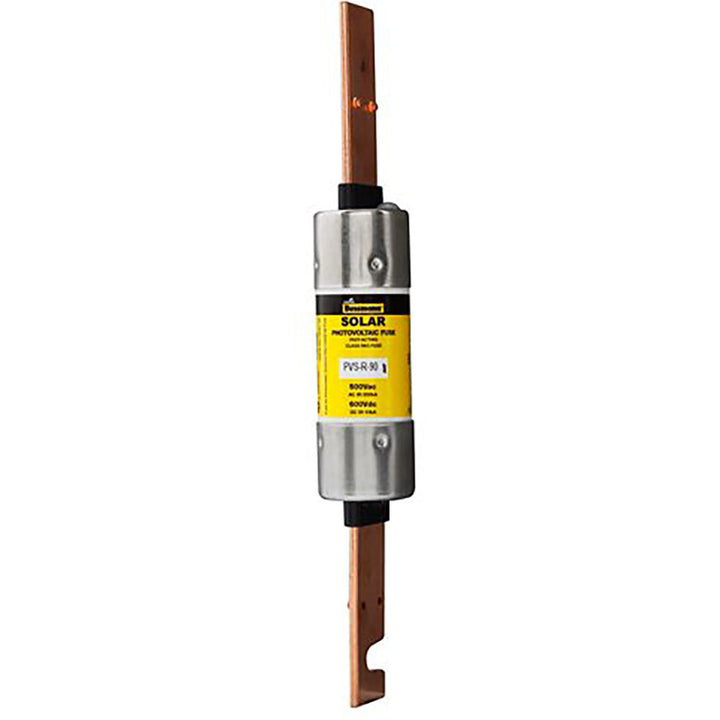

Bussmann PVS-R-90 - Class H Renewable Fuse 90A (200kA AIC @600V)

Bussmann PVS-R-90 is a Class H low-voltage fuse designed for circuit protection in industrial power distribution systems. It features a 600V AC voltage rating with a 90A current rating, providing reliable overcurrent protection. The single-barrel construction measures 1.34 inches in diameter and weighs 1 lb, featuring robust materials for durable performance. This fuse meets industry standards for high-interrupting capacity applications with an AIC rating of 200kA at 600V. Typical applications include motor control centers, industrial panels, and power distribution equipment where reliable circuit protection is essential.

Key Features & Specifications

• Type: Class H renewable low-voltage fuse with single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 90A
• Dimensions: 1.34" diameter
• Standards: Meets industry standards for high-interrupting capacity applications
• Applications: Industrial power distribution, motor control centers, panelboards
• AIC rating: 200kA@600V
• Class Rating: H
• Barrels: 1
• Weight: 1 lb

Product Identification

• UPC: 005171226819
• GTIN: 00051712268196
