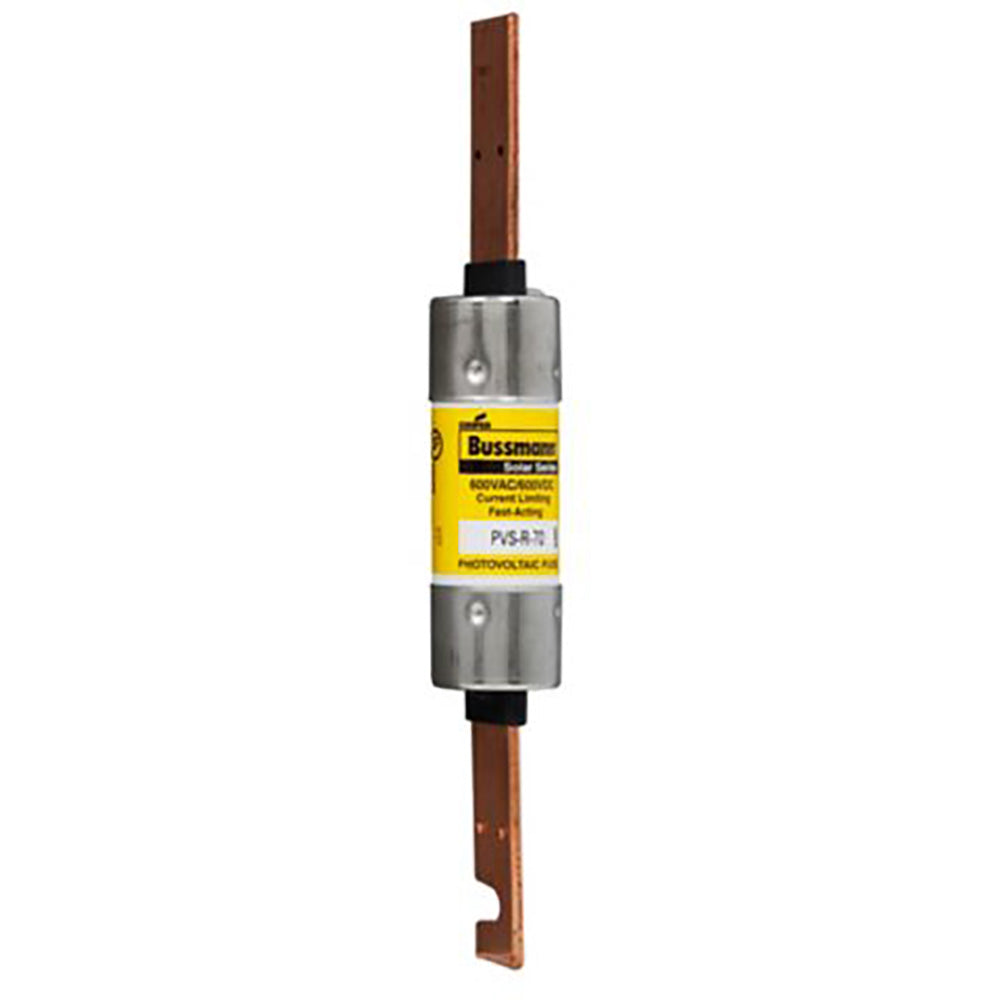

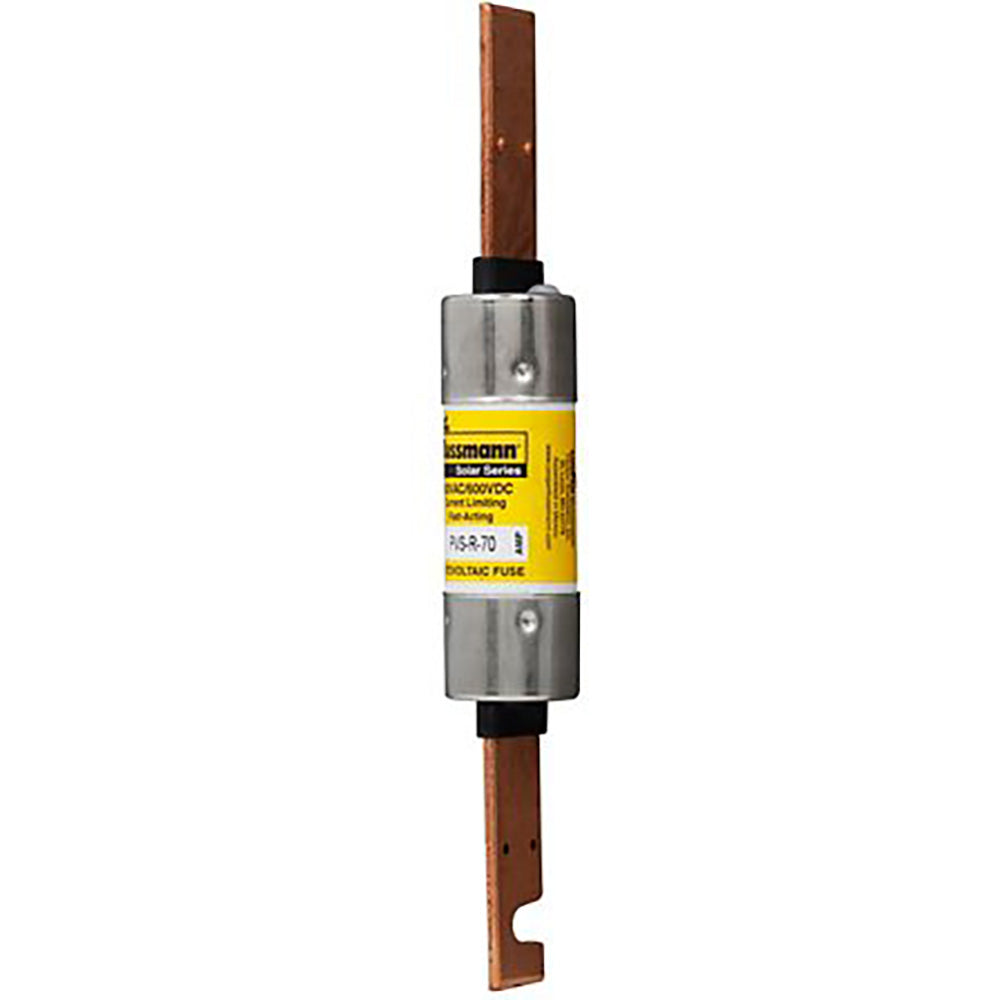

Bussmann PVS-R-70 - Class H Fuse 70A 600V (200kA AIC Rating)

Bussmann PVS-R-70 is a Class H low-voltage current-limiting fuse designed for photovoltaic system protection and industrial power distribution applications. It features a 70A current rating with 600V AC voltage capacity and provides 200kA interrupting rating for reliable circuit protection under high-fault conditions. The single-barrel construction measures 7-7/8 inches in length with a 1.34-inch diameter and 1 lb weight, featuring robust materials suitable for industrial environments. This fuse complies with UL Standard 248-12, Class RK5 requirements and carries UL Listing under Guide JFGA File E335324, along with photovoltaic certification to UL 2579 and CSA Component Certification to C22.2 standards. Typical applications include solar array combiner boxes, DC disconnect switches, and industrial control panels requiring high-interrupting capacity protection.

Key Features & Specifications

• Type: Class H current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 70A
• Dimensions: 7-7/8 inches length, 1.34 inches diameter
• Standards: UL Std. 248-12, Class RK5, UL Listed, Guide JFGA, File E335324, Photovoltaic to UL 2579, CSA Component Certified C22.2
• Applications: Photovoltaic systems, industrial power distribution
• AIC rating: 200kA@600V
• Class Rating: H
• Barrels: 1
• Weight: 1 lb
• Certification: UL, CSA
• Country of Origin: Mexico

Product Identification

• UPC: 051712268172
• GTIN: 00051712268172
