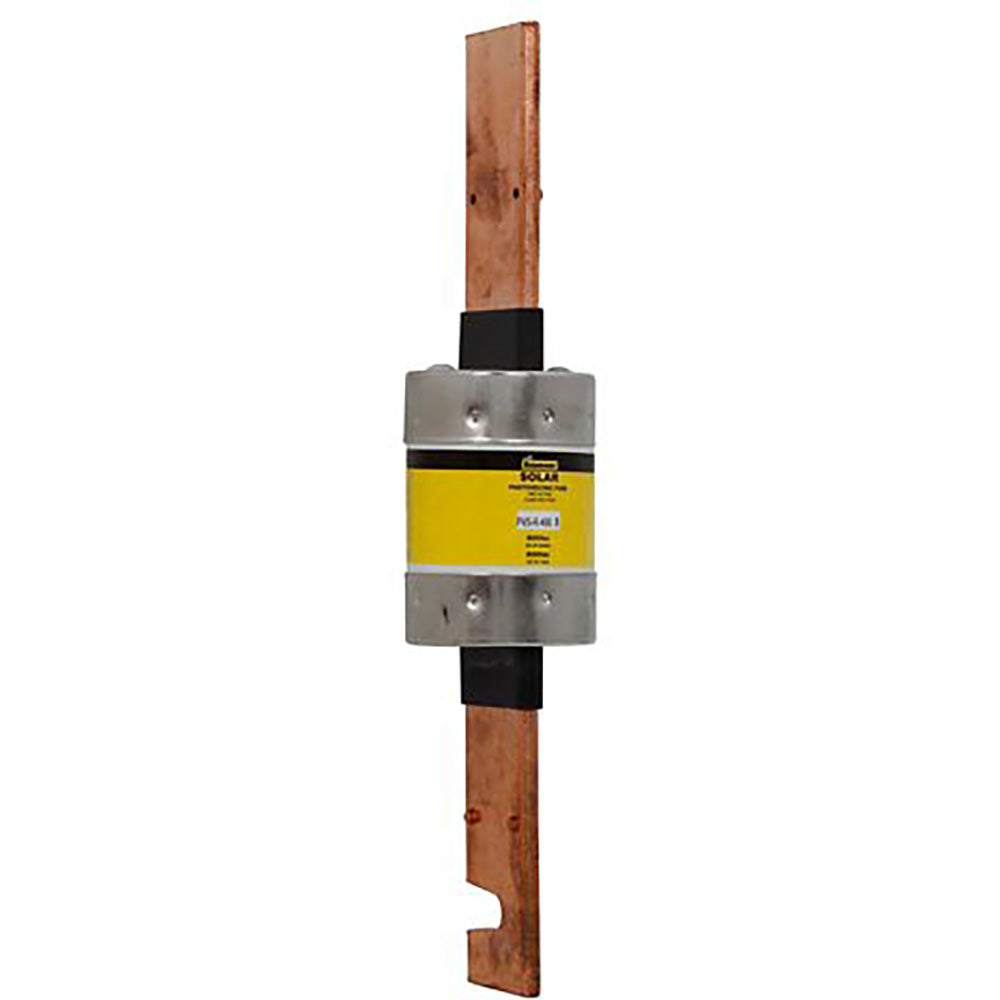

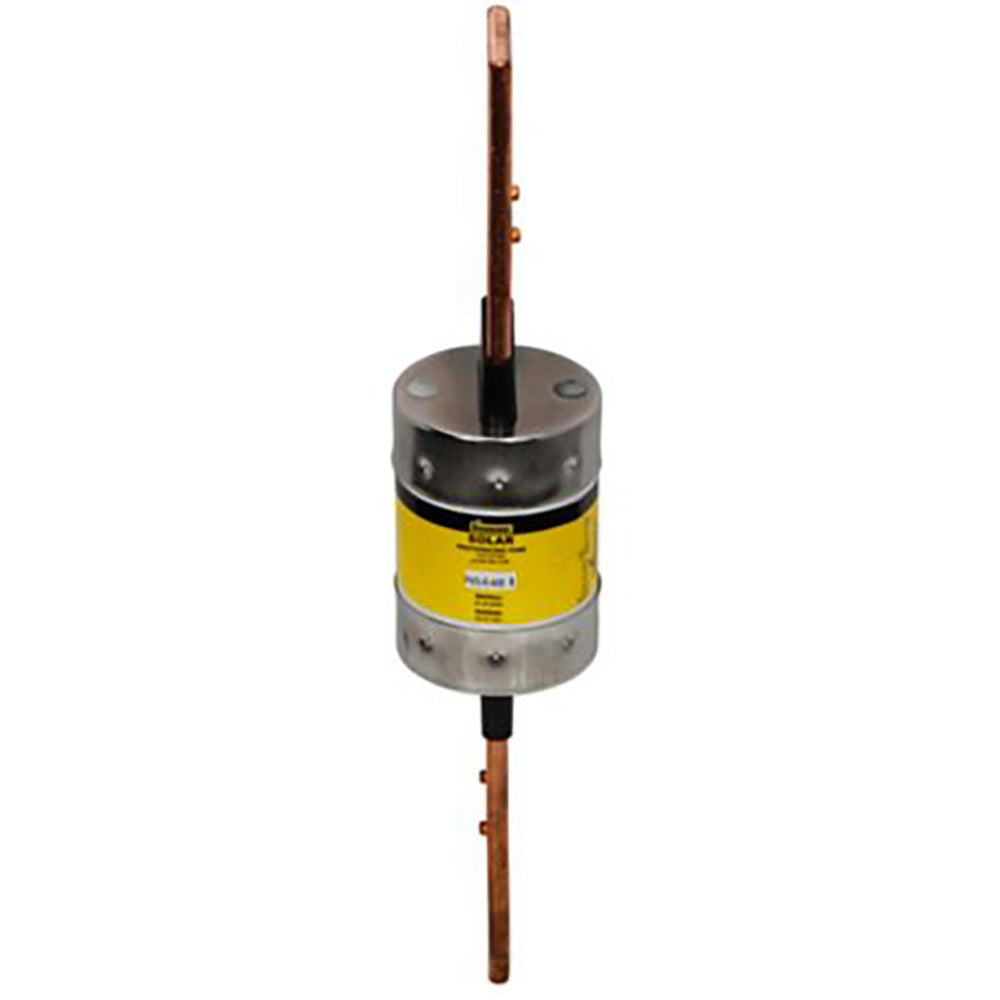

Bussmannn PVS-R-400 - RK5 Current-Limiting Fuse 350A@600V (200kA AIC)

Bussmannn PVS-R-400 is a current-limiting fuse designed for overcurrent protection in industrial electrical systems. It features a 600V AC rating with a 350A current capacity and 200kA interrupting rating at 600V for high-fault protection. The RK5-class fuse has a single-barrel construction with a 2.59-inch diameter and weighs 2 lb, built with durable materials for reliable performance. It complies with industry standards for low-voltage fuse applications, including UL/CSA certifications. Typical applications include motor branch circuits, transformer protection, and industrial power distribution panels where high interrupting capacity is required.

Key Features & Specifications

• Type: Current-limiting RK5-class fuse with single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 350A
• Dimensions: 2.59" diameter
• Standards: UL/CSA certified
• Applications: Motor protection, transformer circuits, industrial power distribution
• AIC rating: 200kA@600V
• Class Rating: RK5
• Barrels: 1
• Weight: 2 lb

Product Identification

• UPC: 05171226831
• GTIN: 00051712268318
