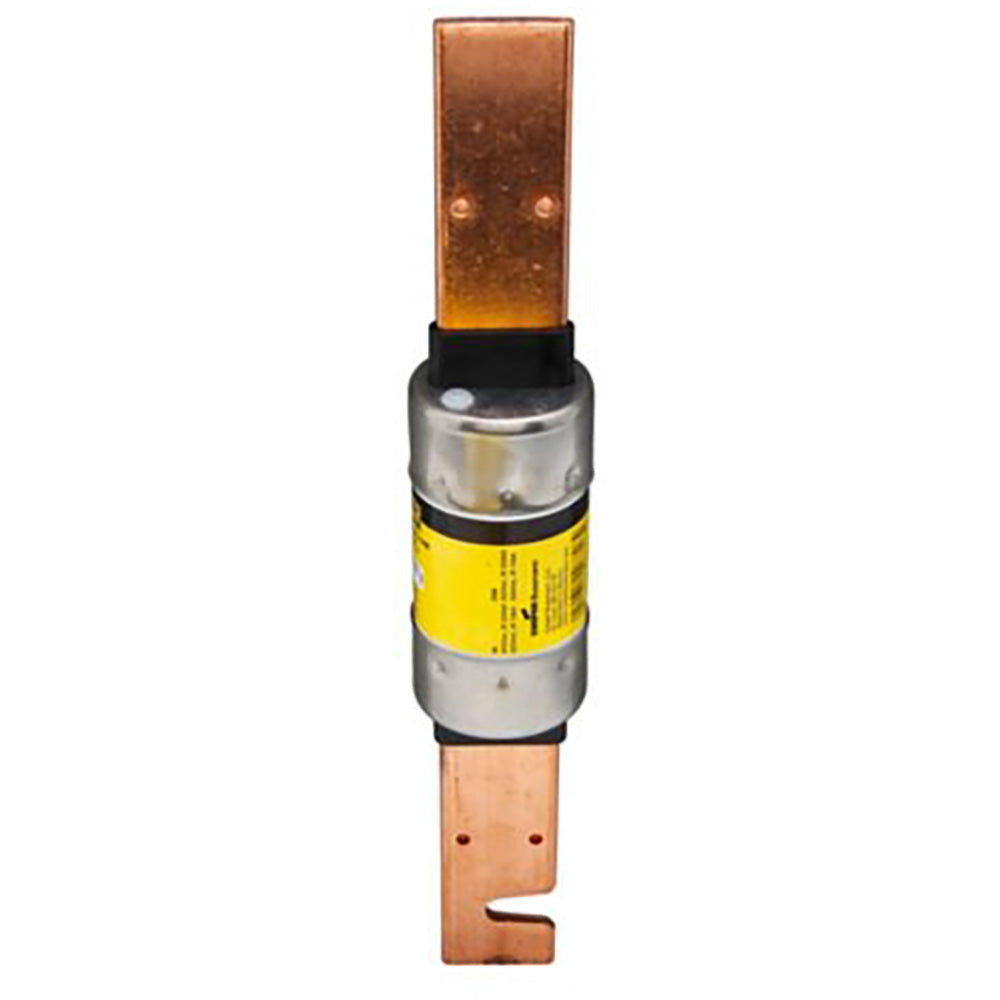

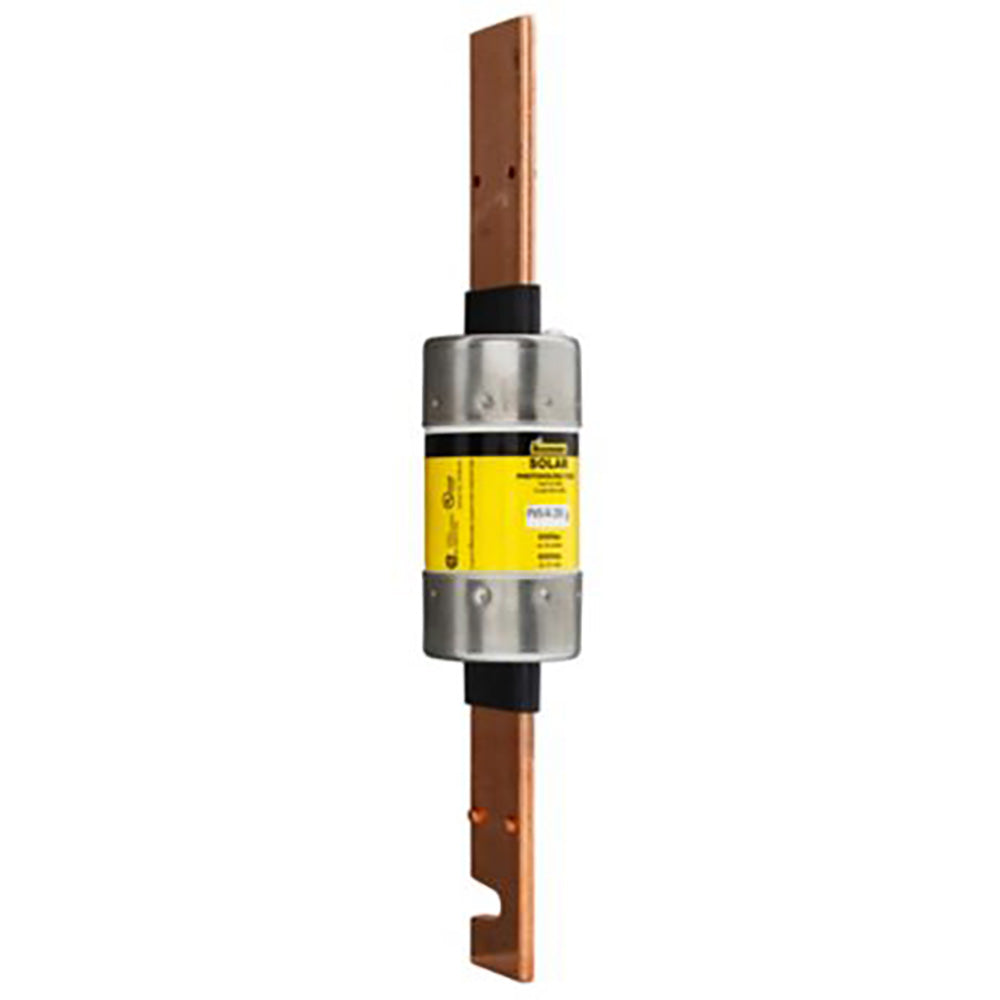

Bussmann PVS-R-350 - RK5 Time-Delay Fuse 350A (200kA AIC @600V)

Bussmann PVS-R-350 is a current-limiting, time-delay fuse from the LIMITRON family designed to provide reliable overcurrent protection in low-voltage electrical systems. It features a 350A current rating and a 600V voltage rating, capable of interrupting faults with a 200kA AIC rating at 600V. The fuse is constructed as a single-barrel RK5 class device with a 2.59-inch diameter and weighs 2 lb, manufactured in Mexico to industrial standards. This fuse meets industry requirements for current-limiting protection in demanding applications. Typical applications include industrial power distribution, motor branch circuits, and feeder protection where high interrupting capacity and time-delay characteristics are essential.

Key Features & Specifications

• Type: Current-limiting time-delay fuse, single barrel, RK5 class
• Voltage Rating: 600V AC
• Current Rating: 350A
• Dimensions: 2.59-inch diameter
• Standards: Industrial low-voltage fuse standards
• Applications: Industrial power distribution, motor protection, feeder circuits
• AIC rating: 200kA@600V
• Class Rating: RK5
• Barrels: 1
• Weight: 2 lb
• Family: LIMITRON

Product Identification

• UPC: 05171226830
• GTIN: 00051712268301
