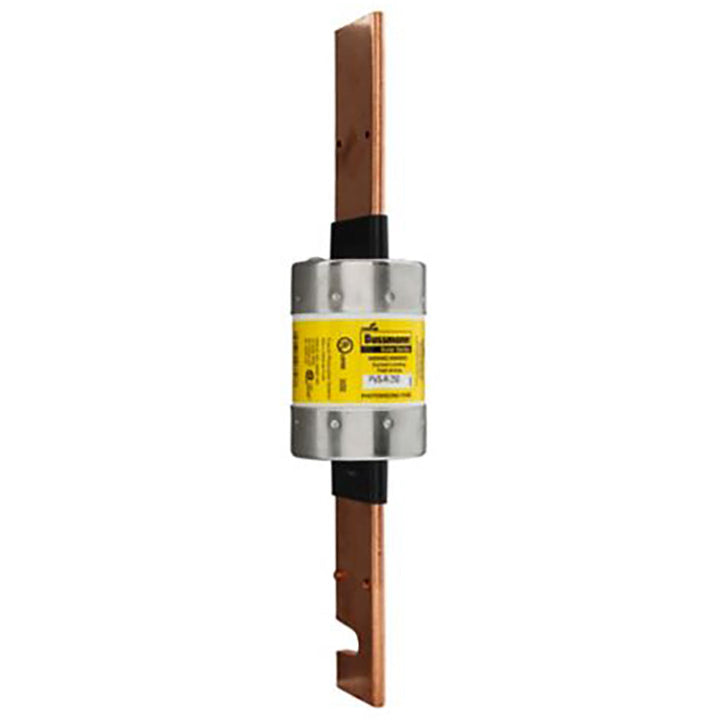

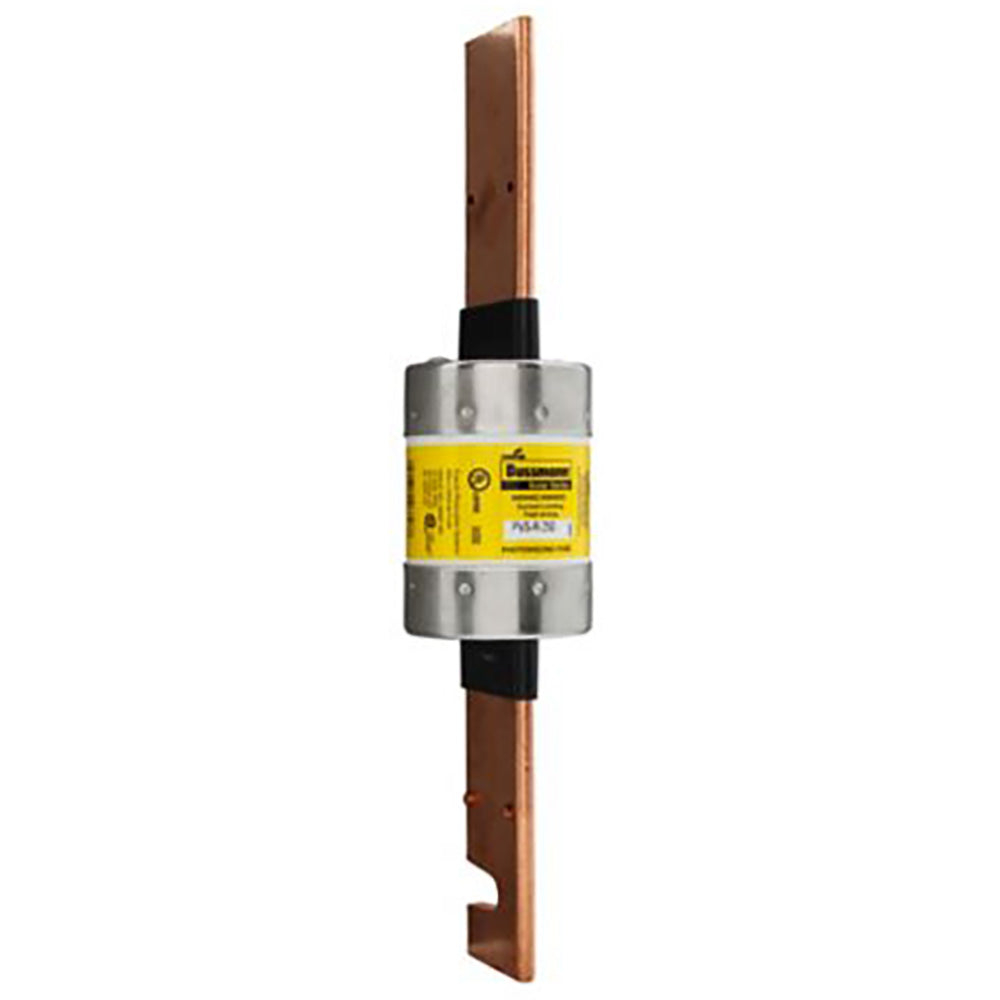

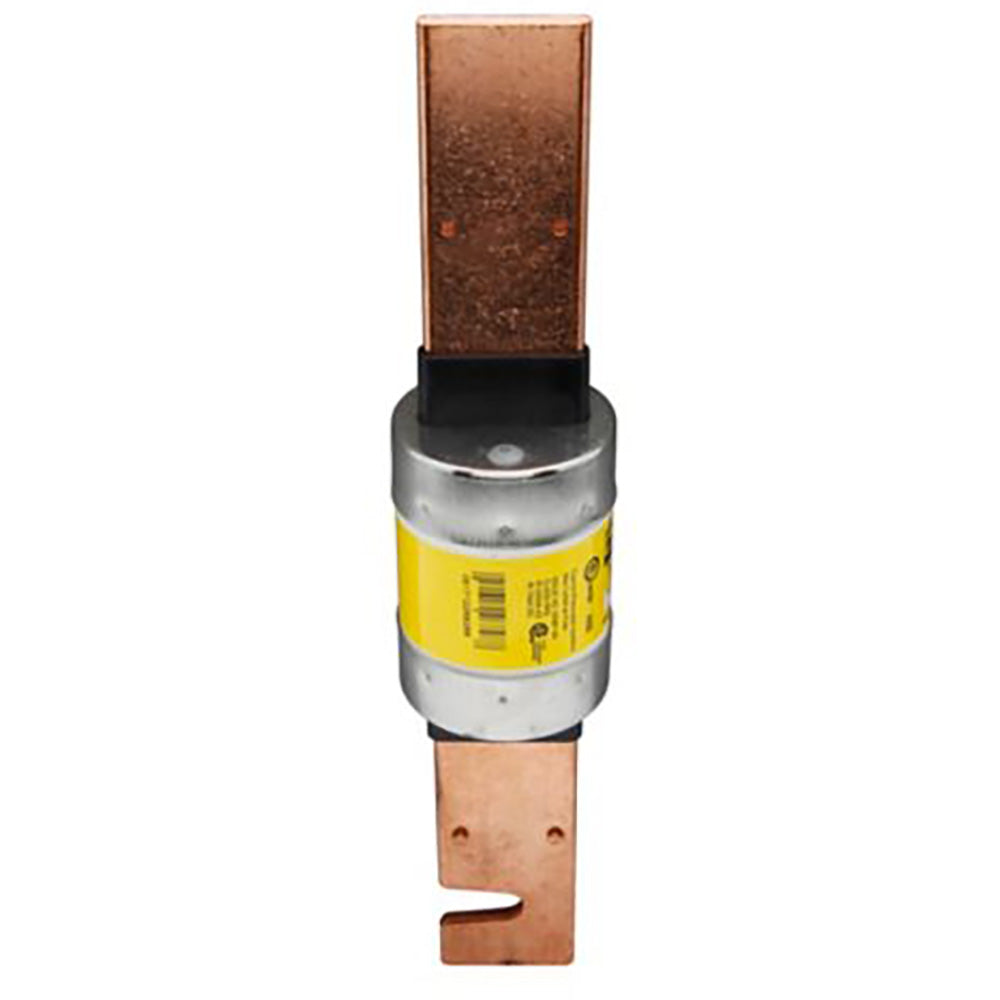

Bussmann PVS-R-250 - Low Voltage Fuse 250A (RK5 Class, 200kA AIC)

Bussmann PVS-R-250 is a current-limiting, low-voltage fuse designed for circuit protection in industrial power distribution systems. It features a 250A current rating and 600V voltage rating with a high 200kA interrupting capacity at 600V AC. The fuse construction utilizes a single-barrel design with RK5 class time-delay characteristics, measuring 2.59 inches in diameter and weighing 2 lb. Manufactured to industry standards, this LIMITRON series fuse provides reliable protection for motors, transformers, and feeder circuits where high fault current interruption is required.

Key Features & Specifications

• Type: Current-limiting, time-delay fuse with RK5 class rating
• Voltage Rating: 600V AC
• Current Rating: 250A
• Dimensions: 2.59" diameter
• Standards: Industry standard compliance
• Applications: Motor protection, transformer protection, feeder circuits
• AIC rating: 200kA@600V
• Barrels: 1
• Class Rating: RK5
• Weight: 2 lb
• Family: LIMITRON
• Country of Origin: Mexico

Product Identification

• UPC: 05171226828
• GTIN: 00051712268288
