Eaton Bussmann PV-5A10F - PV Fuse 5A 1000VDC (50kA AIC)

Bussmann
Price
Save $13.97
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

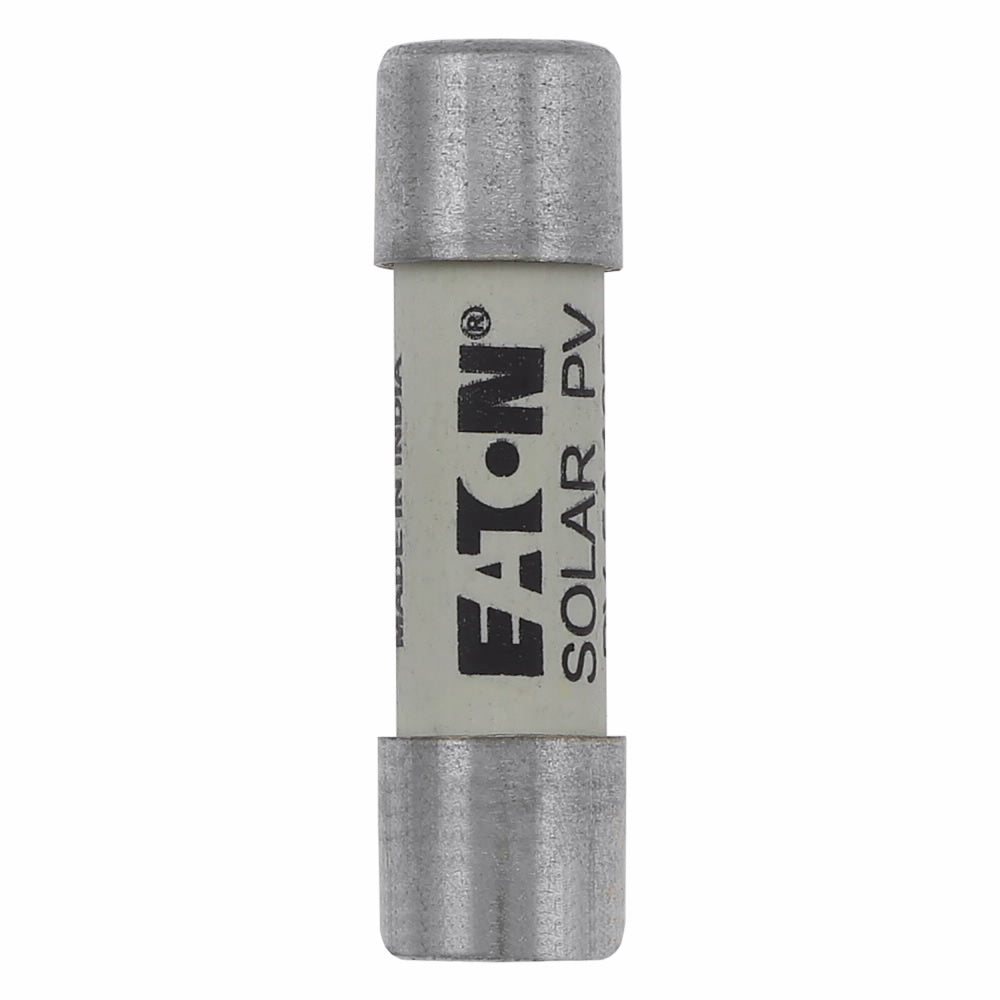

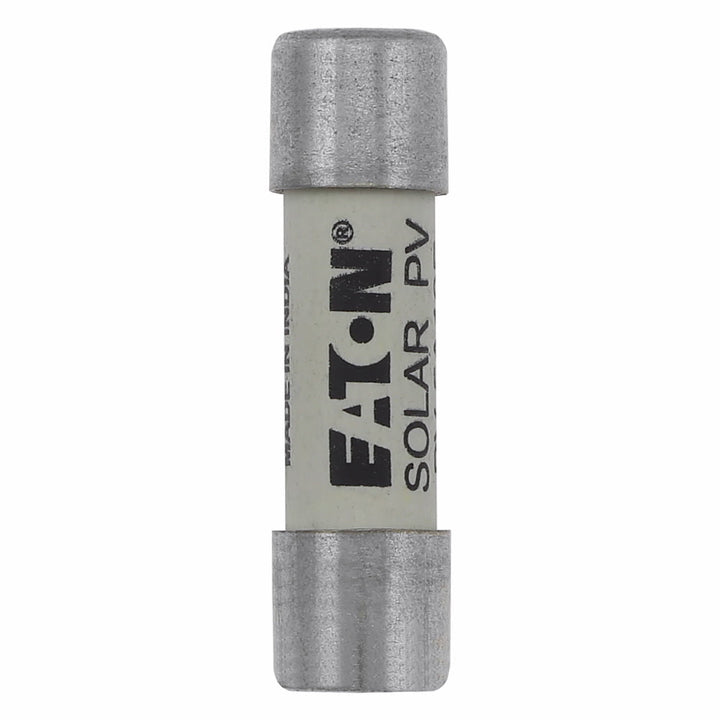

Eaton Bussmann PV-5A10F is a medium voltage fuse designed for overcurrent protection in high-power DC circuits, such as photovoltaic systems and industrial power distribution. It features a 5A current rating and a 1000V DC voltage rating, with a robust ferrule connection and a compact, cylindrical form factor measuring 38 mm in length and 10 mm in diameter. The fuse is constructed for high-interrupting capacity, certified to UL 2579 and IEC 60269-6 standards, and offers an AIC rating of 50kA at 1000V DC. Its design ensures reliable protection in demanding applications including solar combiner boxes, DC disconnects, and energy storage systems.

Key Features & Specifications
  • Type: PV Series, medium voltage, single-barrel fuse with ferrule connection
  • Voltage Rating: 1000V DC
  • Current Rating: 5A
  • Dimensions: 38 mm x 10 mm x 10 mm (L x H x W)
  • Standards: CCC (1-15A), CSA, IEC 60269-6, UL 2579 (File E335324)
  • Applications: Photovoltaic system protection, DC power distribution, industrial controls
  • AIC rating: 50kA @ 1000Vdc
  • Connection: Ferrule
  • Barrels: 1
  • Diameter: 10 mm
  • Weight: 0.02093 lb
  • Certification: CCC, CSA, IEC, UL
  • Family: PV Series
  • Country of Origin: India


Product Identification
  • UPC: 051712245203
  • GTIN: 00051712245203
