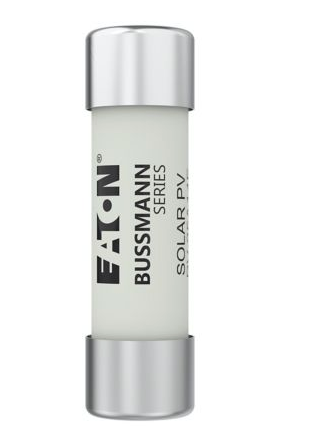

Eaton Bussmann PV-25A14F - PV Fuse 25A 1000VDC (10kA AIC)

Bussmann
Price
Save $15.36
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Bussmann PV-25A14F is a medium voltage fuse designed for overcurrent protection in high-voltage DC circuits, such as photovoltaic systems and industrial power distribution. It features a 25A current rating and a 1000V DC voltage rating, with a high interrupting capacity of 10kA. The fuse is constructed with a single-barrel, ferrule connection design and compact dimensions of 51 mm x 15 mm x 15 mm, weighing 0.04945 lb with a 0.14-inch diameter. It is engineered to meet relevant industry standards for safety and performance in demanding electrical environments.

Key Features & Specifications
  • Type: PV Series, Medium Voltage Fuse, single-barrel with ferrule connection
  • Voltage Rating: 1000V DC
  • Current Rating: 25A
  • Dimensions: 51 mm (L) x 15 mm (H) x 15 mm (W)
  • Weight: 0.04945 lb
  • Diameter: 0.14 in
  • AIC Rating: 10kA @ 1000V DC
  • Connection: Ferrule
  • Barrels: 1
  • Family: PV Series


Product Identification
  • UPC: 051712377218
  • GTIN: 00051712377218
