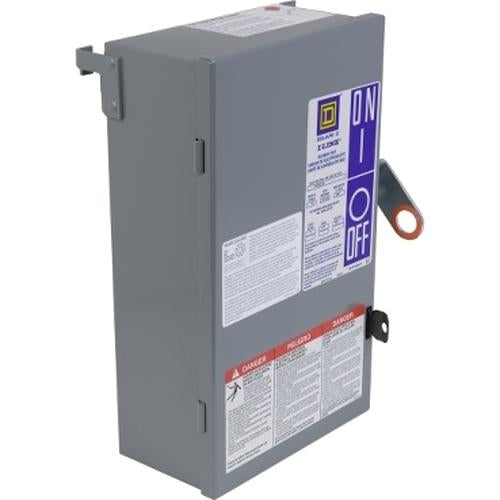

Square D PQ4620G - Fusible Bus Plug 200A 600V (200kA AIC)
Square D PQ4620G - Fusible Bus Plug 200A 600V (200kA AIC)

Square D PQ4620G - Fusible Bus Plug 200A 600V (200kA AIC)

Square D
Price
Save $595.75
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D PQ4620G is a fusible bus plug designed for providing circuit protection and power distribution in industrial busway systems. It features a 600V voltage rating and a 200A current rating, housed within a compact, robust enclosure measuring 571 mm in height, 112.78 mm in width, and 78.49 mm in depth with a weight of 70.25 lb. The unit is certified to CSA C22.2 No 27 and is UL listed (file E22182), ensuring compliance with North American safety standards for industrial applications. Its 200kA interrupting capacity at 480V and compatibility with Class H, K, and R fuses make it suitable for protecting three-phase power circuits in manufacturing plants, data centers, and other critical infrastructure.

Key Features & Specifications
  • Type: Fusible bus plug for I-Line busway systems
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Dimensions: 571 mm H x 112.78 mm W x 78.49 mm D (22.48 in x 4.44 in x 3.09 in)
  • Weight: 70.25 lb
  • Standards: CSA C22.2 No 27, UL Listed (File E22182)
  • Applications: Industrial power distribution, manufacturing facilities, data centers
  • Phase: 3
  • AIC Rating: 200kA at 480V
  • Fuse Class: H, K, R
  • Wire: 4
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901309918
  • GTIN: 00785901309918
