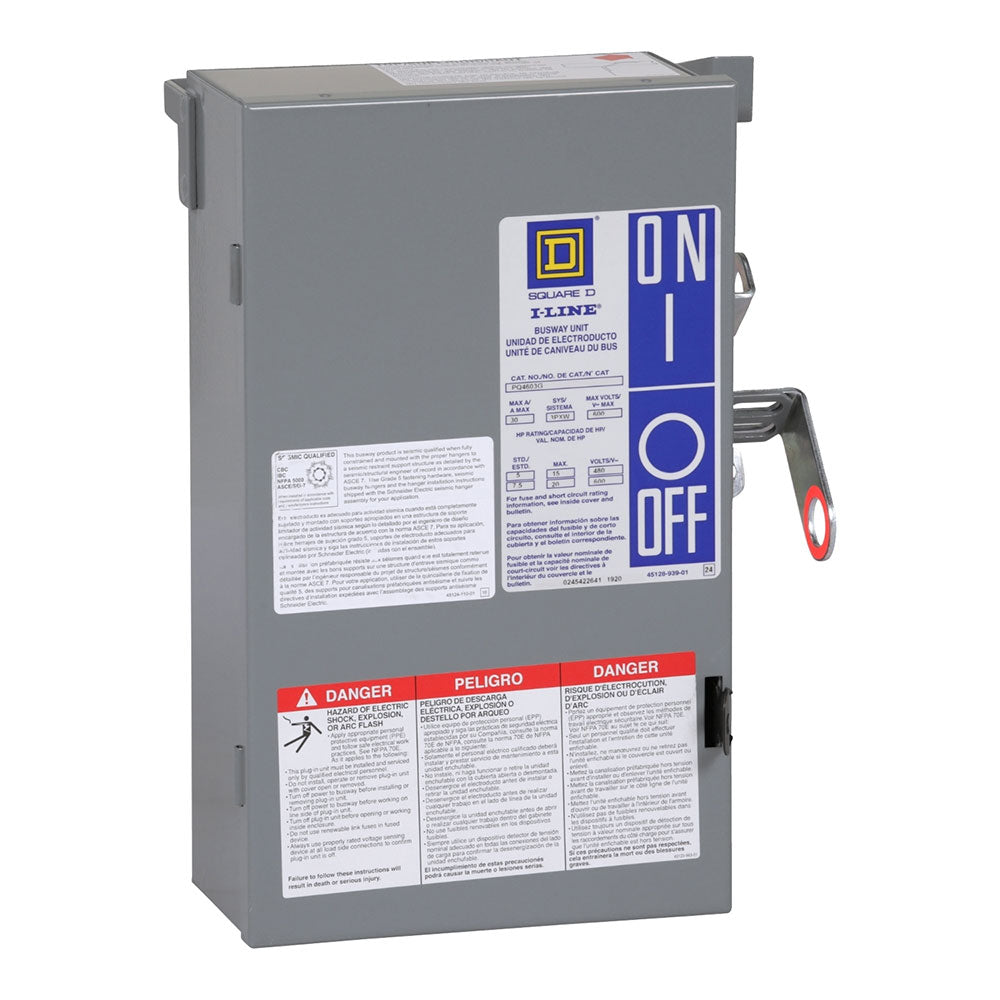

Square D PQ4603G - Fusible Bus Plug 30A 3P (200kA AIC)
Square D PQ4603G - Fusible Bus Plug 30A 3P (200kA AIC)

Square D PQ4603G - Fusible Bus Plug 30A 3P (200kA AIC)

Square D
Price
Save $325.27
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D PQ4603G is a fusible bus plug designed for branch circuit protection and isolation in industrial power distribution systems. It provides a 30A current rating for three-phase applications with a voltage rating of 277/480/600V AC and a high 200kA interrupting capacity at 480V. The unit is constructed for the I-Line busway system with dimensions of 15 inches by 8-7/8 inches and a weight of 13.54 lb, and it is certified to UL and CSA standards. This plug is engineered for reliable performance in demanding environments, accepting H, K, or R class fuses and accommodating up to a #4 AWG wire size for secure connections.

Key Features & Specifications
  • Type: Fusible I-Line bus plug for branch circuit protection and isolation
  • Voltage Rating: 277/480/600V AC
  • Current Rating: 30A
  • Phase: 3
  • AIC Rating: 200kA @ 480V
  • Fuse Class: H, K, R
  • Wire Size: #4 AWG
  • Dimensions: 15 in x 8-7/8 in
  • Weight: 13.54 lb
  • Standards: UL Listed, CSA Certified
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901309888
  • GTIN: 00785901309888
