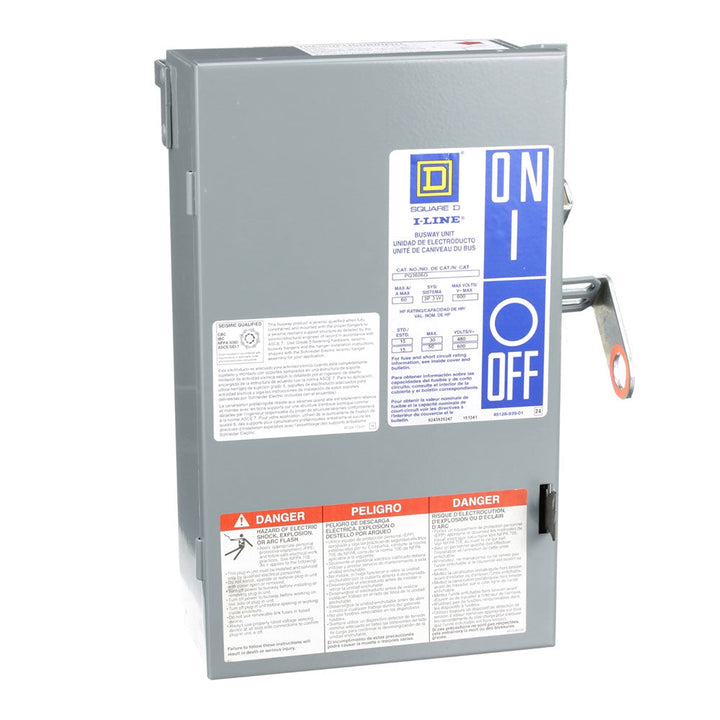

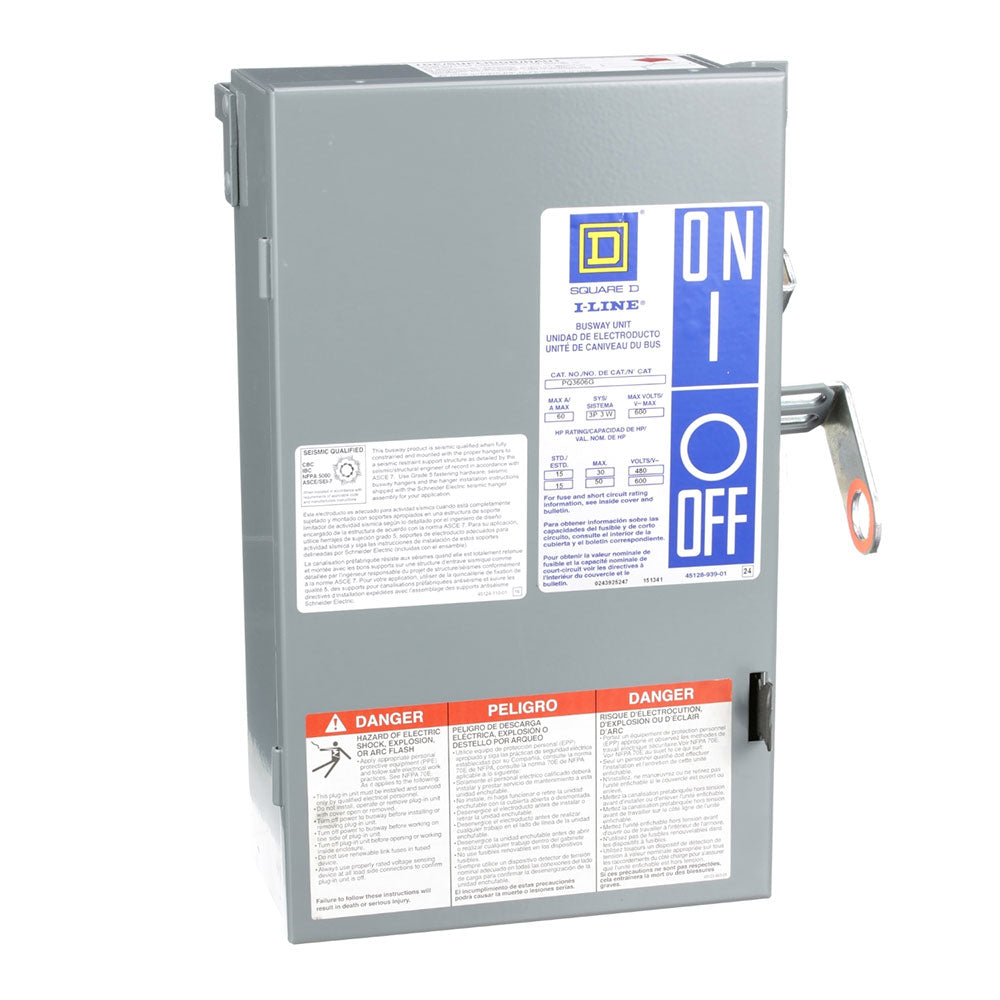

Square D PQ3606G - Fusible Disconnect 60A 600V (200kA AIC)
Square D PQ3606G - Fusible Disconnect 60A 600V (200kA AIC)

Square D PQ3606G - Fusible Disconnect 60A 600V (200kA AIC)

Square D
Price
Save $349.03
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Square D PQ3606G Bus Plug is a fusible disconnect device designed to provide branch circuit protection and isolation for industrial power distribution systems. It features a 600V AC voltage rating and a 60A current rating for three-phase applications, housed within a compact 15-inch by 8-7/8-inch enclosure weighing 13.067 lb. The unit is CSA Certified and UL Listed, with a 200kA interrupting capacity at 480V, ensuring compliance with rigorous safety standards for use in manufacturing plants, data centers, and other facilities requiring reliable feeder protection.

Key Features & Specifications
  • Type: PQ Series fusible disconnect bus plug for I-Line busway systems
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Phase: 3
  • AIC Rating: 200kA @ 480V
  • Fuse Class: Compatible with Class H, K, J, and R fuses
  • Wire: 3-wire configuration
  • Dimensions: 15 in x 8-7/8 in (381 mm x 225 mm)
  • Weight: 13.067 lb (5.93 kg)
  • Certification: CSA Certified, UL Listed
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 078590126391
  • GTIN: 00785901263913
