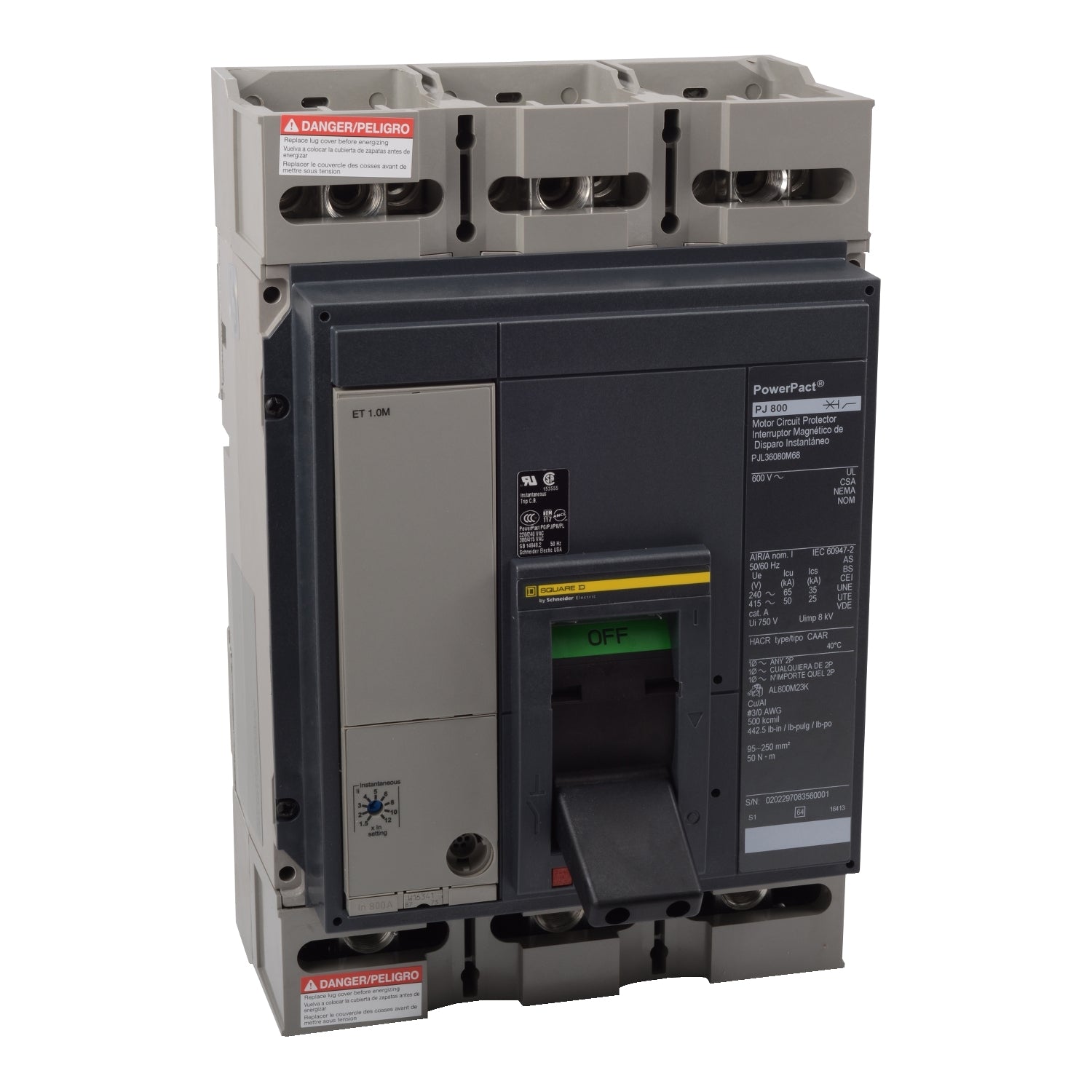

Square D PJL36120U64AE1 - Molded Case Circuit Breaker 1200A 600V
Square D PJL36120U64AE1 - Molded Case Circuit Breaker 1200A 600V

Square D PJL36120U64AE1 - Molded Case Circuit Breaker 1200A 600V

Square D
Price
Save $16,313.82
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
The Square D PJL36120U64AE1 is a Powerpact molded case circuit breaker from Schneider Electric, designed to provide comprehensive LSIG protection (Long-Time, Short-Time, Instantaneous, and Ground Fault) for industrial power distribution systems. This 3-pole, 1200A rated breaker operates at 600VAC with a 65kA interrupting capacity at 480V, utilizing solid-state trip technology for precise overcurrent protection. The unit features a feed-thru connection, accommodates wire sizes from 4 x AWG 3/0 to 500 kcmil (aluminum/copper), and measures 16.16 in x 8.27 in x 8.05 in (H x W x D) with a weight of 39.45 lb. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, making it suitable for heavy-duty industrial applications requiring reliable fault isolation and system coordination.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Powerpact family, solid-state trip
  • Voltage Rating: 600VAC
  • Current Rating: 1200A
  • Dimensions: 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, motor control centers, switchboards
  • Poles: 3
  • Phase: 3
  • Connection: Feed-Thru
  • AIC Rating: 65kA@480V
  • Protection: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
  • Wire Size: 4 x AWG 3/0...500 kcmil aluminium/copper
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Feed-Thru
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-Phase
  • Breaker Frame: Powerpact
  • Trip Type: Solid State
  • Installation Type: Panel Mount
  • Item QTY: 1
  • Country of Origin: Mexico


Product Identification
  • UPC: 3.60649E+12
